Components [05/2023 - ]

Fig 1: Front Console Box Replacement Components [05/2023 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR SEAT CUSHION ASSEMBLY	*2	REAR SEAT CUSHION LOCK HOOK
•	Non-reusable part	-	-

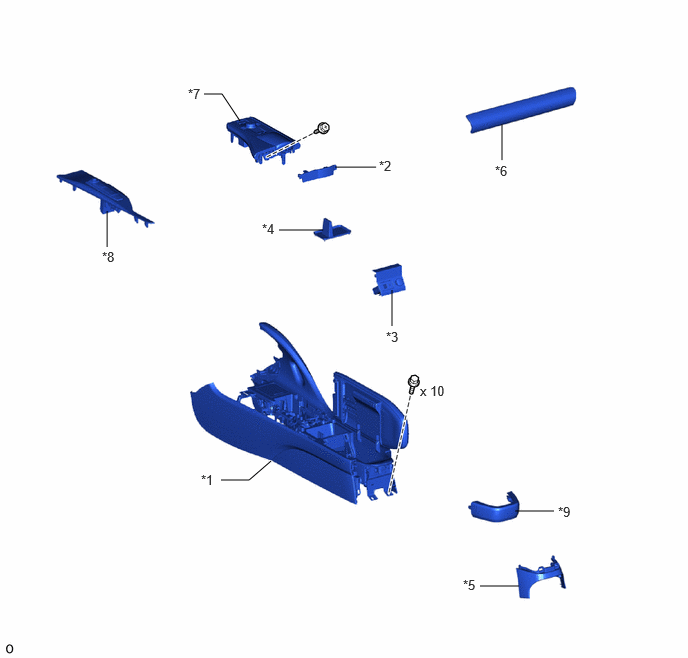

Fig 2: Front Console Box Replacement Components [05/2023 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CONSOLE BOX ASSEMBLY	*2	CONSOLE PLATE
*3	EQUIPMENT SET PANEL	*4	EQUIPMENT SET PANEL COVER
*5	LOWER CONSOLE BOX	*6	NO. 1 GLOVE COMPARTMENT PANEL
*7	RADIO REMOTE TUNING SWITCH ASSEMBLY	*8	SHIFTING HOLE COVER ASSEMBLY
*9	UPPER CONSOLE BOX	-	-

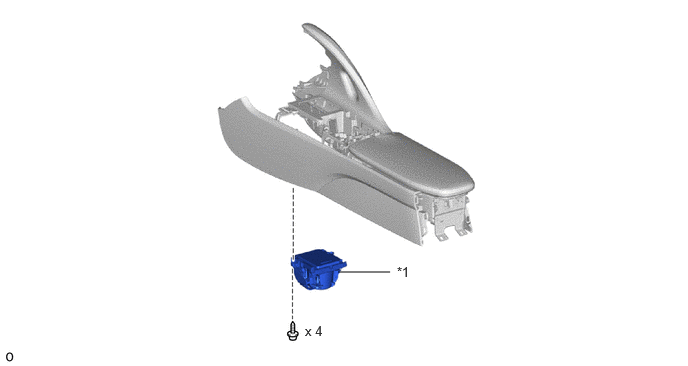

Fig 3: Front Console Box Replacement Components [05/2023 - ] (3 Of 4)

INSTRUMENT PANEL CUP HOLDER ASSEMBLY

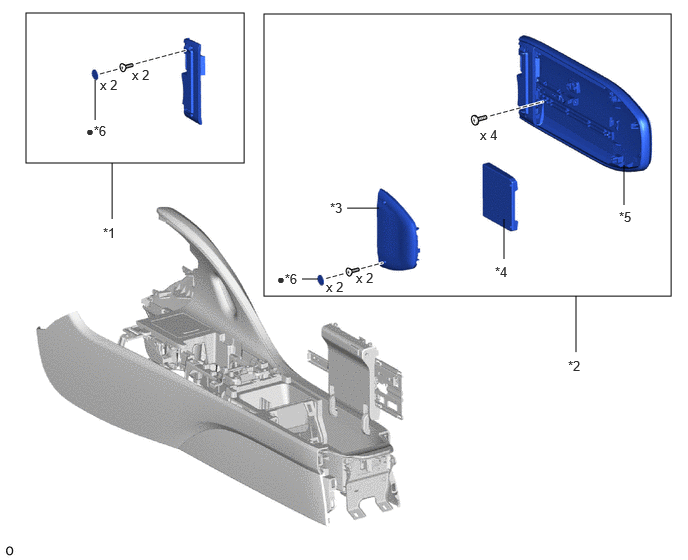

Fig 4: Front Console Box Replacement Components [05/2023 - ] (4 Of 4)

*1	CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY	*2	CONSOLE COMPARTMENT DOOR PAD SUB-ASSEMBLY
*3	REAR UPPER CONSOLE PANEL	*4	NO. 2 CONSOLE BOS HOLE COVER
*5	CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY	*6	NO. 1 REAR SEAT CONSOLE TABLE PLUG
•	Non-reusable part	-	-
