On-Vehicle Inspection [03/2017 - ]: Procedure
- INSPECT AND ADJUST FLUID LEVEL IN RESERVOIR (When Using the Techstream)
- Connect the Techstream to the DLC3 with the engine switch off.
- Check that park (P) is selected and the parking brake is applied, and turn the engine switch on (IG).
- Turn the Techstream on and enter the following menus: Chassis / ABS/VSC/TRAC / Utility / ECB (Electronically Controlled Brake system) Utility / Zero Down.
Chassis > ABS/VSC/TRAC > Utility
Tester Display ECB Utility - When Accumulator Zero Down Drive is complete and all brake fluid has returned to the reservoir, adjust the brake fluid volume so that the brake fluid level in the reservoir becomes the MAX line.

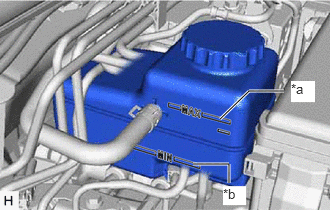

*a MAX Line *b MIN Line Brake Fluid
SAE J1703 or FMVSS No. 116 DOT3
- Turn the Techstream off and turn the engine switch off.
- Disconnect the Techstream from the DLC3.
- INSPECT AND ADJUST FLUID LEVEL IN RESERVOIR (When Not Using the Techstream)
- Turn the engine switch on (IG) and depress the brake pedal 4 or 5 times to operate the pump motor.
- When the pump motor stops, adjust the brake fluid volume so that the brake fluid level in the reservoir becomes the fluid level support line position.

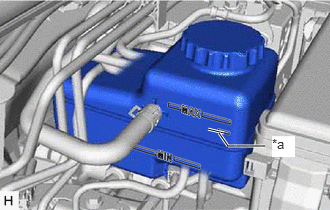

*a Fluid Level Support Line Brake Fluid
SAE J1703 or FMVSS No. 116 DOT3
HINT:
The fluid level support line is between the MAX line and MIN line.
