Installation [03/2017 - ]: Procedure

  1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY
    1. Attach the claw to install the power window regulator switch assembly to the No. 2 switch base.
      GTY836697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

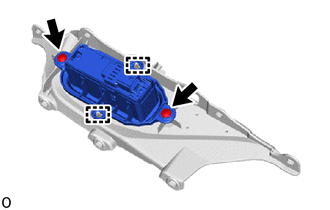

    2. Attach the guide to install the No. 2 switch base to the No. 1 switch base.
      GTY818029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 screws.

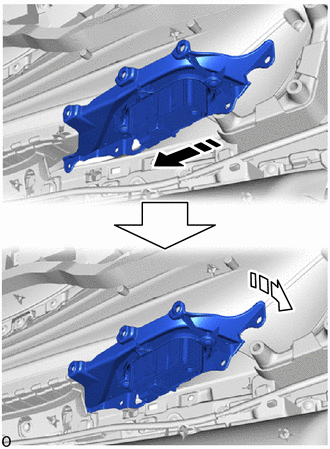

    4. Install the No. 1 switch base as shown in the illustration.
      GTY782350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)

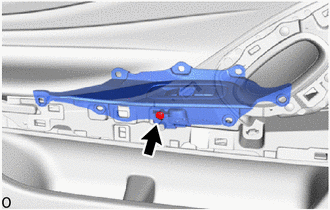

    5. Install the screw of the face of the front door trim board sub-assembly RH.
      GTY817680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

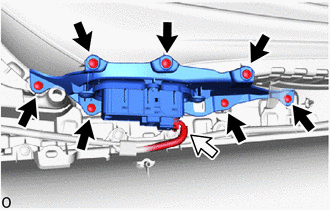

    6. Install the 7 screws of the backside of the front door trim board sub-assembly RH.
      GTY824657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Connect the connector.
  2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 43 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 43 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 43 [04/2020 - 05/2023] , or refer to REASSEMBLY [05/2023 - ]

  3. INSTALL FRONT DOOR ASSIST GRIP ASSEMBLY RH

    Refer to PROCEDURE - Step 45 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 45 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 45 [04/2020 - 05/2023] , or refer to REASSEMBLY [05/2023 - ]
