Removal [03/2017 - ]: Procedure

  1. REMOVE FRONT DOOR TRIM COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 4 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 4 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 4 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 4 [05/2023 - ]

  2. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 6 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 6 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 6 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 6 [05/2023 - ]

  3. REMOVE SEAT MEMORY SWITCH

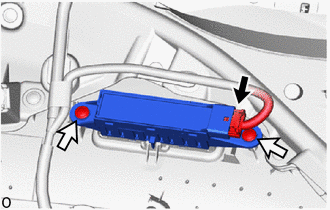

    1. Disconnect the connector.
      GTY817620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Screw
    2. Remove the 2 screws.

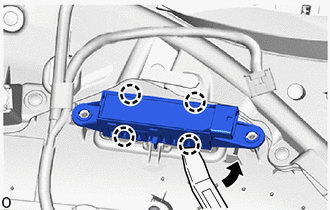

    3. Using moulding remover A, push in the direction indicated by the arrow shown in the illustration, detach the claws and remove the seat memory switch.
      GTY824563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

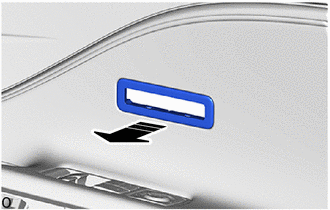

    4. Remove the bracket from the front door trim board sub-assembly LH.
      GTY829558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
