Installation [03/2017 - ]: Procedure

  1. INSTALL SEAT MEMORY SWITCH

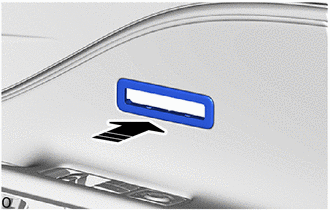

    1. Set the bracket on the front door trim board sub-assembly LH.
      GTY779588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

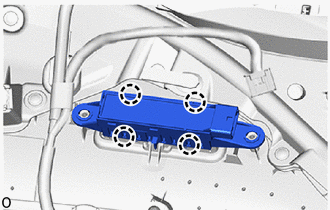

    2. Attach the claws and install the seat memory switch.
      GTY824565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

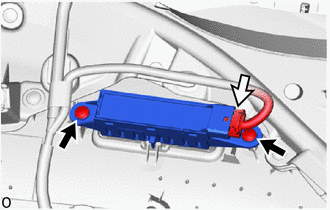

    3. Install the 2 screws.
      GTY838551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Connector
    4. Connect the connector.
  2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 39 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 39 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 39 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 39 [05/2023 - ]

  3. INSTALL FRONT DOOR TRIM COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 41 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 41 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 41 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 41 [05/2023 - ]
