Removal [03/2017 - ]: Procedure

  1. REMOVE FRONT DOOR TRIM COVER SUB-ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 4 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 4 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 4 [04/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]

  2. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 6 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 6 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 6 [04/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]

  3. REMOVE FRONT DOOR ASSIST GRIP ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 8 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 8 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 8 [04/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]

  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 10 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 10 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 10 [04/2020 - 05/2023] , or refer to DISASSEMBLY [05/2023 - ]

  5. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH

    Refer to PROCEDURE - Step 20 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 20 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 20 [04/2020 - 05/2023] , or refer to PROCEDURE - Step 20 [05/2023 - ]

  6. REMOVE FRONT DOOR FRONT LOWER FRAME UPPER COVER LH
    1. Remove the nut.

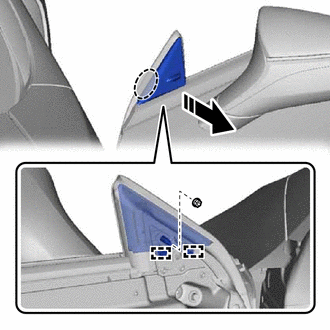

      GTY824655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
    2. Place your hand at the position shown in the illustration, pull to detach the guides and remove the front door front lower frame upper cover LH.
