Removal [03/2017 - ]: Procedure

  1. REMOVE REAR COMBINATION LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

    Refer to REMOVAL [03/2017 - ]

  2. REMOVE LUGGAGE ELECTRICAL KEY SWITCH
    1. Detach the connector clamp and disconnect the connector.

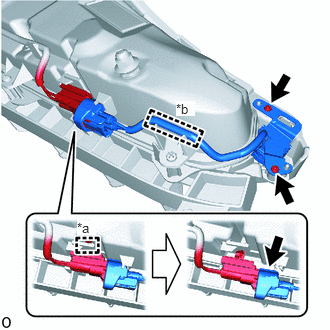

      GTY790629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connector Clamp
      *b Wire Harness Clamp
    2. Detach the wire harness clamp.
    3. Remove the 2 screws and luggage electrical key switch.
