Disassembly [03/2017 - ]: Procedure

  1. REMOVE HOOD INSULATOR
    1. Remove the 15 clips and hood insulator.

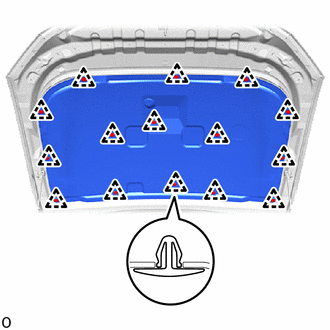

      GTY800334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE HOOD TO RADIATOR SUPPORT SEAL
    1. Using a clip remover, remove the 9 clips and hood to radiator support seal.

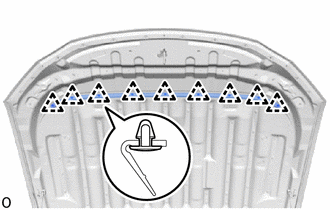

      GTY800335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HOOD TO RADIATOR SUPPORT SEAL LH
    1. Using a clip remover, remove the 3 clips and hood to radiator support seal LH.

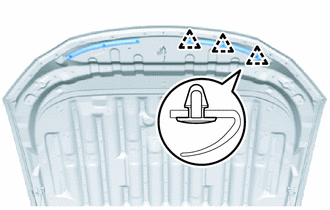

      GTY800318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE HOOD TO RADIATOR SUPPORT SEAL RH

    HINT:

    Use the same procedure described for the LH side.
