Components [03/2017 - ]

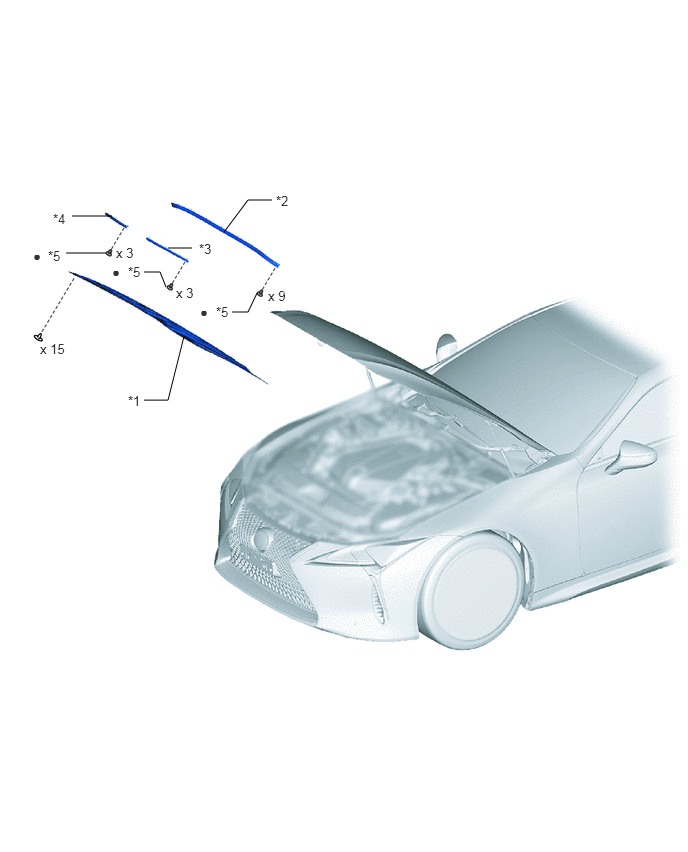

Fig 1: Hood Replacement Components
GTY831055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HOOD INSULATOR *2 HOOD TO RADIATOR SUPPORT SEAL
*3 HOOD TO RADIATOR SUPPORT SEAL LH *4 HOOD TO RADIATOR SUPPORT SEAL RH
*5 HOOD TO COWL TOP SEAL CLIP - -
• Non-reusable part - -
