Hood Support
>>
Components [03/2017 - ]
Components [03/2017 - ]

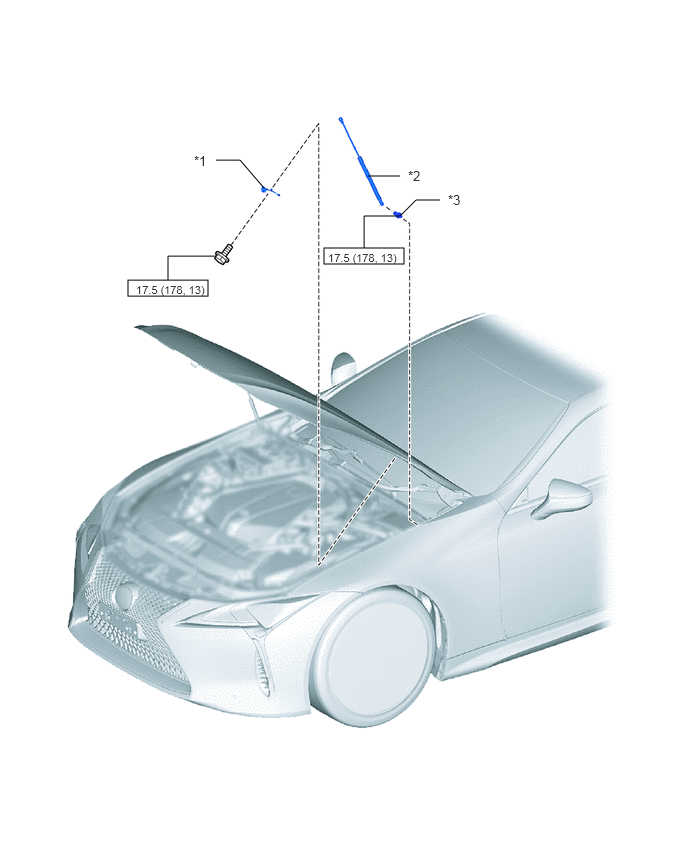

Fig 1: Hood Support Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
HOOD STAY BRACKET LH
*2
HOOD SUPPORT ASSEMBLY LH
*3
NO. 1 HOOD SUPPORT BOLT
-
-
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
