Removal [03/2017 - ]: Procedure

  1. REMOVE COURTESY LIGHT ASSEMBLY
    1. For LH Side:

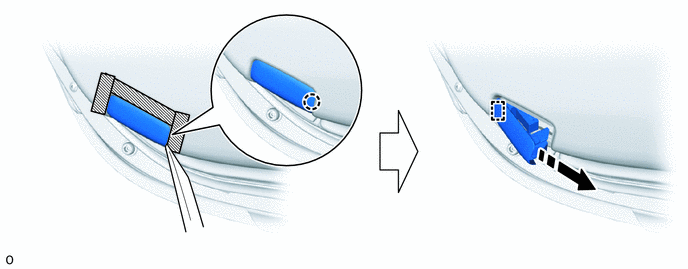

      1. Apply protective tape around the courtesy light assembly.
      2. Insert moulding remover A between the courtesy light assembly and front door trim board from the front of the vehicle and detach the claw.
      3. Pull out the courtesy light assembly to detach the hook.
        GTY798703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction - -

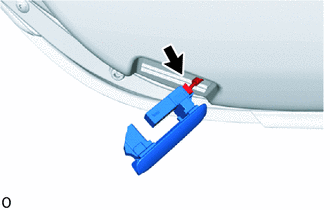

      4. Disconnect the connector.
        GTY811345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. For RH Side:

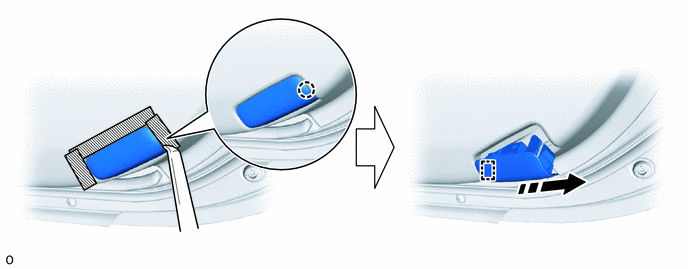

      1. Apply protective tape around the courtesy light assembly.
      2. Insert moulding remover A between the courtesy light assembly and front door trim board from the rear of the vehicle and detach the claw.
      3. Pull out the courtesy light assembly to detach the hook.
        GTY787914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction - -

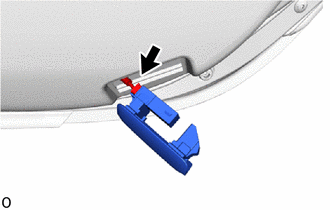

      4. Disconnect the connector.
        GTY788054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
