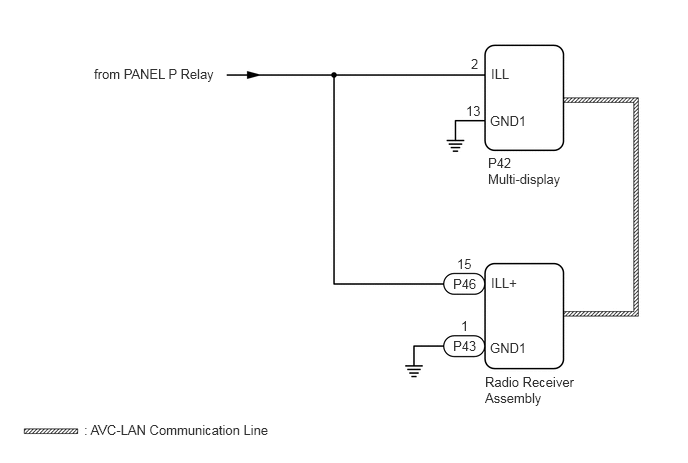

Display does not Dim when Light Control Switch is Turned ON [03/2017 - 04/2020]: Wiring Diagram

GTY816359

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
