DTC B15C3: Speaker Output Short [04/2020 - 10/2022]: Wiring Diagram

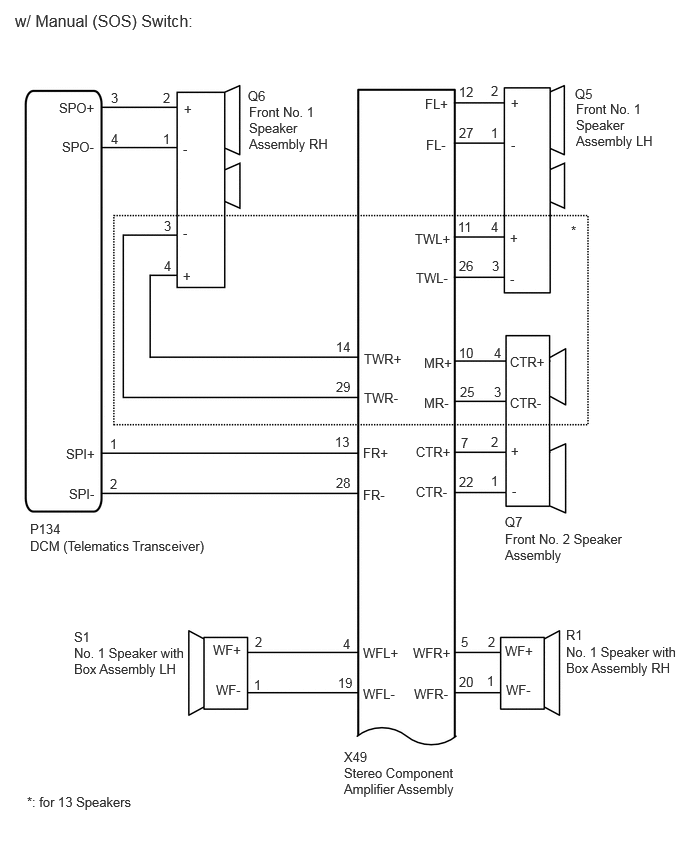

GTY960530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

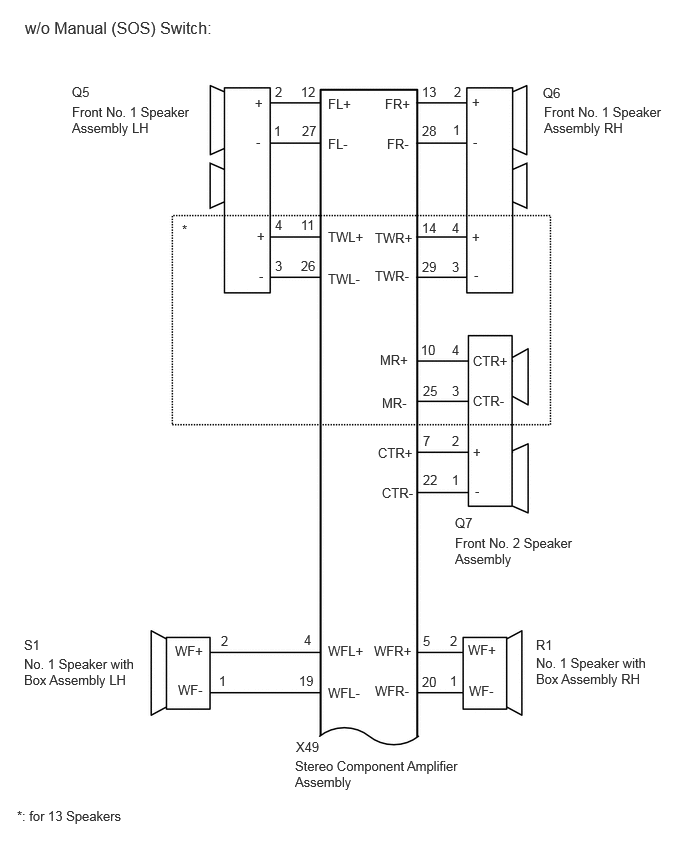

GTY959891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

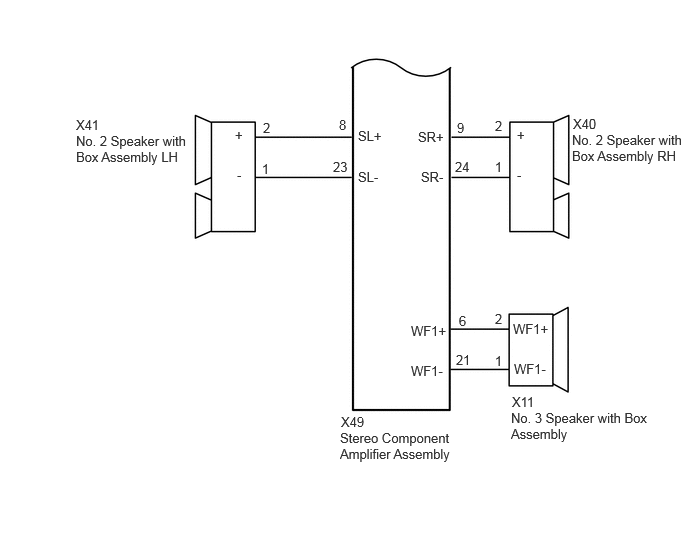

GTY959570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
