Removal [03/2017 - ]: Procedure

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

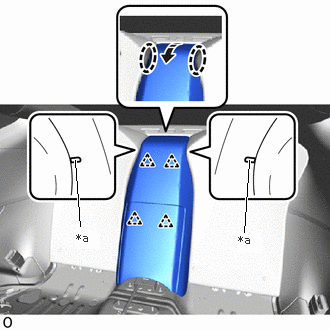

1. Using the marking as a guide, insert your hand in the gap between the seatback and vehicle as shown in the illustration and while pulling toward the front of the vehicle, detach the clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Marking
   	Place Hands Here
   	Remove in this Direction

   NOTE:

   At this time, the rear seat side garnish may be damaged if it is pulled toward the front of the vehicle with excessive force as the interior strap is still installed.

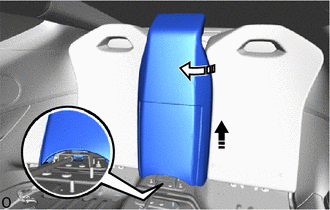

2. Move the rear seat side garnish in the direction of the arrow shown in the illustration and remove the insertion point from the No. 2 rear seat cushion spring.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Remove in this Direction (1)
   	Remove in this Direction (2)

   NOTE:

   At this time, the rear seat side garnish may be damaged if it is moved toward the roof of the vehicle with excessive force as the interior strap is still installed.

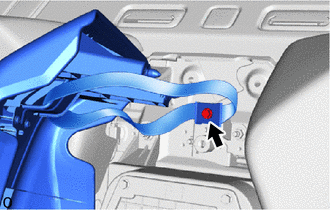

3. Remove the strap fixing bolt and rear seat side garnish.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

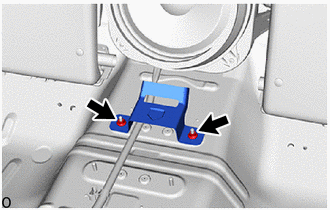

1. Remove the 2 nuts and No. 2 rear seat cushion spring.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 5

Refer to PROCEDURE - Step 6

Refer to PROCEDURE - Step 7

1. for 12 Speakers:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Nut
   	Connector

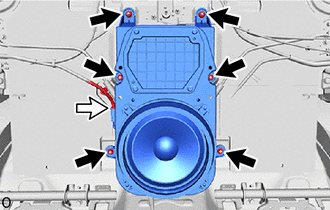

   1. Remove the 6 nuts.
   2. Disconnect the connector and remove the No. 3 speaker assembly with box.
2. for 13 Speakers:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Nut
   	Connector

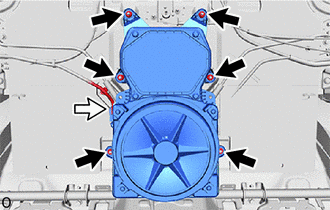

   1. Remove the 6 nuts.
   2. Disconnect the connector and remove the No. 3 speaker assembly with box.

1. for 12 Speakers:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

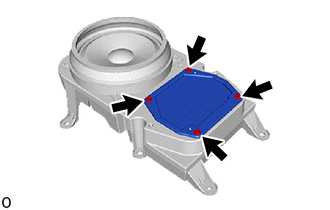

   1. Remove the 4 bolts and speaker mounting cover.
2. for 13 Speakers:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

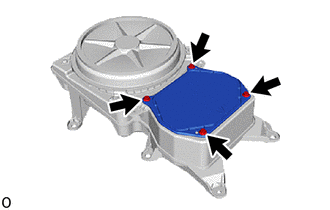

   1. Remove the 4 bolts and speaker mounting cover.
