Removal [03/2017 - 05/2023]: Procedure

REMOVE NO. 2 DECK BOARD
Refer to PROCEDURE - Step 11 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 12 [01/2021 - 05/2023]

PRECAUTION

WARNING:

Be sure to read Precaution thoroughly before servicing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PRECAUTION [03/2017 - 04/2020] , or refer to PRECAUTION [04/2020 - 05/2023]

NOTE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [03/2017 - 05/2023]

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Refer to PROCEDURE - Step 2

WARNING:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [03/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]

REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 16 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 16 [04/2020 - 05/2023]
REMOVE DRIVER SIDE JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU
Refer to REMOVAL [03/2017 - 05/2023]

REMOVE STOP LIGHT SWITCH ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

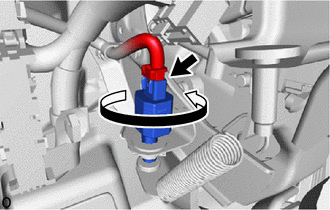

Disconnect the connector.

Turn the stop light switch assembly counterclockwise and remove it.

REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

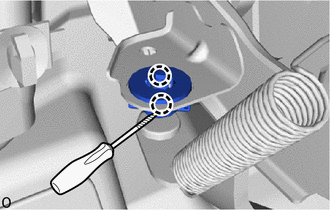

Using a screwdriver, detach the claw and remove the stop light switch mounting adjuster.

Protective Tape

NOTE:

The stop light switch mounting adjuster must not be reused.

HINT:

Tape the screwdriver tip before use.
