Removal [08/2021 - ]: Procedure

  1. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET

    Refer to REMOVAL [08/2021 - ]

  2. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
    1. Remove the 4 screws.

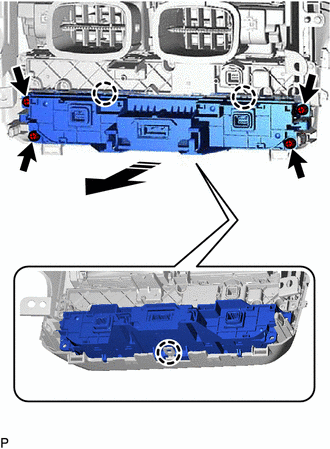

    2. GTY1083218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Detach the claws and remove the integration control and panel assembly from the multi-display assembly with bracket.

  3. REMOVE CENTER CLUSTER MODULE SWITCH (TRANSFER POSITION SWITCH)

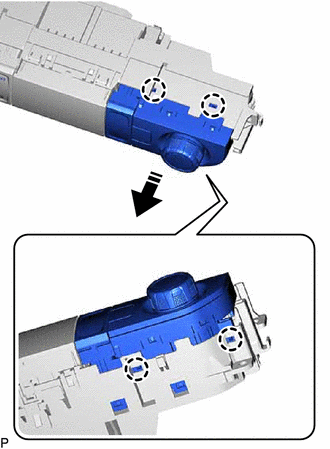

    1. GTY1083274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Detach the claw and remove the center cluster module switch (transfer position switch) from the integration control and panel assembly.
