Removal [07/2015 - ]: Procedure

CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)
1. Disable the auto away/return function by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [07/2015 - ] ).
  NOTE:
  Record the current customize parameter setting (whether the auto away/return function is enabled or disabled) in order to restore the current setting after finishing this operation.

  HINT:

  Performing the above operation disables the auto away/return function when the engine switch is turned off.
2. Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
3. Turn the engine switch off.
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
See step 4

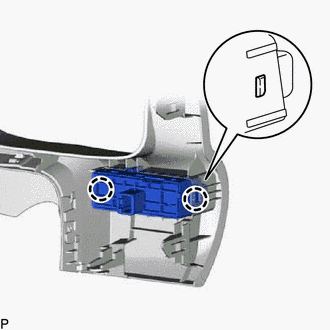

REMOVE TRIP SWITCH

Disengage the 2 claws and remove the trip switch.

GTY400049
