Removal [07/2015 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION [07/2015 - ]

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work. Refer to PRECAUTION [07/2015 - ]

  2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to REMOVAL [07/2015 - ] )

  3. DISCONNECT NO. 2 INSTRUMENT PANEL WIRE
    1. Check that the power switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

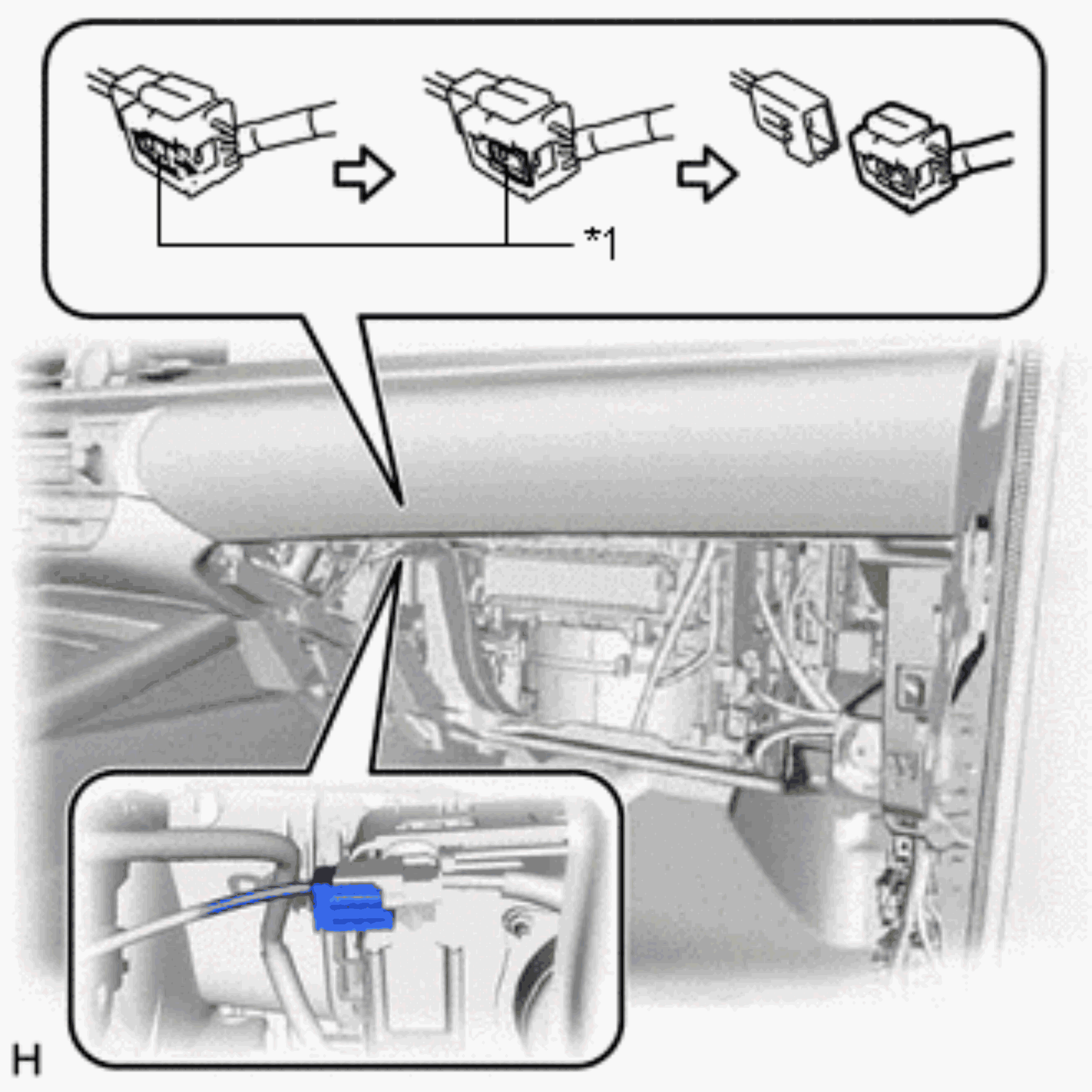

    3. Slide the slider to release the lock, and then disconnect the connector.
      GTY619650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Slider
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

  4. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

    Refer to PROCEDURE - Step 48

  5. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
    WARNING:

    When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.

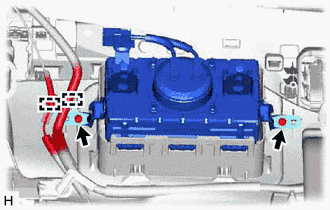

    1. Remove the 2 screws and disengage the 2 clamps.
      GTY411926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

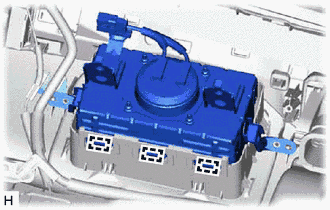

    2. Lean the instrument panel safety pad assembly and disengage the 3 hooks.
      GTY411927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

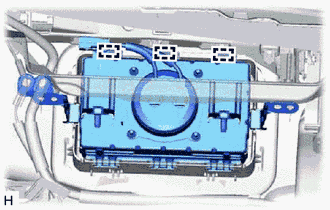

    3. Disengage the 3 hooks to remove the instrument panel passenger airbag assembly from the instrument panel safety pad assembly.
      GTY419425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 INSTRUMENT PANEL WIRE
    1. Disengage the clamp.
      GTY643194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

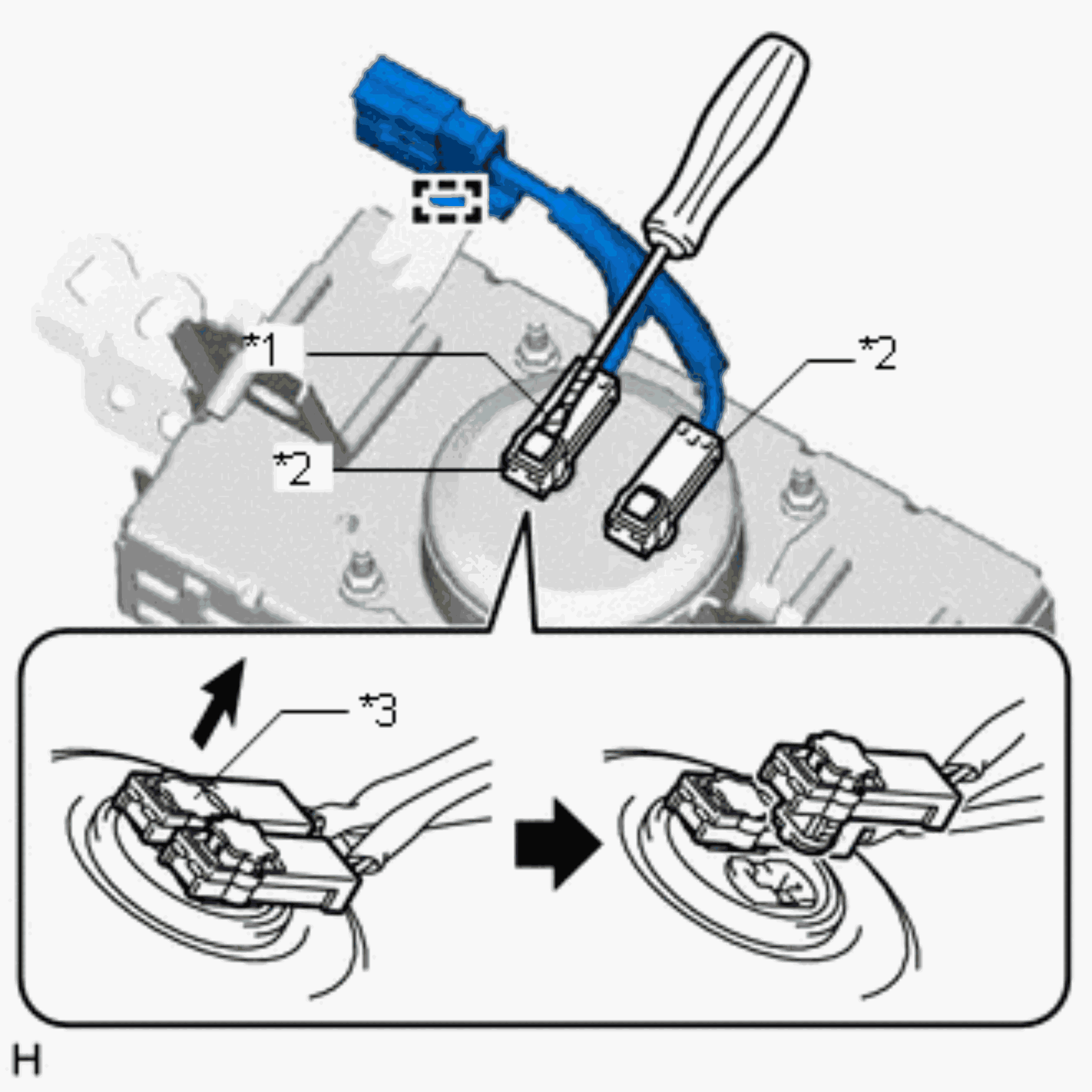

    2. Using a screwdriver with its tip wrapped with protective tape, release the 2 airbag connector locks.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      *2 Airbag Connector
      *3 Airbag Connector Lock
    3. Disconnect the 2 airbag connectors to remove the No. 2 instrument panel wire from the instrument panel passenger airbag assembly.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.
