Removal [07/2015 - ]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26

  2. REMOVE MULTI-DISPLAY ASSEMBLY

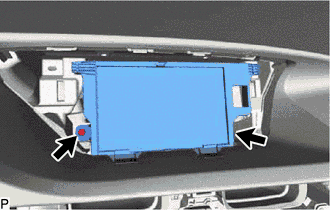

    1. Remove the 2 screws.
      GTY509366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

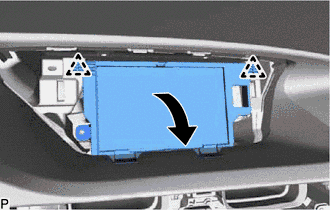

    2. Pull the multi-display assembly in the direction indicated by the arrow to disengage the 2 clips.
      GTY509368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector and remove the multi-display assembly.
