System Diagram [07/2015 - ]

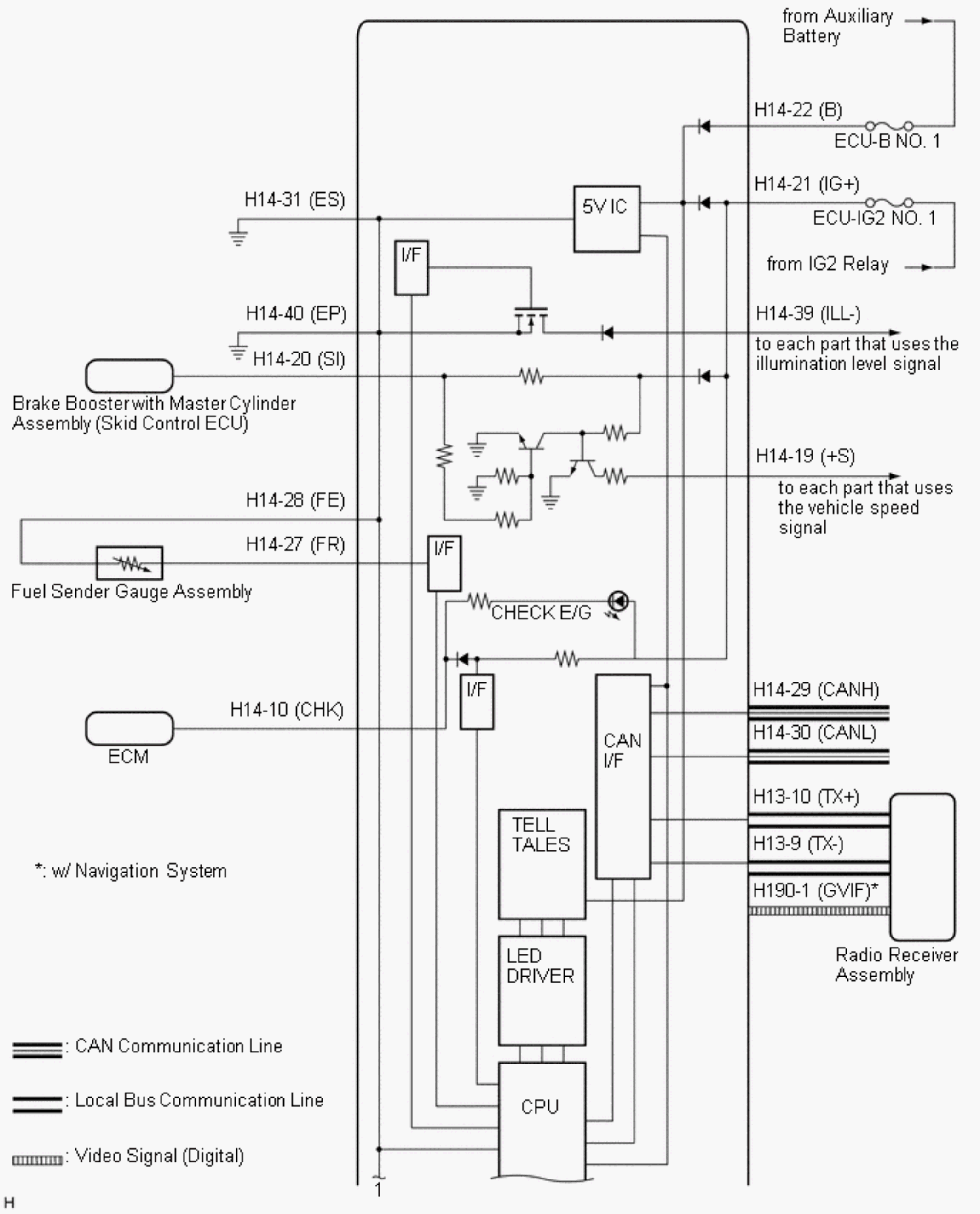

Fig 1: Meter / Guage System Wiring Diagram (1 Of 3)
GTY673309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

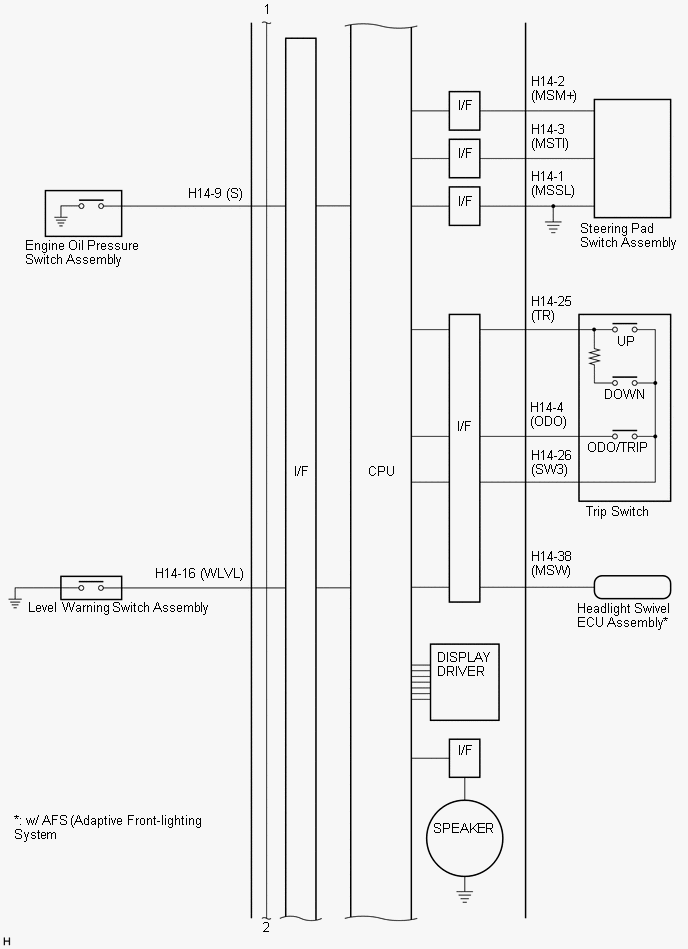

Fig 2: Meter / Guage System Wiring Diagram (2 Of 3)
GTY625983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

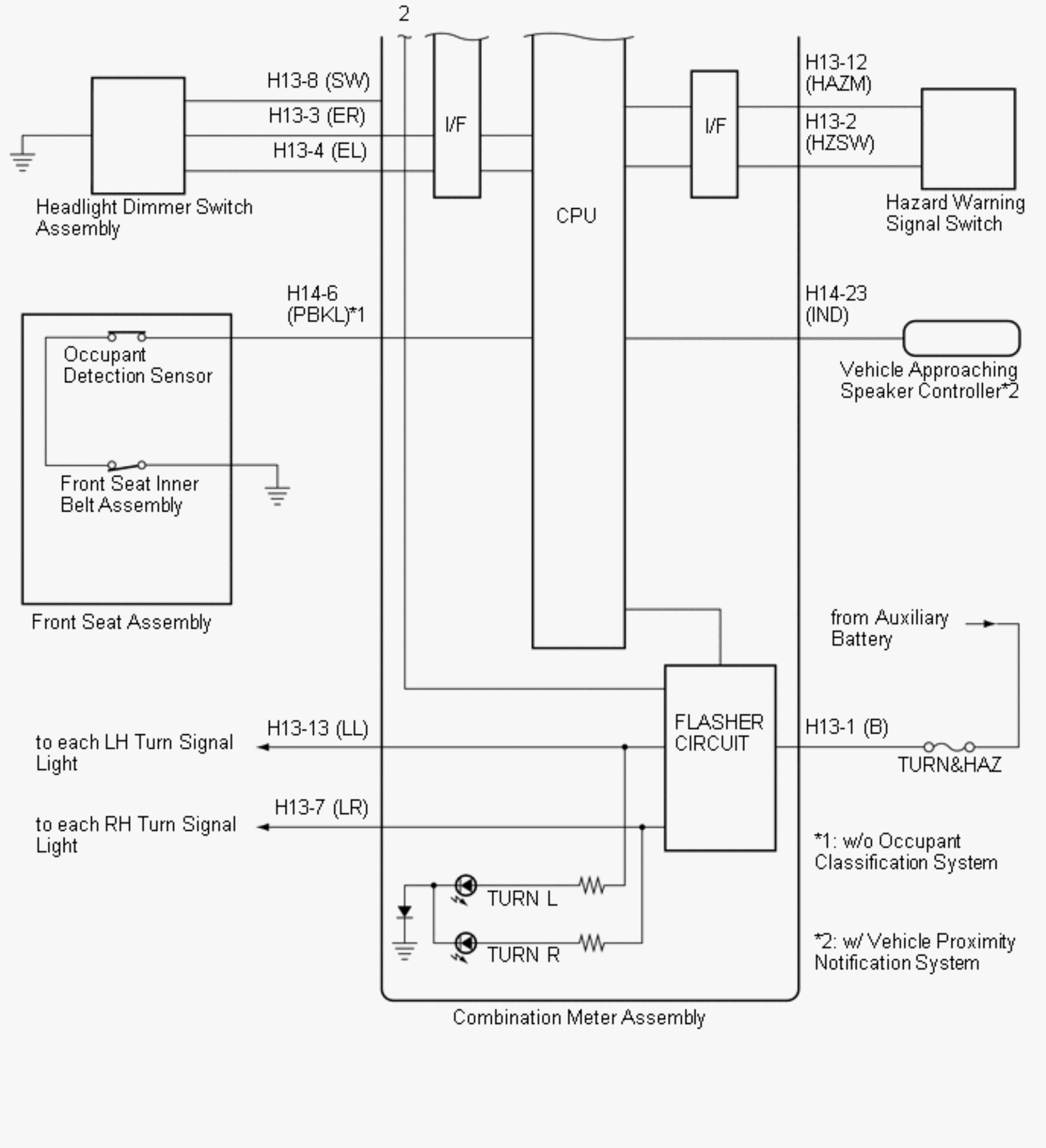

Fig 3: Meter / Guage System Wiring Diagram (3 Of 3)
GTY673950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
