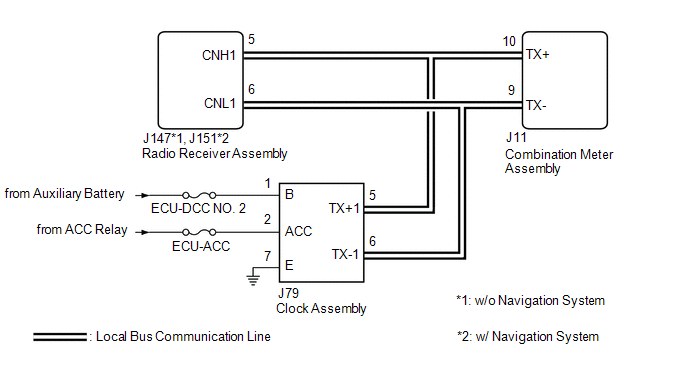

DTC B1326: Lost Communication with Clock Device (Local-CAN) [08/2019 - ]: Wiring Diagram

GTY960700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
