DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [09/2015 - 12/2017]: Wiring Diagram

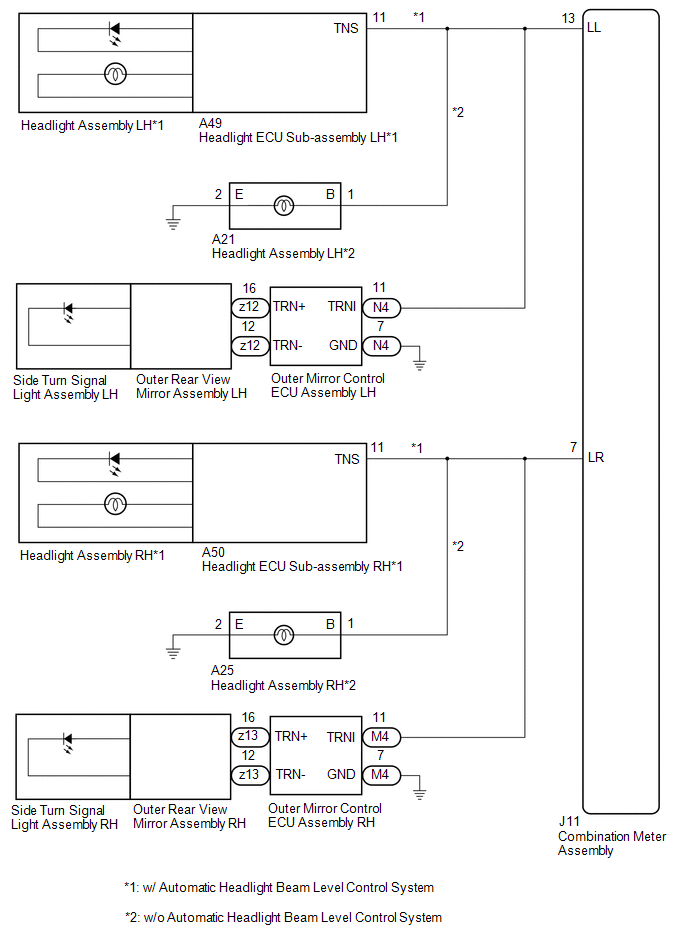

  1. for Front and Side Turn Signal Light
    GTY685615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

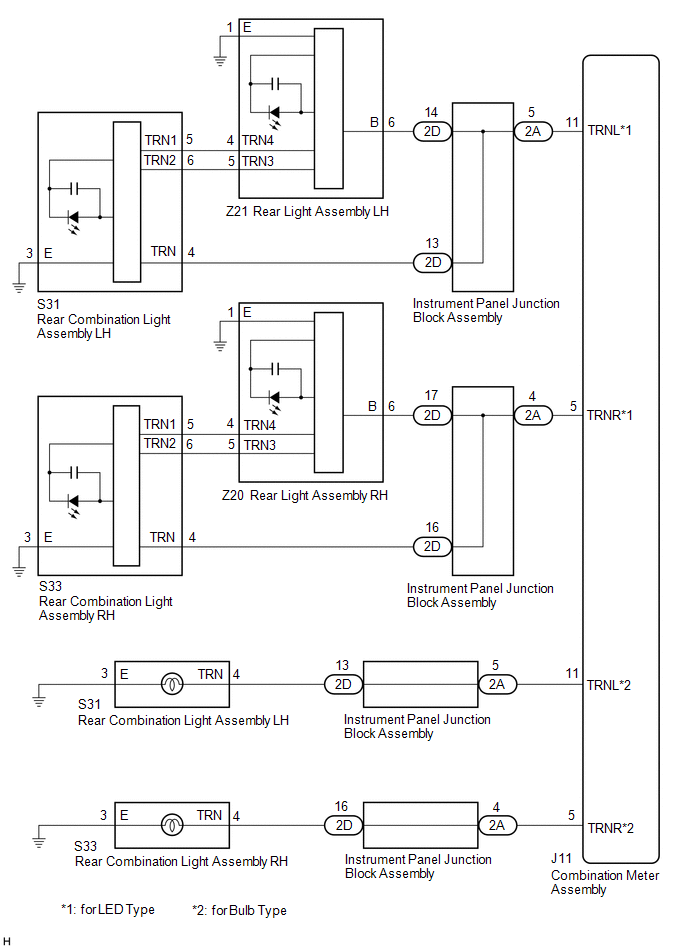

  2. for Rear Turn Signal Light
    GTY624985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
