DTC B1507: Open in Turn Signal Circuit [08/2019 - ]: Procedure

  1. CHECK SYMPTOMS
    1. Check the problem symptoms.

      Result

      Result Proceed to
      LH side front turn signal light does not blink A
      LH side rear turn signal light (rear combination light assembly side) does not blink B
      LH side rear turn signal light (rear light assembly side) does not blink C
      LH side rear turn signal light (rear combination light assembly and rear light assembly) does not blink D
      RH side front turn signal light does not blink E
      RH side rear turn signal light (rear combination light assembly) does not blink F
      LH side rear turn signal light (rear light assembly) does not blink G
      LH side rear turn signal light (rear combination light assembly and rear light assembly) does not blink H

    Result:

    B

    See step  13

    Result:

    C

    See step  15

    Result:

    D

    See step  18

    Result:

    E

    See step  19

    Result:

    F

    See step  30

    Result:

    G

    See step  32

    Result:

    H

    See step  35

    Result:

    A

    See step  2

  2. CONFIRM MODEL

    Result

    Result Proceed to
    w/o Automatic Headlight Beam Level Control System A
    w/ Automatic Headlight Beam Level Control System
    (for Bulb Type Front Turn Signal Light (for TMK Made))    		 B
    w/ Automatic Headlight Beam Level Control System
    (for Bulb Type Front Turn Signal Light (for TMMC Made))    		 C
    w/ Automatic Headlight Beam Level Control System
    (for LED Type Front Turn Signal Light (for TMK Made))    		 D
    w/ Automatic Headlight Beam Level Control System
    (for LED Type Front Turn Signal Light (for TMMC Made))    		 E

    Result:

    A

    See step  7

    Result:

    C

    See step  5

    Result:

    D

    See step  8

    Result:

    E

    See step  10

    Result:

    B

    See step  3

  3. INSPECT NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH

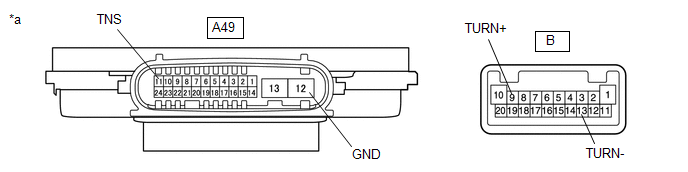

    GTY959339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (No. 1 Headlight ECU Sub-assembly LH)    		 - -
    1. Remove the No. 1 headlight ECU sub-assembly LH.

      Refer to REMOVAL [08/2019 - ]

    2. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A49-11 (TNS) - B-9 (TURN+) Always Below 1 Ω
      A49-12 (GND) - B-13 (TURN-) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [08/2019 - ]

    Result:

    OK

    See step  4

  4. CHECK LH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT UNIT LH)
    1. Remove the front turn signal light socket LH.

      Refer to DISASSEMBLY [08/2019 - ]

    2. Interchange the headlight unit LH with RH and connect the connectors.

      Refer to DISASSEMBLY [08/2019 - ]

    3. Connect the front turn signal light socket LH connectors.
    4. Connect the No. 1 headlight ECU sub-assembly LH connectors.
    5. Operate the turn signal switch and check that the LH side front turn signal light operates normally.

      HINT:

      If the LH side front turn signal light operates normally, the headlight unit LH is malfunctioning.

      Result

      Result Proceed to
      LH side front turn signal light operates normally A
      Problem symptoms do not change
      (LH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT UNIT LH. Refer to  DISASSEMBLY [08/2019 - ]

    Result:

    B

    See step  7

  5. INSPECT NO. 1 HEADLIGHT ECU SUB-ASSEMBLY (HEADLAMP ASSEMBLY LH)
    GTY959339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (No. 1 Headlight ECU Sub-assembly (Headlight Assembly LH))    		 - -
    1. Remove the No. 1 headlight ECU sub-assembly (headlight assembly LH).

      Refer to REMOVAL [08/2019 - ]

    2. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A49-11 (TNS) - B-9 (TURN+) Always Below 1 Ω
      A49-12 (GND) - B-13 (TURN-) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ASSEMBLY LH. Refer to  REMOVAL [08/2019 - ]

    Result:

    OK

    See step  6

  6. CHECK LH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT UNIT (HEADLIGHT ASSEMBLY LH))
    1. Remove the front turn signal light socket LH.

      Refer to DISASSEMBLY [08/2019 - ]

    2. Interchange the headlight unit (headlight assembly LH with RH) and connect the connectors.

      Refer to DISASSEMBLY [08/2019 - ]

    3. Connect the front turn signal light socket LH connectors.
    4. Connect the No. 1 headlight ECU sub-assembly (headlight assembly LH) connectors.
    5. Operate the turn signal switch and check that the LH side front turn signal light operates normally.

      HINT:

      If the LH side front turn signal light operates normally, the headlight unit (headlight assembly LH) is malfunctioning.

      Result

      Result Proceed to
      LH side front turn signal light operates normally A
      Problem symptoms do not change
      (LH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT ASSEMBLY LH. Refer to  REMOVAL [08/2019 - ]

    Result:

    B

    See step  7

  7. CHECK LH SIDE FRONT TURN SIGNAL LIGHT (Front Turn Signal Light Socket LH)
    1. Interchange the front turn signal light socket LH with RH and connect the connectors.

      Refer to DISASSEMBLY [08/2019 - ]

    2. Operate the turn signal switch and check that the LH side front turn signal light operates normally.

      HINT:

      If the LH side front turn signal light operates normally, the front turn signal light socket LH is malfunctioning.

      Result

      Result Proceed to
      LH side front turn signal light operates normally A
      Problem symptoms do not change
      (LH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE FRONT TURN SIGNAL LIGHT SOCKET LH. Refer to  DISASSEMBLY [08/2019 - ]

    Result:

    B

    See step  12

  8. INSPECT NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH

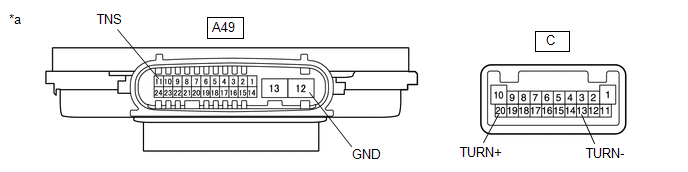

    GTY959320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (No. 1 Headlight ECU Sub-assembly LH)    		 - -
    1. Remove the No. 1 headlight ECU sub-assembly LH.

      Refer to REMOVAL [08/2019 - ]

    2. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A49-11 (TNS) - B-20 (TURN+) Always Below 1 Ω
      A49-12 (GND) - B-13 (TURN-) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [08/2019 - ]

    Result:

    OK

    See step  9

  9. CHECK LH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT UNIT LH)
    1. Interchange the headlight unit LH with RH and connect the connectors.

      Refer to DISASSEMBLY [08/2019 - ]

    2. Connect the No. 1 headlight ECU sub-assembly LH connectors.
    3. Operate the turn signal switch and check that the LH side front turn signal light operates normally.

      HINT:

      If the LH side front turn signal light operates normally, the headlight unit LH is malfunctioning.

      Result

      Result Proceed to
      LH side front turn signal light operates normally A
      Problem symptoms do not change
      (LH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT UNIT LH. Refer to  DISASSEMBLY [08/2019 - ]

    Result:

    B

    See step  12

  10. INSPECT NO. 1 HEADLIGHT ECU SUB-ASSEMBLY (HEADLIGHT ASSEMBLY LH)
    GTY959320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (No. 1 Headlight ECU Sub-assembly (Headlight Assembly LH))    		 - -
    1. Remove the No. 1 headlight ECU sub-assembly (headlight assembly LH).

      Refer to REMOVAL [08/2019 - ]

    2. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A49-11 (TNS) - B-20 (TURN+) Always Below 1 Ω
      A49-12 (GND) - B-13 (TURN-) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ASSEMBLY LH. Refer to  REMOVAL [08/2019 - ]

    Result:

    OK

    See step  11

  11. CHECK LH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT UNIT (HEADLIGHT ASSEMBLY LH))
    1. Interchange the headlight unit (headlight assembly LH with RH) and connect the connectors.

      Refer to DISASSEMBLY [08/2019 - ]

    2. Connect the No. 1 headlight ECU sub-assembly (headlight assembly LH) connectors.
    3. Operate the turn signal switch and check that the LH side front turn signal light operates normally.

      HINT:

      If the LH side front turn signal light operates normally, the headlight unit (headlight assembly LH) is malfunctioning.

      Result

      Result Proceed to
      LH side front turn signal light operates normally A
      Problem symptoms do not change
      (LH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT ASSEMBLY LH. Refer to  REMOVAL [08/2019 - ]

    Result:

    B

    See step  12

  12. CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the A21 *1 or A49 *2 headlight assembly LH connector.
    2. Disconnect the J11 combination meter assembly connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A21-11 (TNS) *1 or A49-11 (TNS) *2 - J11-13 (LL) Always Below 1 Ω
      A21-2 (E) - Body ground *1 Always Below 1 Ω
      A49-12 (GND) - Body ground Always Below 1 Ω
      1. *1: w/o Automatic Headlight Beam Level Control System
      2. *2: w/ Automatic Headlight Beam Level Control System

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [08/2019 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  13. INSPECT REAR COMBINATION LIGHT ASSEMBLY LH
    1. Remove the rear combination light assembly LH.

      w/ Rear No. 2 Seat: Refer to REMOVAL [08/2019 - ]

      w/o Rear No. 2 Seat: Refer to REMOVAL [08/2019 - ]

    2. Inspect the turn signal light in the rear combination light assembly LH.

      w/ Rear No. 2 Seat: Refer to INSPECTION [12/2017 - ]

      w/o Rear No. 2 Seat: Refer to INSPECTION [09/2015 - ]

      Result

      Result Proceed to
      OK A
      NG
      (for Bulb Type Rear Turn Signal Light)      		 B
      NG
      (for LED Type Rear Turn Signal Light)      		 C

    Result:

    B

    REPLACE REAR LIGHT CORD LH

    w/ Rear No. 2 Seat: Refer to DISASSEMBLY [08/2019 - ]

    w/o Rear No. 2 Seat: Refer to DISASSEMBLY [08/2019 - ]

    Result:

    C

    REPLACE REAR COMBINATION LIGHT ASSEMBLY LH

    w/ Rear No. 2 Seat: Refer to REMOVAL [08/2019 - ]

    w/o Rear No. 2 Seat: Refer to REMOVAL [08/2019 - ]

    Result:

    A

    See step  14

  14. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the S31 rear combination light assembly LH connector.
    2. Disconnect the J11 combination meter assembly connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      S31-4 (TRN) - J11-11 (TRNL) Always Below 1 Ω
      S31-3 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [08/2019 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  15. INSPECT REAR LGHT ASSEMBLY LH
    1. Remove the rear light assembly LH.

      Refer to REMOVAL [08/2019 - ]

    2. Inspect the turn signal light in the rear light assembly LH.

      Refer to INSPECTION [09/2015 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  17

    Result:

    OK

    See step  16

  16. CHECK HARNESS AND CONNECTOR (REAR LIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the Z21 rear light assembly LH connector.
    2. Disconnect the J11 combination meter assembly connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Z21-6 (B) - J11-11 (TRNL) Always Below 1 Ω
      Z21-1 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [08/2019 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  17. CHECK LH SIDE REAR TURN SIGNAL LIGHT (REAR LIGHT SOCKET AND WIRE LH)
    1. Interchange the rear light socket and wire LH with RH and connect the connectors.

      Refer to DISASSEMBLY [08/2019 - ]

    2. Operate the turn signal switch and check that the LH side rear turn signal light operates normally.

      HINT:

      If the LH side rear turn signal light operates normally, the rear light socket and wire LH is malfunctioning.

      Result

      Result Proceed to
      LH side rear turn signal light operates normally A
      Problem symptoms do not change
      (LH side rear turn signal light does not blink)      		 B

    Result:

    A

    REPLACE REAR LIGHT SOCKET AND WIRE LH. Refer to  DISASSEMBLY [08/2019 - ]

    Result:

    B

    REPLACE REAR LIGHT ASSEMBLY LH. Refer to  REMOVAL [08/2019 - ]

  18. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY LH AND REAR LIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the S31 rear combination light assembly LH connector.
    2. Disconnect the Z21 rear light assembly LH connector.
    3. Disconnect the J11 combination meter assembly connector.
    4. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      S31-4 (TRN) - J11-11 (TRNL) Always Below 1 Ω
      Z21-6 (B) - J11-11 (TRNL) Always Below 1 Ω
      S31-3 (E) - Body ground Always Below 1 Ω
      Z21-1 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [08/2019 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  19. CONFIRM MODEL

    Result

    Result Proceed to
    w/o Automatic Headlight Beam Level Control System A
    w/ Automatic Headlight Beam Level Control System
    (for Bulb Type Front Turn Signal Light (for TMK Made))    		 B
    w/ Automatic Headlight Beam Level Control System
    (for Bulb Type Front Turn Signal Light (for TMMC Made))    		 C
    w/ Automatic Headlight Beam Level Control System
    (for LED Type Front Turn Signal Light (for TMK Made))    		 D
    w/ Automatic Headlight Beam Level Control System
    (for LED Type Front Turn Signal Light (for TMMC Made))    		 E

    Result:

    A

    See step  24

    Result:

    C

    See step  22

    Result:

    D

    See step  25

    Result:

    E

    See step  27

    Result:

    B

    See step  20

  20. INSPECT NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH
    GTY959341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (No. 1 Headlight ECU Sub-assembly RH)    		 - -
    1. Remove the No. 1 headlight ECU sub-assembly RH.

      Refer to REMOVAL [08/2019 - ]

    2. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A50-11 (TNS) - D-9 (TURN+) Always Below 1 Ω
      A50-12 (GND) - D-13 (TURN-) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE NO. 1 HEADLAMP ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [08/2019 - ]

    Result:

    OK

    See step  21

  21. CHECK RH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT UNIT RH)
    1. Remove the front turn signal light socket RH.

      Refer to DISASSEMBLY [08/2019 - ]

    2. Interchange the headlight unit RH with LH and connect the connectors.

      Refer to DISASSEMBLY [08/2019 - ]

    3. Connect the front turn signal light socket RH connectors.
    4. Connect the No. 1 headlight ECU sub-assembly RH connectors.
    5. Operate the turn signal switch and check that the RH side front turn signal light operates normally.

      HINT:

      If the RH side front turn signal light operates normally, the headlight unit RH is malfunctioning.

      Result

      Result Proceed to
      RH side front turn signal light operates normally A
      Problem symptoms do not change
      (RH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT UNIT RH. Refer to  DISASSEMBLY [08/2019 - ]

    Result:

    B

    See step  24

  22. INSPECT HEADLAMP ECU SUB-ASSEMBLY (HEADLIGHT ASSEMBLY RH)
    GTY959341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (No. 1 Headlight ECU Sub-assembly (Headlight Assembly RH))    		 - -
    1. Remove the No. 1 headlight ECU sub-assembly (headlight assembly RH).

      Refer to REMOVAL [08/2019 - ]

    2. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A50-11 (TNS) - D-9 (TURN+) Always Below 1 Ω
      A50-12 (GND) - D-13 (TURN-) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ASSEMBLY RH. Refer to  REMOVAL [08/2019 - ]

    Result:

    OK

    See step  23

  23. CHECK RH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT UNIT (HEADLIGHT ASSEMBLY RH))
    1. Remove the front turn signal light socket RH.

      Refer to DISASSEMBLY [08/2019 - ]

    2. Interchange the headlight unit (headlight assembly RH with LH) and connect the connectors.

      Refer to DISASSEMBLY [08/2019 - ]

    3. Connect the front turn signal light socket RH connectors.
    4. Connect the No. 1 headlight ECU sub-assembly (headlight assembly RH) connectors.
    5. Operate the turn signal switch and check that the RH side front turn signal light operates normally.

      HINT:

      If the RH side front turn signal light operates normally, the headlight unit (headlight assembly RH) is malfunctioning.

      Result

      Result Proceed to
      RH side front turn signal light operates normally A
      Problem symptoms do not change
      (RH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT ASSEMBLY RH. Refer to  REMOVAL [08/2019 - ]

    Result:

    B

    See step  24

  24. CHECK RH SIDE FRONT TURN SIGNAL LIGHT (Front Turn Signal Light Socket RH)
    1. Interchange the front turn signal light socket RH with LH and connect the connectors.

      Refer to DISASSEMBLY [08/2019 - ]

    2. Operate the turn signal switch and check that the RH side front turn signal light operates normally.

      HINT:

      If the RH side front turn signal light operates normally, the front turn signal light socket RH is malfunctioning.

      Result

      Result Proceed to
      RH side front turn signal light operates normally A
      Problem symptoms do not change
      (RH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE FRONT TURN SIGNAL LIGHT SOCKET RH. Refer to  DISASSEMBLY [08/2019 - ]

    Result:

    B

    See step  29

  25. INSPECT NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH
    GTY959340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (No. 1 Headlight ECU Sub-assembly RH)    		 - -
    1. Remove the No. 1 headlight ECU sub-assembly RH.

      Refer to REMOVAL [08/2019 - ]

    2. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A50-11 (TNS) - E-20 (TURN+) Always Below 1 Ω
      A50-12 (GND) - E-13 (TURN-) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [08/2019 - ]

    Result:

    OK

    See step  26

  26. CHECK RH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT UNIT RH)
    1. Interchange the headlight unit RH with LH and connect the connectors.

      Refer to DISASSEMBLY [08/2019 - ]

    2. Connect the No. 1 headlight ECU sub-assembly RH connectors.
    3. Operate the turn signal switch and check that the RH side front turn signal light operates normally.

      HINT:

      If the RH side front turn signal light operates normally, the headlight unit RH is malfunctioning.

      Result

      Result Proceed to
      RH side front turn signal light operates normally A
      Problem symptoms do not change
      (RH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT UNIT RH. Refer to  DISASSEMBLY [08/2019 - ]

    Result:

    B

    See step  29

  27. INSPECT NO. 1 HEADLIGHT ECU SUB-ASSEMBLY (HEADLIGHT ASSEMBLY RH)
    GTY959340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (No. 1 Headlight ECU Sub-assembly (Headlight Assembly RH))    		 - -
    1. Remove the No. 1 headlight ECU sub-assembly (headlight assembly RH).

      Refer to REMOVAL [08/2019 - ]

    2. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A50-11 (TNS) - E-20 (TURN+) Always Below 1 Ω
      A50-12 (GND) - E-13 (TURN-) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ASSEMBLY RH. Refer to  REMOVAL [08/2019 - ]

    Result:

    OK

    See step  28

  28. CHECK RH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT UNIT (HEADLIGHT ASSEMBLY RH))
    1. Interchange the headlight unit (headlight assembly RH with LH) and connect the connectors.

      Refer to DISASSEMBLY [08/2019 - ]

    2. Connect the No. 1 headlight ECU sub-assembly (headlight assembly RH) connectors.
    3. Operate the turn signal switch and check that the RH side front turn signal light operates normally.

      HINT:

      If the RH side front turn signal light operates normally, the headlight unit (headlight assembly RH) is malfunctioning.

      Result

      Result Proceed to
      RH side front turn signal light operates normally A
      Problem symptoms do not change
      (RH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT ASSEMBLY RH. Refer to  REMOVAL [08/2019 - ]

    Result:

    B

    See step  29

  29. CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the A25 *1 or A50 *2 headlight assembly RH connector.
    2. Disconnect the J11 combination meter assembly connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A25-11 (TNS) *1 or A50-11 (TNS) *2 - J11-7 (LR) Always Below 1 Ω
      A25-2 (E) - Body ground *2 Always Below 1 Ω
      A50-12 (GND) - Body ground Always Below 1 Ω
      1. *1: w/o Automatic Headlight Beam Level Control System
      2. *2: w/ Automatic Headlight Beam Level Control System

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [08/2019 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  30. INSPECT REAR COMBINATION LIGHT ASSEMBLY RH
    1. Remove the rear combination light assembly RH.

      w/ Rear No. 2 Seat: Refer to REMOVAL [08/2019 - ]

      w/o Rear No. 2 Seat: Refer to REMOVAL [08/2019 - ]

    2. Inspect the turn signal light in the rear combination light assembly RH.

      w/ Rear No. 2 Seat: Refer to INSPECTION [12/2017 - ]

      w/o Rear No. 2 Seat: Refer to INSPECTION [09/2015 - ]

      Result

      Result Proceed to
      OK A
      NG
      (for Bulb Type Rear Turn Signal Light)      		 B
      NG
      (for LED Type Rear Turn Signal Light)      		 C

    Result:

    B

    REPLACE REAR LIGHT CORD RH

    w/ Rear No. 2 Seat: Refer to DISASSEMBLY [08/2019 - ]

    w/o Rear No. 2 Seat: Refer to DISASSEMBLY [08/2019 - ]

    Result:

    C

    REPLACE REAR COMBINATION LIGHT ASSEMBLY RH

    w/ Rear No. 2 Seat: Refer to REMOVAL [08/2019 - ]

    w/o Rear No. 2 Seat: Refer to REMOVAL [08/2019 - ]

    Result:

    A

    See step  31

  31. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the S33 rear combination light assembly RH connector.
    2. Disconnect the J11 combination meter assembly connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      S33-4 (TRN) - J11-5 (TRNR) Always Below 1 Ω
      S33-3 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [08/2019 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  32. INSPECT REAR LIGHT ASSEMBLY RH
    1. Remove the rear light assembly RH.

      Refer to REMOVAL [08/2019 - ]

    2. Inspect the turn signal light in the rear light assembly RH.

      Refer to INSPECTION [09/2015 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  34

    Result:

    OK

    See step  33

  33. CHECK HARNESS AND CONNECTOR (REAR LIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the Z20 rear light assembly RH connector.
    2. Disconnect the J11 combination meter assembly connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Z20-6 (B) - J11-5 (TRNR) Always Below 1 Ω
      Z20-1 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [08/2019 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  34. CHECK RH SIDE REAR TURN SIGNAL LIGHT (REAR LIGHT SOCKET AND WIRE RH)
    1. Interchange the rear light socket and wire RH with LH and connect the connectors.

      Refer to DISASSEMBLY [08/2019 - ]

    2. Operate the turn signal switch and check that the RH side rear turn signal light operates normally.

      HINT:

      If the RH side rear turn signal light operates normally, the rear light socket and wire RH is malfunctioning.

      Result

      Result Proceed to
      RH side rear turn signal light operates normally A
      Problem symptoms do not change
      (RH side rear turn signal light does not blink)      		 B

    Result:

    A

    REPLACE REAR LIGHT SOCKET AND WIRE RH. Refer to  DISASSEMBLY [08/2019 - ]

    Result:

    B

    REPLACE REAR LIGHT ASSEMBLY RH. Refer to  REMOVAL [08/2019 - ]

  35. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY RH AND REAR LIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the S33 rear combination light assembly RH connector.
    2. Disconnect the Z20 rear light assembly RH connector.
    3. Disconnect the J11 combination meter assembly connector.
    4. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      S33-4 (TRN) - J11-5 (TRNR) Always Below 1 Ω
      Z20-6 (B) - J11-5 (TRNR) Always Below 1 Ω
      S33-3 (E) - Body ground Always Below 1 Ω
      Z20-1 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [08/2019 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

scientia non olet · About LEMON Manuals
