DTC B15C3: Speaker Output Short [09/2014 - 11/2017]: Wiring Diagram

  1. for 10 Speakers

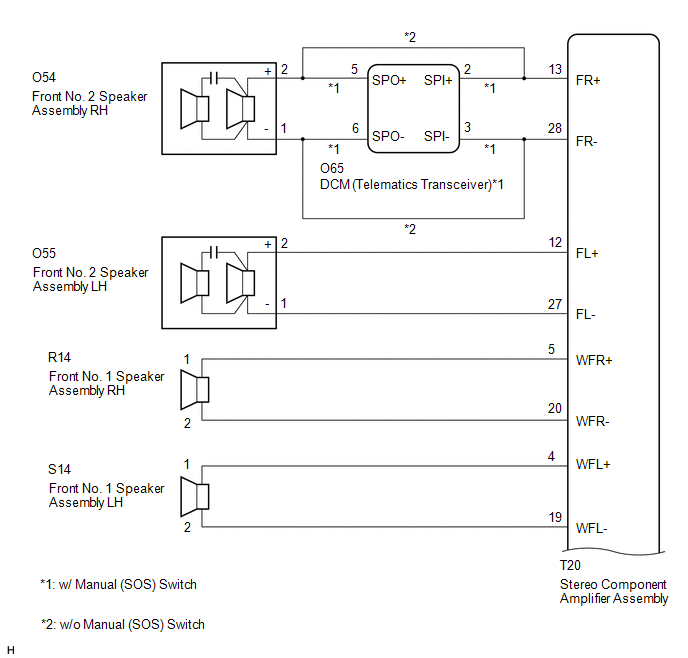

    GTY500064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

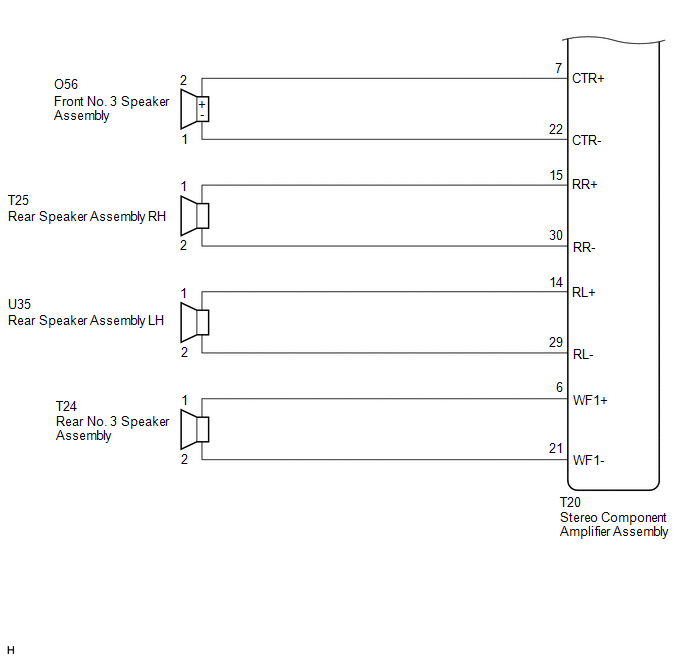

    GTY503276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 17 Speakers
    GTY500064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

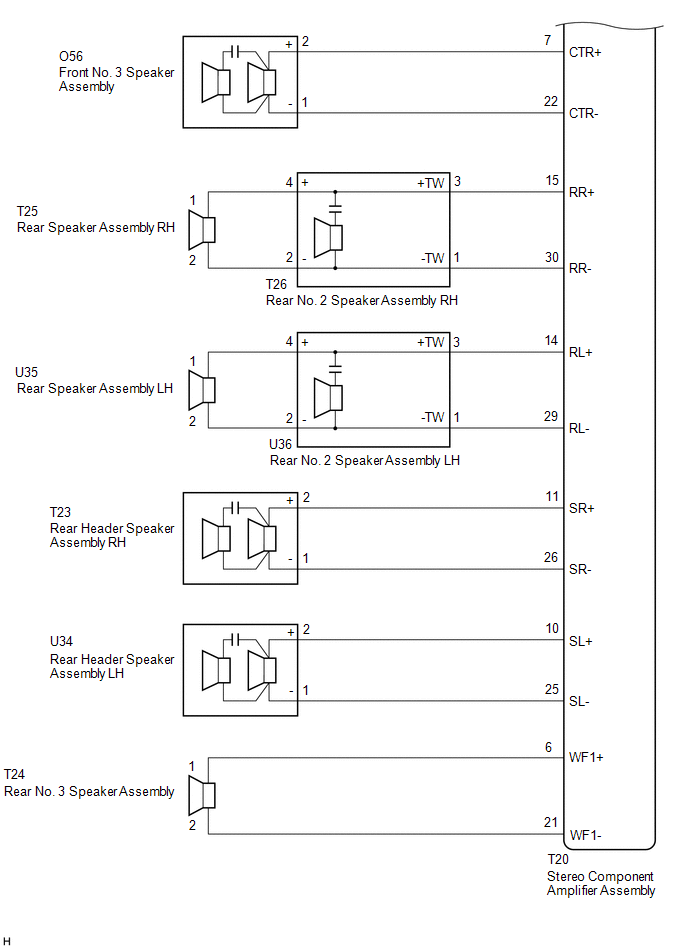

    GTY521709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
