Parts Location [09/2014 - 03/2019]: Illustration

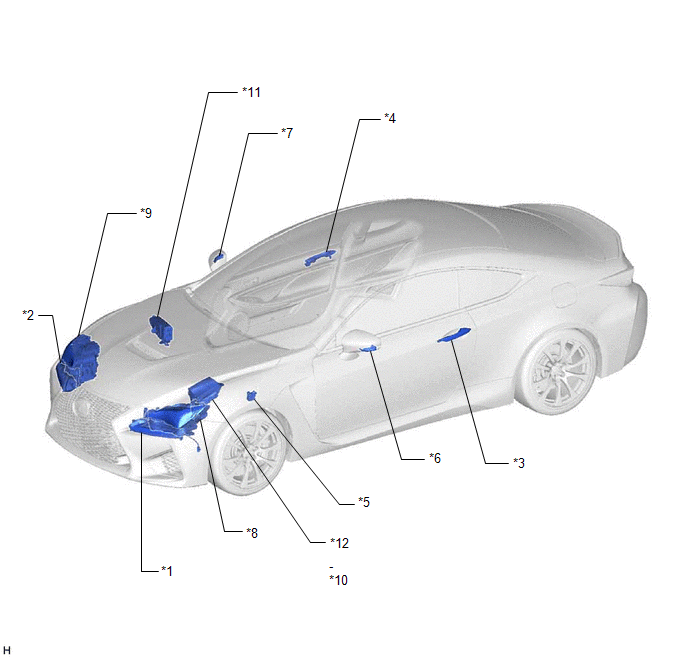

Fig 1: Lighting System (Single Beam Headlight) Components Location (1 Of 3) [09/2014 - 03/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CLEARANCE LIGHT ASSEMBLY LH	*2	CLEARANCE LIGHT ASSEMBLY RH
*3	FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH	*4	FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH
*5	PARK/NEUTRAL POSITION SWITCH ASSEMBLY	*6	SIDE TURN SIGNAL LIGHT ASSEMBLY LH
*7	SIDE TURN SIGNAL LIGHT ASSEMBLY RH	*8	HEADLIGHT ASSEMBLY LH - HEADLIGHT UNIT ASSEMBLY LH
*9	HEADLIGHT ASSEMBLY RH - HEADLIGHT UNIT ASSEMBLY RH	*10	SEMICONDUCTOR PWR INTEGRATION ECU
*11	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - P/I-AM FUSE - J/B LH-AM FUSE	*12	NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - STOP FUSE - H-LP RH-LO FUSE

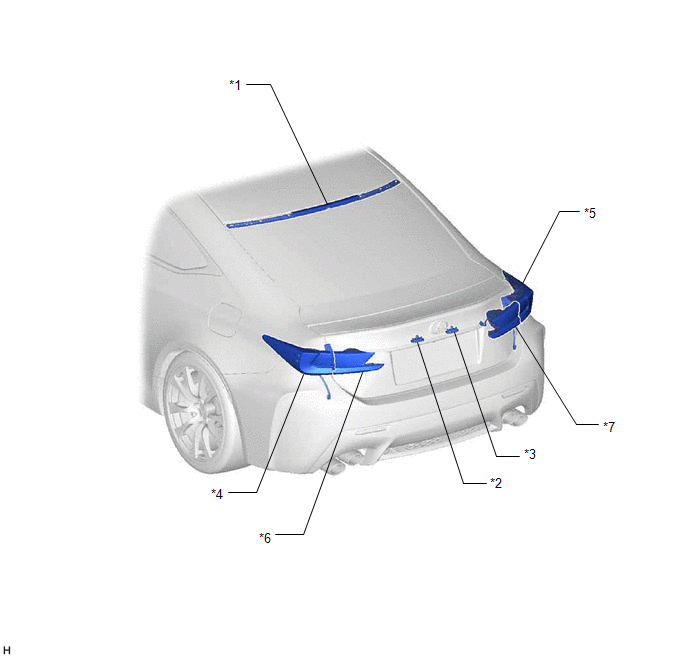

Fig 1: Lighting System (Single Beam Headlight) Components Location (2 Of 3) [09/2014 - 03/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER STOP LIGHT ASSEMBLY	*2	LICENSE PLATE LIGHT ASSEMBLY LH
*3	LICENSE PLATE LIGHT ASSEMBLY RH	*4	REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT LENS AND BODY LH - REAR COMBINATION LIGHT SOCKET AND WIRE LH
*5	REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT LENS AND BODY RH - REAR COMBINATION LIGHT SOCKET AND WIRE RH	*6	REAR LIGHT ASSEMBLY LH - REAR LIGHT LENS AND BODY LH - REAR LIGHT SOCKET AND WIRE LH
*7	REAR LIGHT ASSEMBLY RH - REAR LIGHT LENS AND BODY RH - REAR LIGHT SOCKET AND WIRE RH	-	-

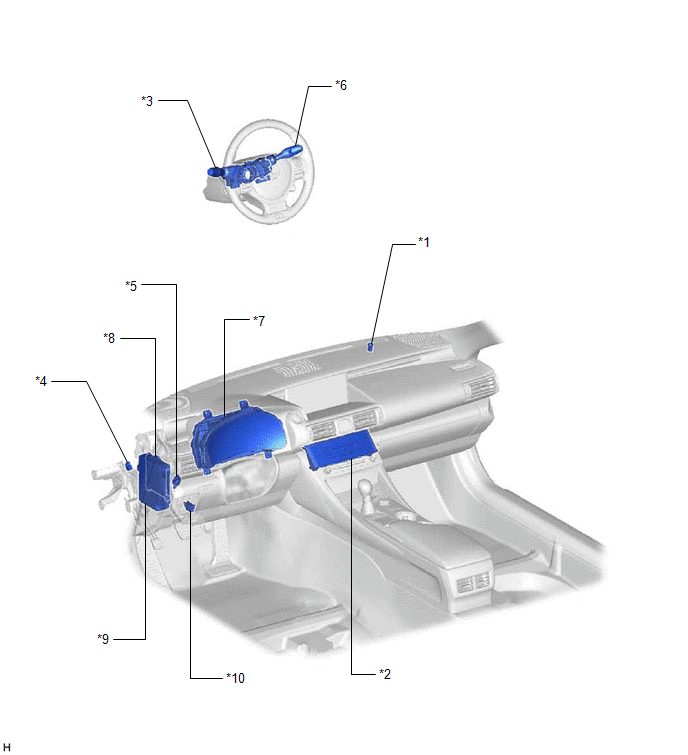

Fig 1: Lighting System (Single Beam Headlight) Components Location (3 Of 3) [09/2014 - 03/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AUTOMATIC LIGHT CONTROL SENSOR	*2	AIR CONDITIONING CONTROL ASSEMBLY (HAZARD WARNING SIGNAL SWITCH)
*3	HEADLIGHT DIMMER SWITCH ASSEMBLY	*4	PARKING BRAKE SWITCH ASSEMBLY
*5	STOP LIGHT SWITCH ASSEMBLY	*6	WINDSHIELD WIPER SWITCH ASSEMBLY
*7	COMBINATION METER ASSEMBLY	*8	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*9	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - TAIL FUSE - ECU-B FUSE - BKUP LP FUSE	*10	DLC3
