Home >> Lexus >> 2017 >> RC F >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting System (Single Beam) - Diagnostic Codes & Circuit Tests >> LIGHTING SYSTEM (for Single Beam Headlight) >> Low Beam Headlight Circuit [09/2014 - 03/2019] >> Wiring Diagram

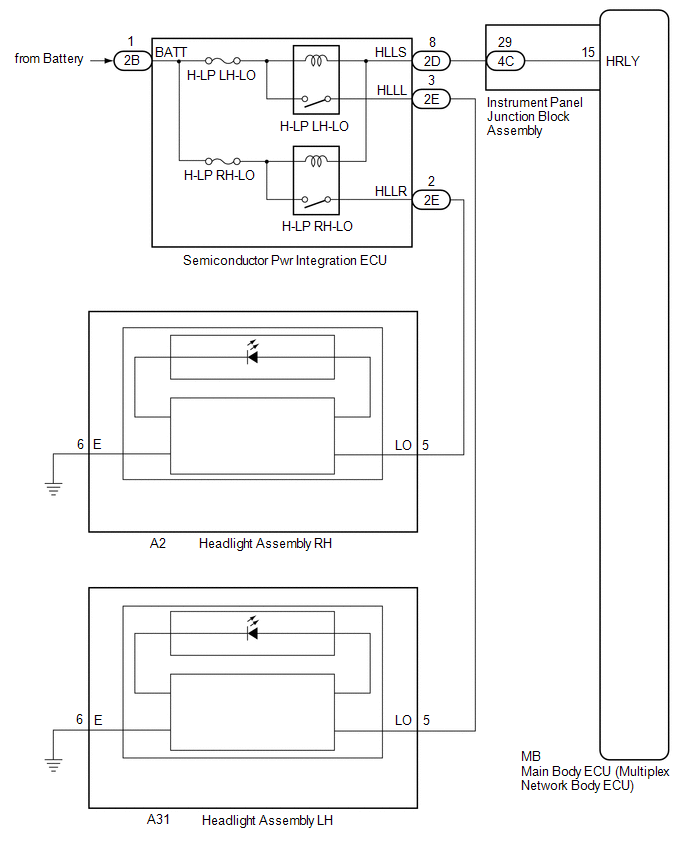

Low Beam Headlight Circuit [09/2014 - 03/2019]: Wiring Diagram

GTY512561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
