Terminals Of Ecu [09/2020 - 01/2023]

  1. CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) AND INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

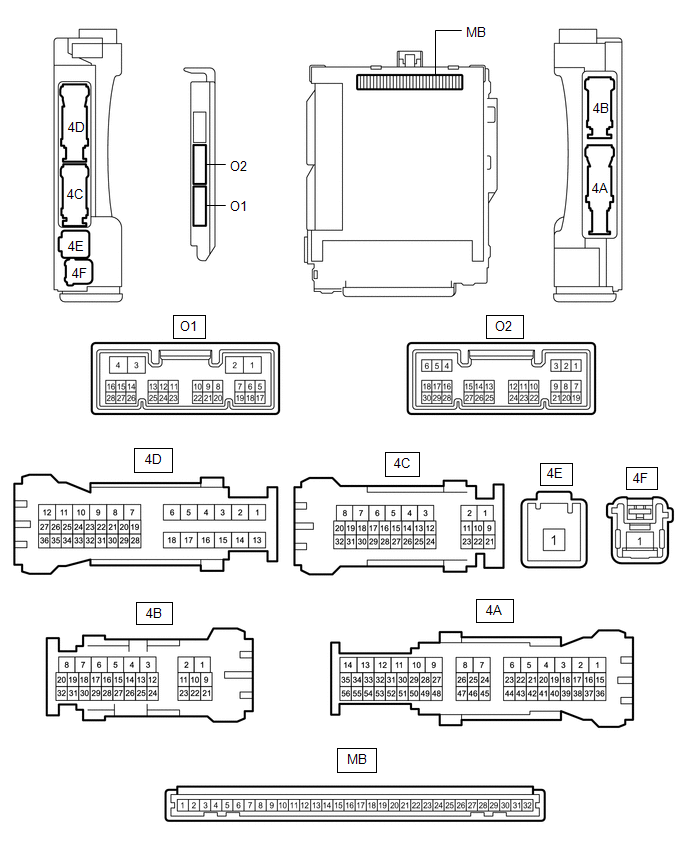

    Fig 1: Multiplex Network Body ECU Connector Terminal Identification
    GTY831650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage and check for pulses according to the value(s) in the table below.
      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      4C-29 - Body ground R - Body ground H-LP LH relay drive output Light control switch in head position Below 1 V
      Light control switch not in head position 11 to 14 V
      O1-23 (AHBI) - Body ground SB - Body ground Auto high beam switch signal input Auto high beam switch on Below 1 V
      Auto high beam switch off 11 to 14 V
      O2-1 (DIM) - Body ground V - Body ground H-LP RH relay drive output Light control switch in head position Below 1 V
      Light control switch not in head position 11 to 14 V
      O2-8 (A) - Body ground P - Body ground Light control switch AUTO position signal input Light control switch in AUTO position Below 1 V
      Light control switch not in AUTO position Pulse generation
      O2-12 (HEAD) - Body ground Y - Body ground Light control switch head position signal input Light control switch in head position Below 1 V
      Light control switch not in head position Pulse generation
      O2-19 (CLTB) - O2-21 (CLTE) GR - W Automatic light control sensor power supply output Engine switch off Below 1 V
      Engine switch on (IG), light control switch in AUTO position 11 to 14 V
      O2-20 (CLTS) - Body ground R - Body ground Automatic light control sensor signal input Engine switch off Below 1 V
      Engine switch on (IG) Pulse generation
      (See waveform 1)
      1. Waveform 1
        Fig 2: Waveform 1
        GTY442965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Item Content
        Tester Connection O2-20 (CLTS) - Body ground
        Tool setting 2 V/DIV., 10 ms./DIV.
        Condition Engine switch on (IG)

        HINT:

        The communication waveform changes according to the surrounding brightness.

  2. CHECK HEADLIGHT ECU SUB-ASSEMBLY LH (for Triple Beam Headlight)

    Refer to TERMINALS OF ECU [03/2019 - ]

  3. CHECK HEADLIGHT ECU SUB-ASSEMBLY LH (for Single Beam Headlight)

    Refer to TERMINALS OF ECU [03/2019 - ]

  4. CHECK HEADLIGHT ECU SUB-ASSEMBLY RH (for Triple Beam Headlight)

    Refer to TERMINALS OF ECU [03/2019 - ]

  5. CHECK HEADLIGHT ECU SUB-ASSEMBLY RH (for Single Beam Headlight)

    Refer to TERMINALS OF ECU [03/2019 - ]

  6. CHECK FORWARD RECOGNITION CAMERA

    Refer to TERMINALS OF ECU [11/2017 - 01/2023]
