Parts Location [09/2014 - 11/2017]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

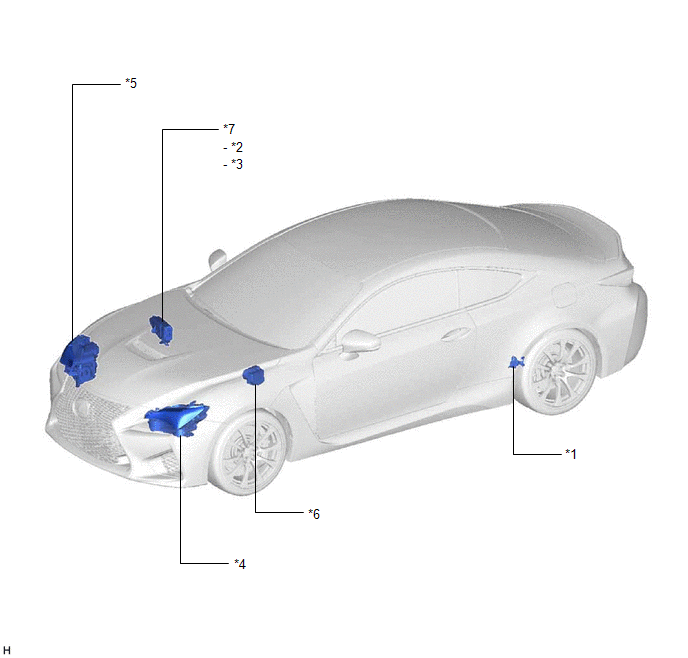

*1	REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH	*2	- H-LP LH RELAY
*3	- H-LP RH/MIR HTR RELAY	*4	HEADLIGHT ASSEMBLY LH - HEADLIGHT LEVELING MOTOR LH - HEADLIGHT UNIT ASSEMBLY LH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH
*5	HEADLIGHT ASSEMBLY RH - HEADLIGHT LEVELING MOTOR RH - HEADLIGHT UNIT ASSEMBLY RH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH	*6	BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)
*7	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - H-LP MAIN LH FUSE - H-LP MAIN RH FUSE	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

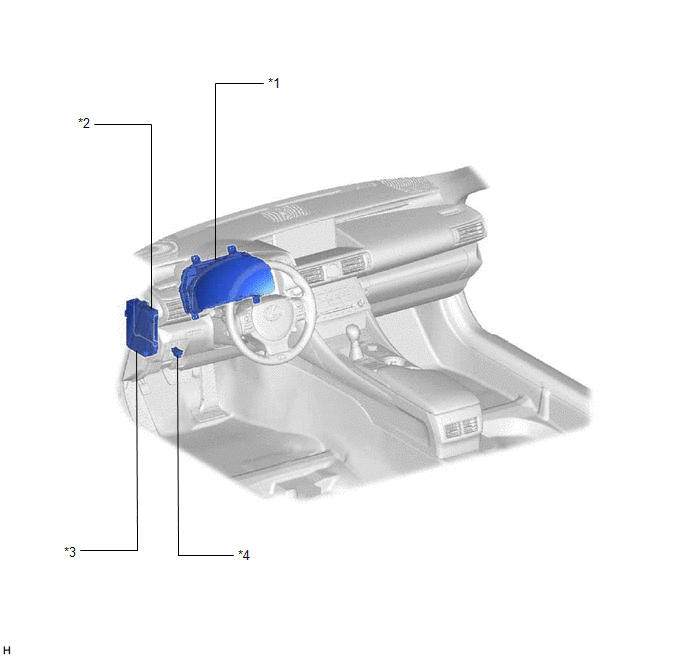

*1	COMBINATION METER ASSEMBLY	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE	*4	DLC3
