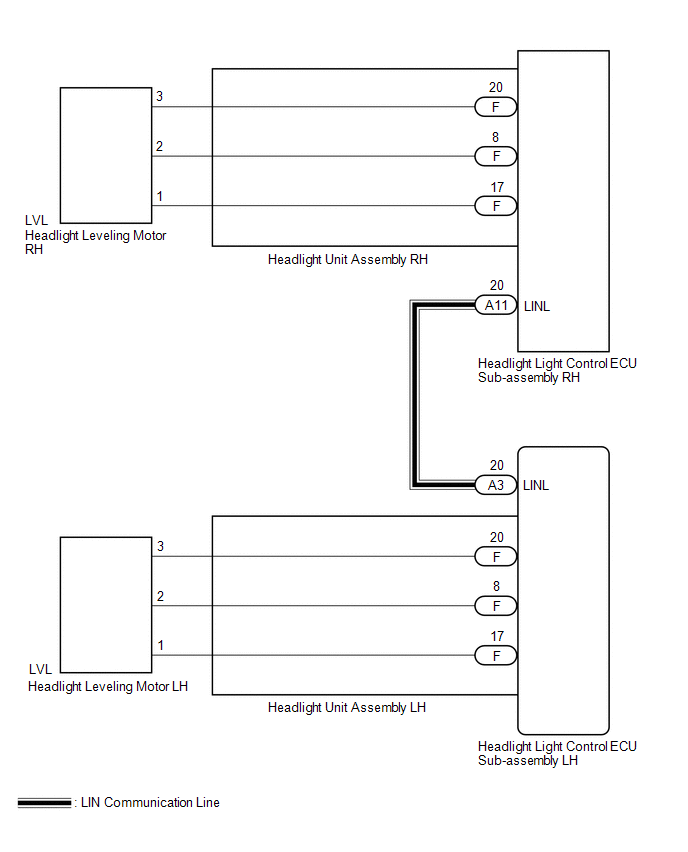

Headlight Beam Level Control Actuator Circuit [09/2014 - 03/2019]: Wiring Diagram

GTY514016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
