Meter / Gauge / Display - Service Information
>>
Combination Meter
>>
Components [09/2014 - 01/2023]
Components [09/2014 - 01/2023]

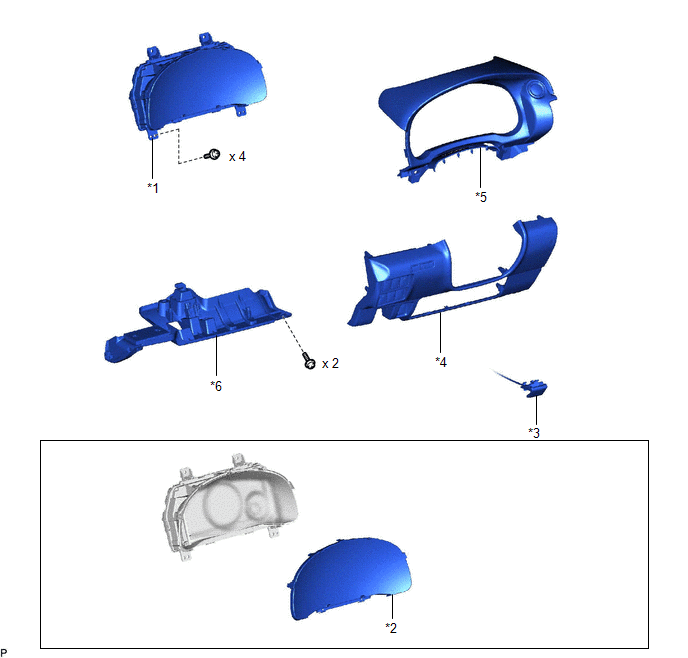

Fig 1: Combination Meter Replacement Components [09/2014 - 01/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
COMBINATION METER ASSEMBLY
*2
COMBINATION METER GLASS
*3
HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*4
LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
*5
METER HOOD SUB-ASSEMBLY
*6
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
