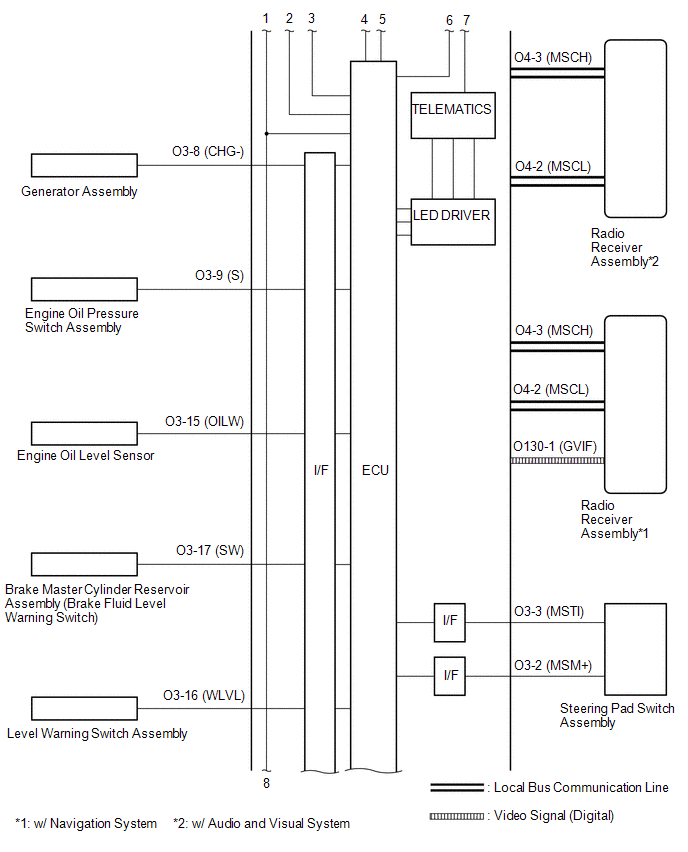

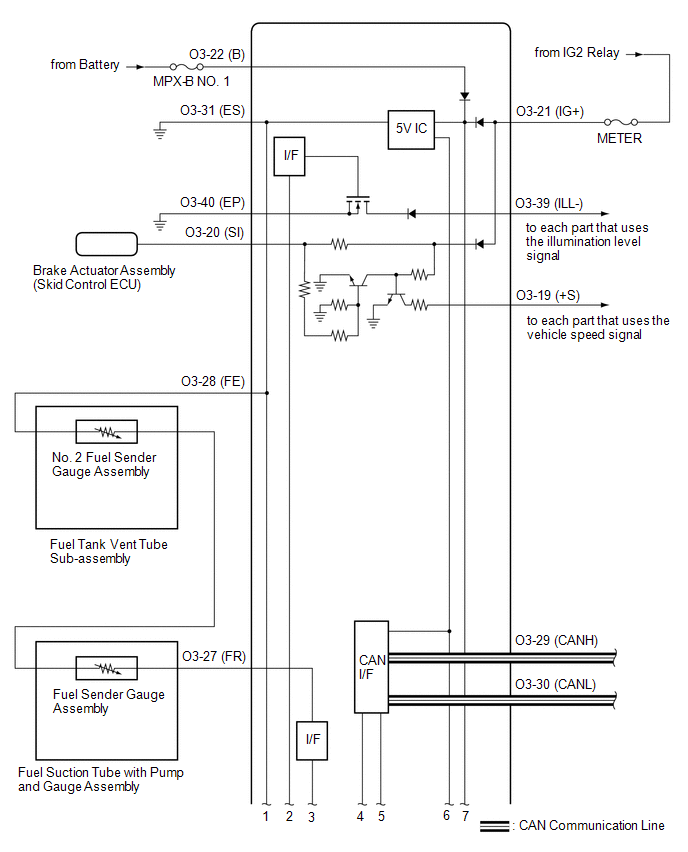

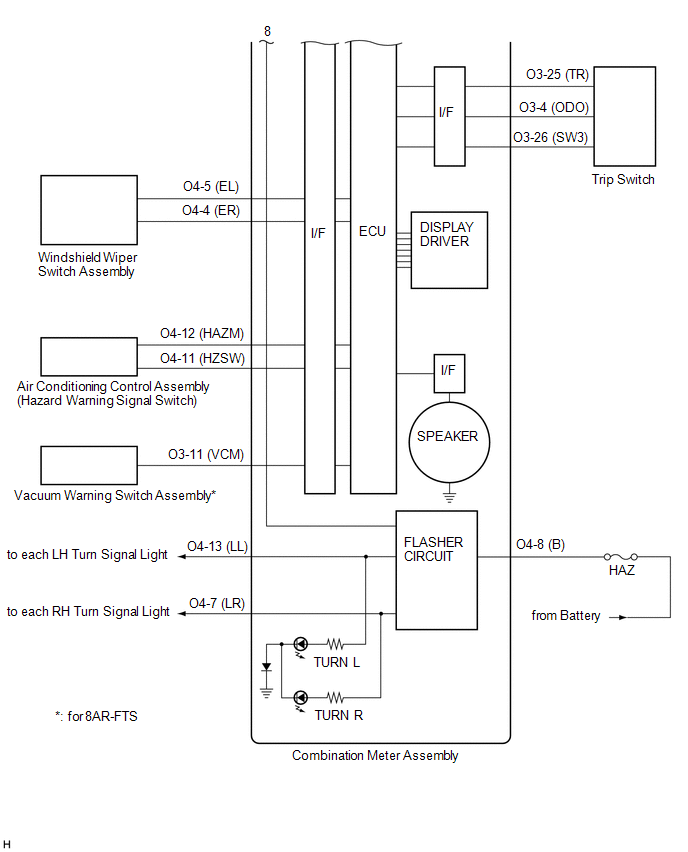

Home >> Lexus >> 2017 >> RC 350 Base, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge System - Diagnostics - Introduction (1 Of 8) >> Meter / Gauge System >> System Diagram [08/2016 - 11/2017] >> System Diagram [08/2016 - 11/2017]
