Speed Signal Circuit [11/2019 - 09/2020]: Wiring Diagram

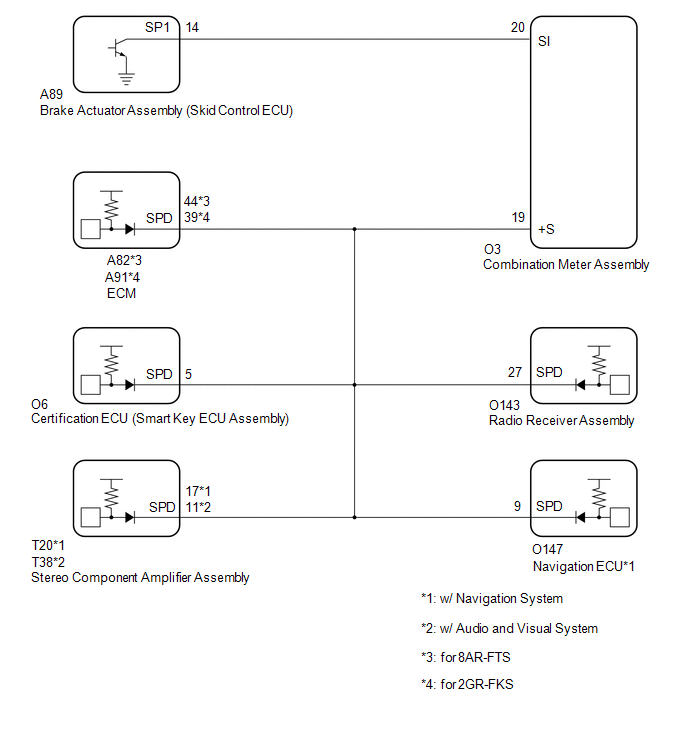

Fig 1: Speed Signal Circuit [11/2019 - 09/2020]

GTY963057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
