DTC B1507: Open in Turn Signal Circuit [10/2018 - ]: Procedure

  1. CHECK LIGHTS
    1. Inspect the illumination of each turn signal light.

      Result

      Result Proceed to
      Front turn signal light LH does not blink A
      Rear turn signal light LH does not blink B
      Front turn signal light RH does not blink C
      Rear turn signal light RH does not blink D

    Result:

    B

    See step  6

    Result:

    C

    See step  9

    Result:

    D

    See step  13

    Result:

    A

    See step  2

  2. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the A36 headlight ECU sub-assembly LH connector.
    2. Disconnect the O4 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A36-11 (TNS) - O4-13 (LL) Always Below 1 Ω
      A36-12 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. INSPECT HEADLIGHT ECU SUB-ASSEMBLY LH

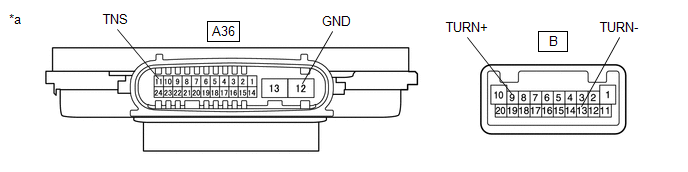

    GTY814678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Headlight ECU Sub-assembly LH)    		 - -
    1. Remove the headlight ECU sub-assembly LH.

      Refer to REMOVAL [10/2018 - ]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B-9 (TURN+) - A36-11 (TNS) Always Below 1 Ω
      B-13 (TURN-) - A36-12 (GND) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [10/2018 - ]

    Result:

    OK

    See step  4

  4. CHECK LH SIDE LIGHTS (COMBINATION METER ASSEMBLY)
    1. Connect the O4 combination meter assembly connector.
    2. Remove each headlight ECU sub-assembly, interchange the headlight unit assembly LH with RH and connect the connectors.

      Refer to DISASSEMBLY [10/2018 - ]

    3. Check that the front turn signal light operates normally.

      OK

      Front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

    Result:

    OK

    See step  5

  5. CHECK LH SIDE LIGHTS (HEADLIGHT UNIT ASSEMBLY LH)
    1. Interchange the headlight clearance LED unit LH with RH and connect the connectors.

      Refer to DISASSEMBLY [10/2018 - ]

    2. Check that the front turn signal light operates normally.

      OK

      Front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT CLEARANCE LED UNIT LH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    NG

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [10/2018 - ]

  6. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the U41 rear combination light assembly LH connector.
    2. Disconnect the O4 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U41-4 (TRN) - O4-11 (TRNL) Always Below 1 Ω
      U41-3 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. CHECK LH SIDE LIGHTS (COMBINATION METER ASSEMBLY)
    1. Interchange the rear combination light assembly LH with RH and connect the connectors.

      Refer to REMOVAL [10/2018 - ]

    2. Check that the rear turn signal light operates normally.

      OK

      Rear turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

    Result:

    OK

    See step  8

  8. INSPECT REAR COMBINATION LIGHT ASSEMBLY LH
    1. Remove the rear combination light assembly LH.

      Refer to REMOVAL [10/2018 - ]

    2. Inspect the rear combination light assembly LH.

      Refer to INSPECTION [09/2014 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR COMBINATION LIGHT CORD LH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    NG

    REPLACE REAR COMBINATION LIGHT ASSEMBLY LH

    Refer to REMOVAL [10/2018 - ]

  9. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the A7 headlight ECU sub-assembly RH connector.
    2. Disconnect the O4 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A7-11 (TNS) - O4-7 (LR) Always Below 1 Ω
      A7-12 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  10

  10. INSPECT HEADLIGHT ECU SUB-ASSEMBLY RH
    GTY835954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Headlight ECU Sub-assembly RH)    		 - -
    1. Remove the headlight ECU sub-assembly RH.

      Refer to REMOVAL [10/2018 - ]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B-9 (TURN+) - A7-11 (TNS) Always Below 1 Ω
      B-13 (TURN-) - A7-12 (GND) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH

    Refer to REMOVAL [10/2018 - ]

    Result:

    OK

    See step  11

  11. CHECK RH SIDE LIGHTS (COMBINATION METER ASSEMBLY)
    1. Connect the O4 combination meter assembly connector.
    2. Remove each headlight ECU sub-assembly, interchange the headlight unit assembly RH with LH and connect the connectors.

      Refer to DISASSEMBLY [10/2018 - ]

    3. Check that the front turn signal light operates normally.

      OK

      Front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

    Result:

    OK

    See step  12

  12. CHECK RH SIDE LIGHTS (HEADLIGHT UNIT ASSEMBLY RH)
    1. Interchange the headlight clearance LED unit RH with LH and connect the connectors.

      Refer to DISASSEMBLY [10/2018 - ]

    2. Check that the front turn signal light operates normally.

      OK

      Front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT CLEARANCE LED UNIT RH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    NG

    REPLACE HEADLIGHT UNIT ASSEMBLY RH

    Refer to DISASSEMBLY [10/2018 - ]

  13. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the U5 rear combination light assembly RH connector.
    2. Disconnect the O4 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      U5-4 (TRN) - O4-5 (TRNR) Always Below 1 Ω
      U5-3 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  14

  14. CHECK RH SIDE LIGHTS (COMBINATION METER ASSEMBLY)
    1. Interchange the rear combination light assembly RH with LH and connect the connectors.

      Refer to REMOVAL [10/2018 - ]

    2. Check that the rear turn signal light operates normally.

      OK

      Rear turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

    Result:

    OK

    See step  15

  15. INSPECT REAR COMBINATION LIGHT ASSEMBLY RH
    1. Remove the rear combination light assembly RH.

      Refer to REMOVAL [10/2018 - ]

    2. Inspect the rear combination light assembly RH.

      Refer to DISASSEMBLY [10/2018 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR COMBINATION LIGHT CORD RH. Refer to  DISASSEMBLY [10/2018 - ]

    Result:

    NG

    REPLACE REAR COMBINATION LIGHT ASSEMBLY RH

    Refer to REMOVAL [10/2018 - ]
