Components [11/2017 - ]

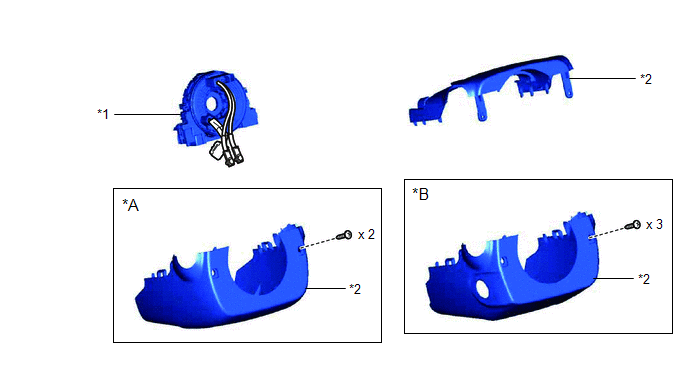

Fig 1: Spiral Cable Replacement Components [11/2017 - ] (1 Of 2)
GTY785889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Manual Tilt and Manual Telescopic Steering Column *B for Power Tilt and Power Telescopic Steering Column
*1 SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY *2 STEERING COLUMN COVER
Fig 2: Spiral Cable Replacement Components [11/2017 - ] (2 Of 2)
GTY505122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 SPIRAL CABLE SUB-ASSEMBLY *2 STEERING SENSOR
