Components [11/2017 - ]

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

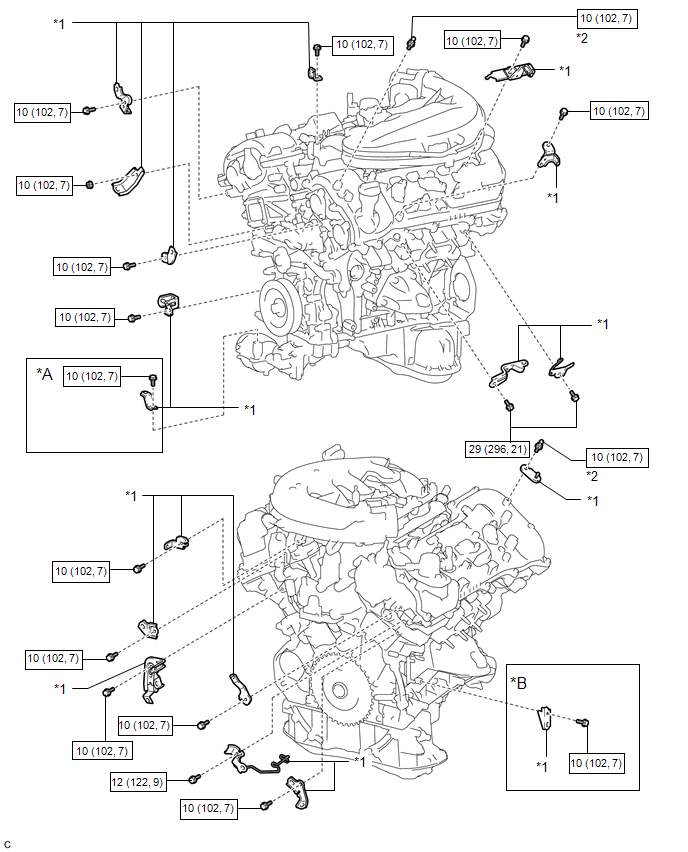

Fig 1: Engine Unit Replacement Components With Torque Specifications (1 Of 20)
GTY811983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 2WD *B for AWD
*1 WIRE HARNESS CLAMP BRACKET *2 V-BANK COVER BRACKET
N.m (kgf/cm, ft.lbf): Specified torque - -

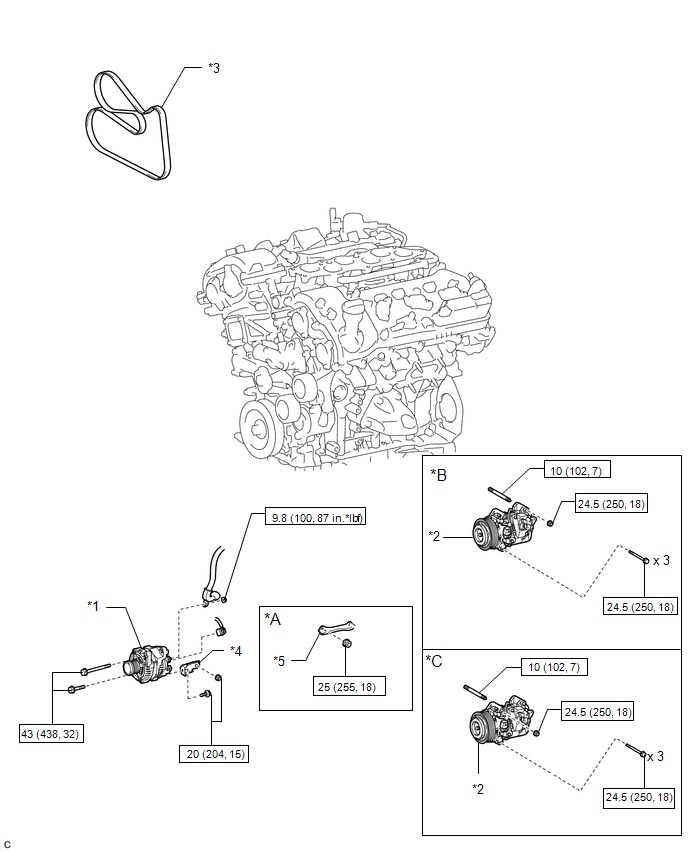

Fig 2: Engine Unit Replacement Components With Torque Specifications (2 Of 20)
GTY786410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for AWD *B Type A
*C Type B - -
*1 GENERATOR ASSEMBLY *2 COMPRESSOR AND MAGNETIC CLUTCH
*3 V-RIBBED BELT *4 BRACKET
*5 OIL FILTER BRACKET - -
N.m (kgf/cm, ft.lbf): Specified torque - -

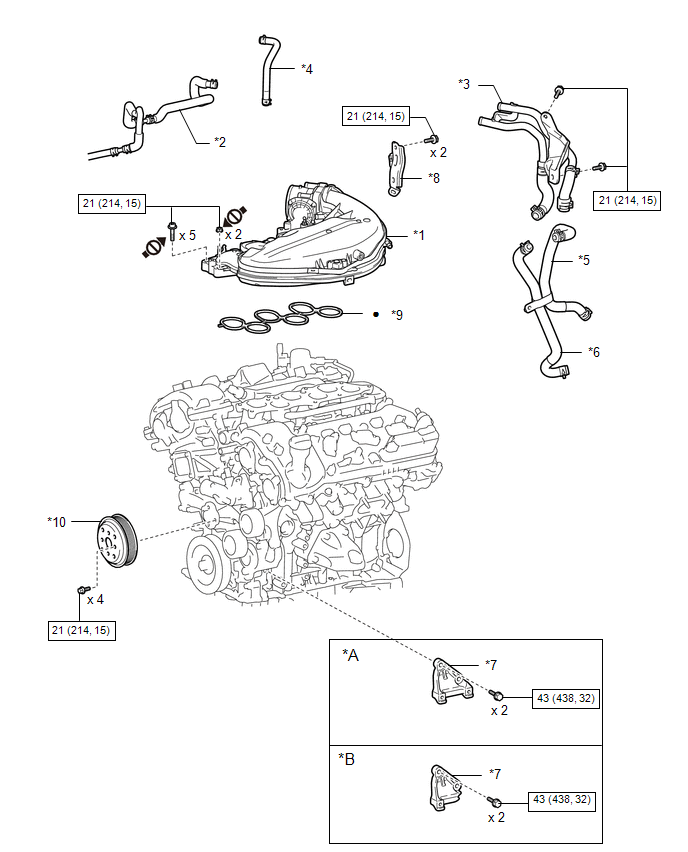

Fig 3: Engine Unit Replacement Components With Torque Specifications (3 Of 20)
GTY817245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 2WD *B for AWD
*1 INTAKE AIR SURGE TANK ASSEMBLY *2 NO. 2 WATER BY-PASS HOSE ASSEMBLY
*3 NO. 2 WATER BY-PASS PIPE *4 WATER BY-PASS HOSE
*5 NO. 10 WATER BY-PASS HOSE *6 NO. 11 WATER BY-PASS HOSE
*7 NO. 1 COMPRESSOR MOUNTING BRACKET *8 NO. 2 SURGE TANK STAY
*9 AIR SURGE TANK TO INTAKE MANIFOLD GASKET *10 WATER PUMP PULLEY
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Do not apply lubricants to the threaded parts - -

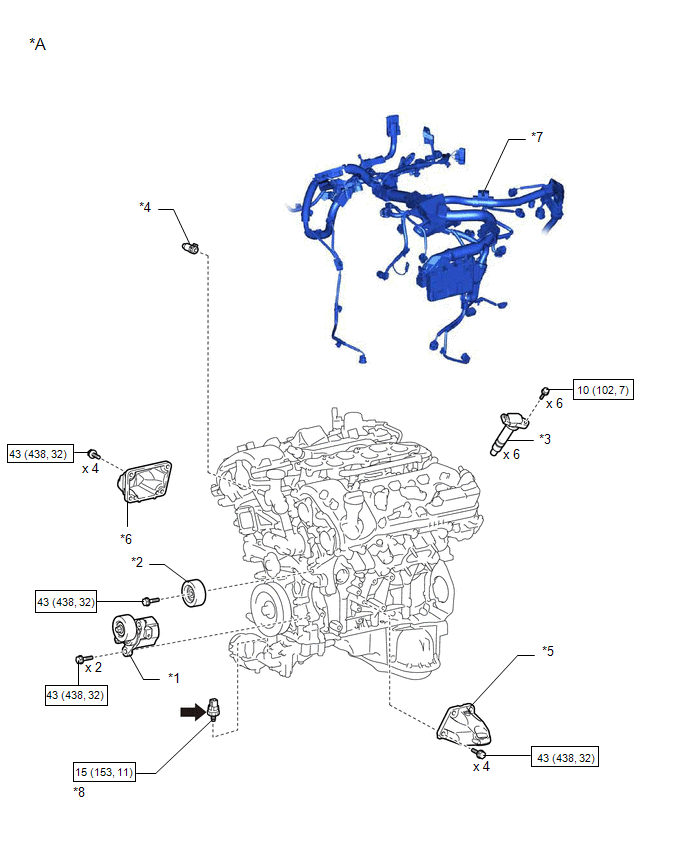

Fig 4: Engine Unit Replacement Components With Torque Specifications (4 Of 20)
GTY805322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 2WD - -
*1 V-RIBBED BELT TENSIONER ASSEMBLY *2 NO. 2 IDLER PULLEY SUB-ASSEMBLY
*3 IGNITION COIL ASSEMBLY *4 WATER INLET CAP
*5 FRONT NO. 1 ENGINE MOUNTING BRACKET LH *6 FRONT NO. 1 ENGINE MOUNTING BRACKET RH
*7 ENGINE WIRE *8 ENGINE OIL PRESSURE SWITCH ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque Adhesive 1324
* Precoated part - -

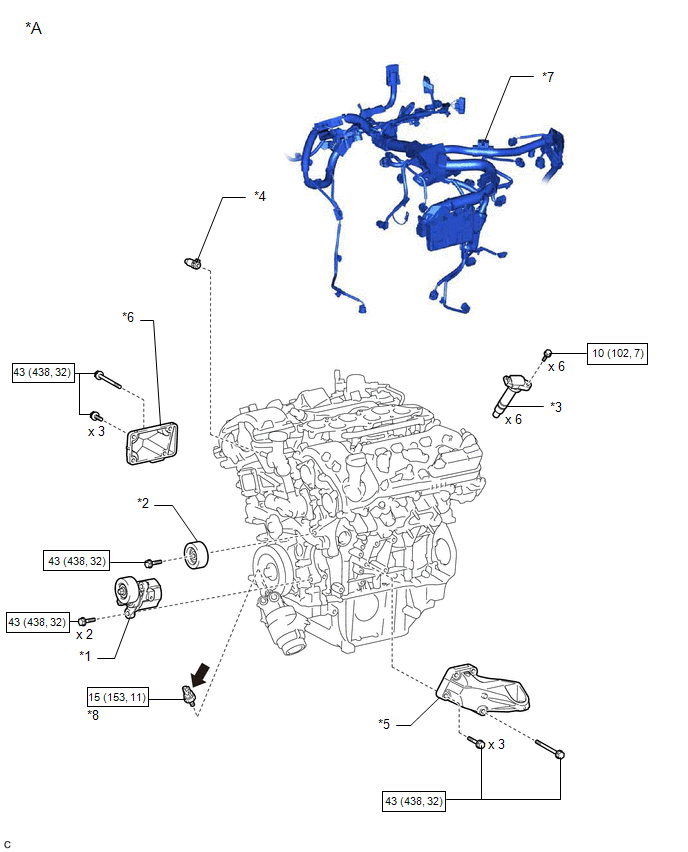

Fig 5: Engine Unit Replacement Components With Torque Specifications (5 Of 20)
GTY803077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for AWD - -
*1 V-RIBBED BELT TENSIONER ASSEMBLY *2 NO. 2 IDLER PULLEY SUB-ASSEMBLY
*3 IGNITION COIL ASSEMBLY *4 WATER INLET CAP
*5 FRONT NO. 1 ENGINE MOUNTING BRACKET LH *6 FRONT NO. 1 ENGINE MOUNTING BRACKET RH
*7 ENGINE WIRE *8 ENGINE OIL PRESSURE SWITCH ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque Adhesive 1324
* Precoated part - -
Fig 6: Engine Unit Replacement Components With Torque Specifications (6 Of 20)
GTY810935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 INTAKE MANIFOLD *2 FUEL INJECTOR ASSEMBLY
*3 FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY *4 GASKET
*5 INJECTOR VIBRATION INSULATOR *6 NO. 1 DELIVERY PIPE SPACER
*7 O-RING *8 NO. 2 WATER BY-PASS HOSE
*9 NO. 6 WATER BY-PASS HOSE *10 NO. 3 WATER BY-PASS HOSE
*11 ENGINE COOLANT TEMPERATURE SENSOR - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Fig 7: Engine Unit Replacement Components With Torque Specifications (7 Of 20)
GTY785742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL MAIN TUBE CONNECTOR *2 NO. 1 FUEL PIPE SUB-ASSEMBLY
*3 FUEL PUMP ASSEMBLY *4 FUEL PUMP LIFTER GUIDE
*5 FUEL PUMP LIFTER ASSEMBLY *6 FUEL PUMP SPACER GASKET
N.m (kgf/cm, ft.lbf): Specified torque * For use with union nut wrench
• Non-reusable part - -
Fig 8: Engine Unit Replacement Components With Torque Specifications (8 Of 20)
GTY783154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL INJECTOR ASSEMBLY *2 NO. 2 FUEL PIPE SUB-ASSEMBLY
*3 FUEL INJECTOR SEAL *4 FUEL DELIVERY PIPE RH
*5 FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH *6 C-RING
*7 INJECTOR VIBRATION INSULATOR *8 NO. 1 FUEL INJECTOR BACK-UP RING
*9 NO. 3 FUEL INJECTOR BACK-UP RING *10 NO. 6 ENGINE WIRE
*11 NO. 7 ENGINE WIRE *12 NOZZLE HOLDER CLAMP
*13 O-RING *14 STUD BOLT
N.m (kgf/cm, ft.lbf): Specified torque * For use with a union nut wrench
• Non-reusable part - -

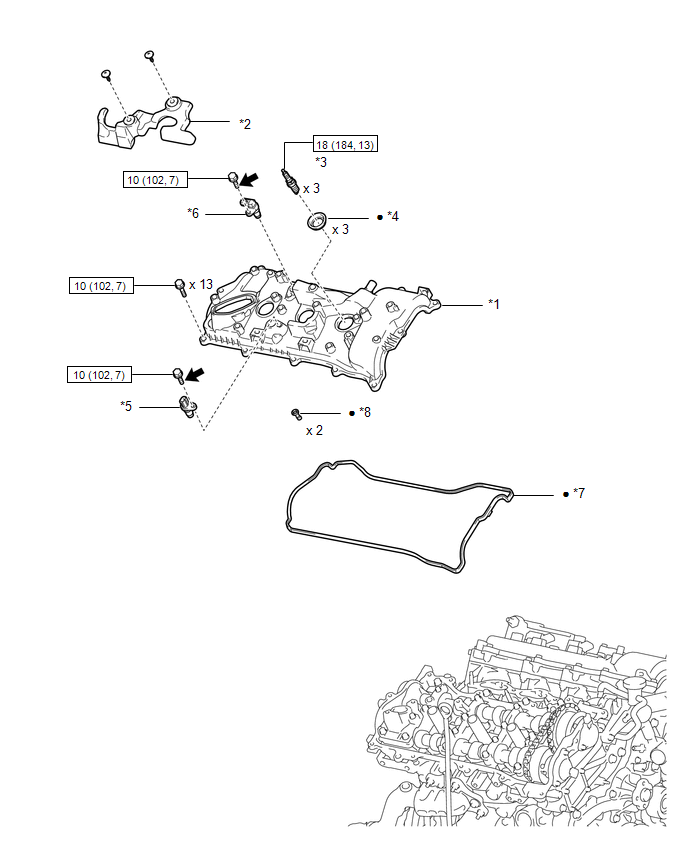

Fig 9: Engine Unit Replacement Components With Torque Specifications (9 Of 20)
GTY781846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CYLINDER HEAD COVER SUB-ASSEMBLY *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 SPARK PLUG *4 SPARK PLUG TUBE GASKET
*5 VVT SENSOR (for Exhaust Side of Bank1) *6 VVT SENSOR (for Intake Side of Bank 1)
*7 CYLINDER HEAD COVER GASKET *8 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

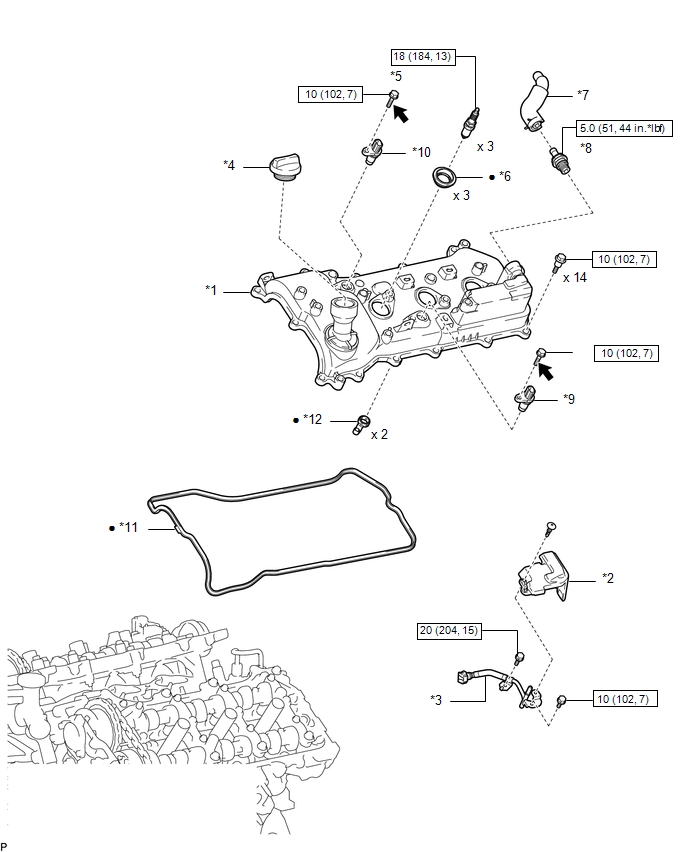

Fig 10: Engine Unit Replacement Components With Torque Specifications (10 Of 20)
GTY810500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CYLINDER HEAD COVER SUB-ASSEMBLY LH *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 NO. 1 FUEL TUBE SUB-ASSEMBLY *4 OIL FILTER CAP ASSEMBLY
*5 SPARK PLUG *6 SPARK PLUG TUBE GASKET
*7 VENTILATION HOSE ASSEMBLY *8 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
*9 VVT SENSOR (for Exhaust Side of Bank2) *10 VVT SENSOR (for Intake Side of Bank 2)
*11 CYLINDER HEAD COVER GASKET *12 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

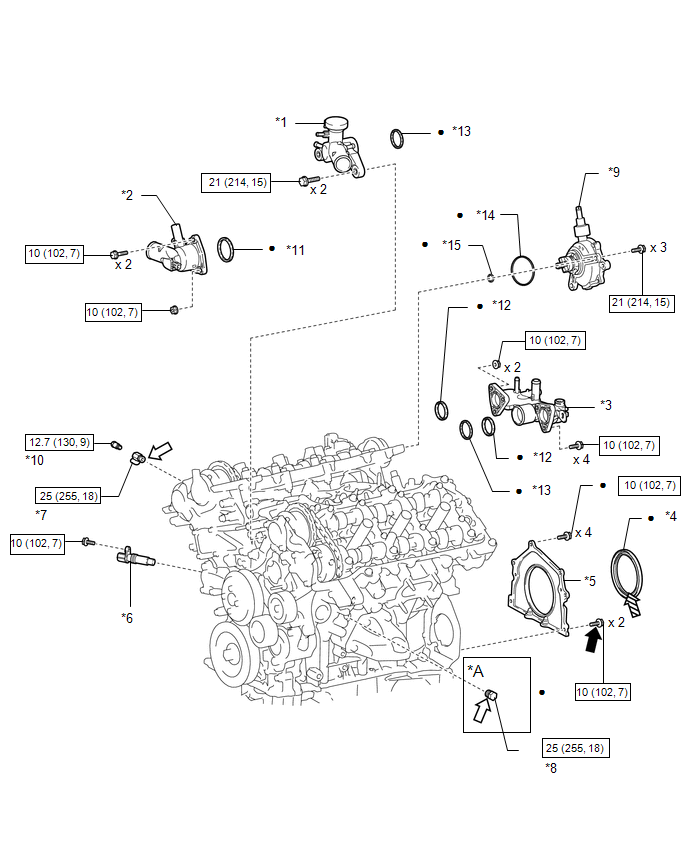

Fig 11: Engine Unit Replacement Components With Torque Specifications (11 Of 20)
GTY947122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Cylinder Block Water Drain Cock Plug - -
*1 WATER OUTLET SUB-ASSEMBLY *2 WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
*3 REAR WATER BY-PASS JOINT *4 ENGINE REAR OIL SEAL
*5 ENGINE REAR OIL SEAL RETAINER *6 CRANKSHAFT POSITION SENSOR
*7 CYLINDER BLOCK WATER DRAIN COCK SUB-ASSEMBLY *8 CYLINDER BLOCK WATER DRAIN COCK PLUG
*9 VACUUM PUMP ASSEMBLY *10 WATER DRAIN COCK PLUG
*11 GASKET *12 WATER BY-PASS JOINT GASKET
*13 O-RING *14 NO. 2 O-RING
*15 NO. 3 O-RING - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Adhesive 1324 Adhesive 1344
MP Grease * Precoated part

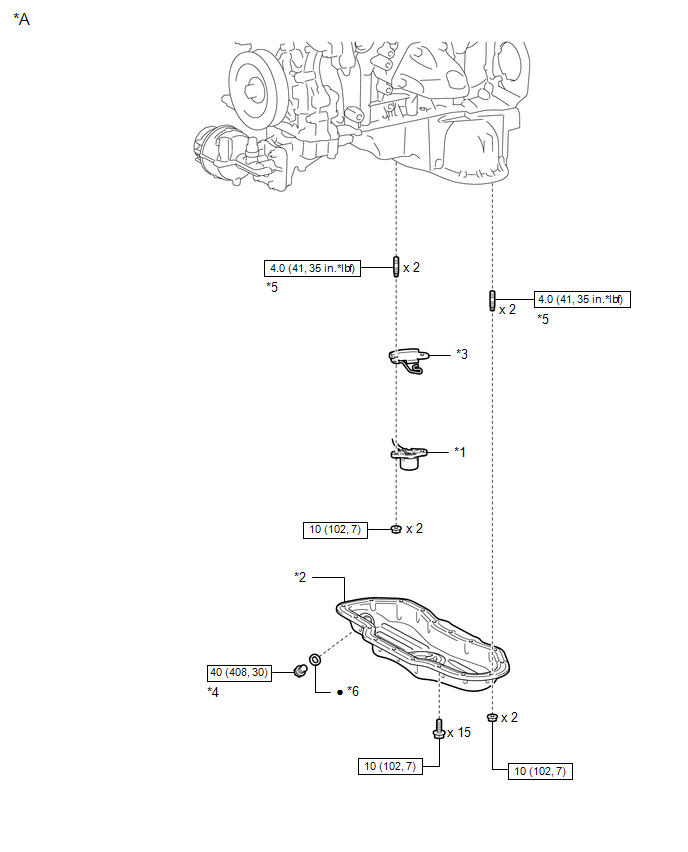

Fig 12: Engine Unit Replacement Components With Torque Specifications (12 Of 20)
GTY794236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 2WD - -
*1 ENGINE OIL LEVEL SENSOR *2 NO. 2 OIL PAN SUB-ASSEMBLY
*3 OIL LEVEL SENSOR BRACKET *4 OIL PAN DRAIN PLUG
*5 STUD BOLT *6 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

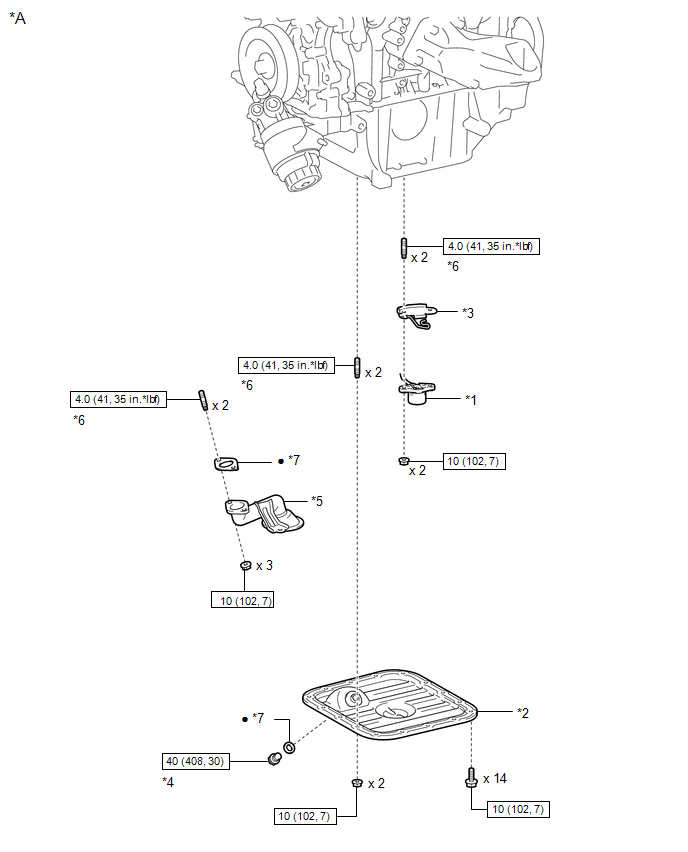

Fig 13: Engine Unit Replacement Components With Torque Specifications (13 Of 20)
GTY824151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for AWD - -
*1 ENGINE OIL LEVEL SENSOR *2 NO. 2 OIL PAN SUB-ASSEMBLY
*3 OIL LEVEL SENSOR BRACKET *4 OIL PAN DRAIN PLUG
*5 OIL PIPE WITH STRAINER SUB-ASSEMBLY *6 STUD BOLT
*7 GASKET - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

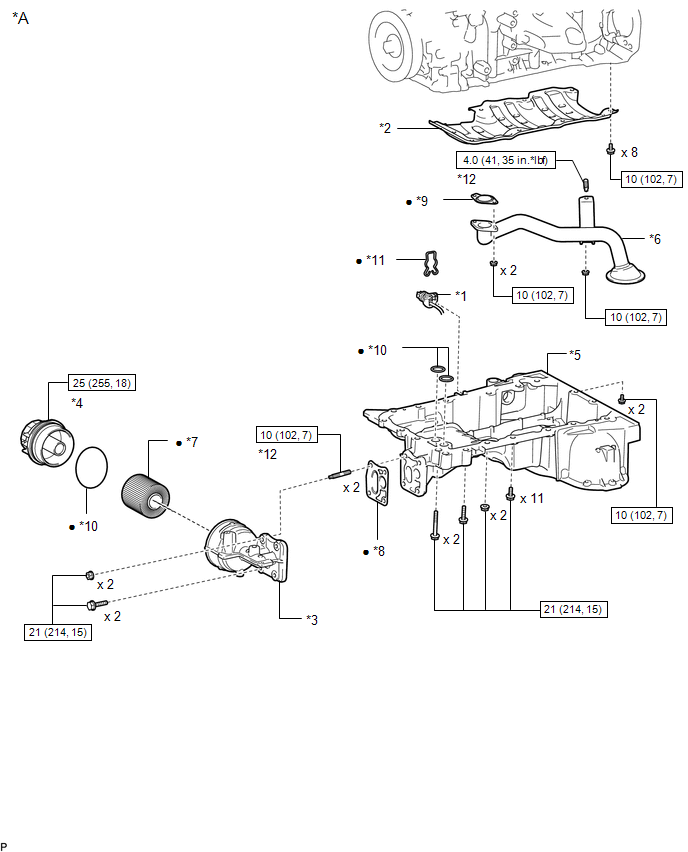

Fig 14: Engine Unit Replacement Components With Torque Specifications (14 Of 20)
GTY821286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for 2WD - -
*1 ENGINE OIL LEVEL SENSOR *2 NO. 1 OIL PAN BAFFLE PLATE
*3 OIL FILTER BRACKET SUB-ASSEMBLY *4 OIL FILTER CAP ASSEMBLY
*5 OIL PAN SUB-ASSEMBLY *6 OIL STRAINER SUB-ASSEMBLY
*7 OIL FILTER ELEMENT *8 OIL FILTER BRACKET GASKET
*9 GASKET *10 O-RING
*11 CLIP *12 STUD BOLT
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

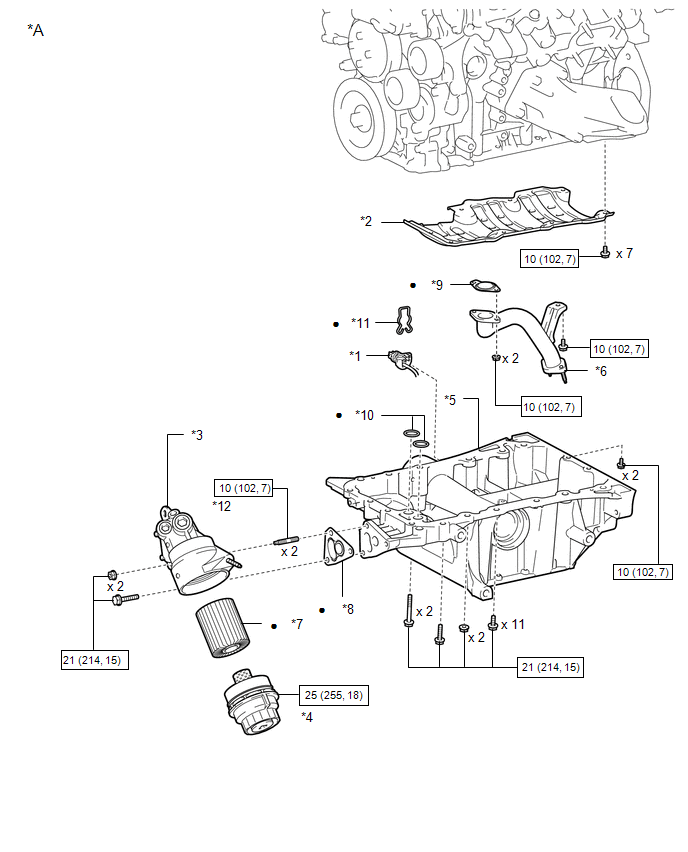

Fig 15: Engine Unit Replacement Components With Torque Specifications (15 Of 20)
GTY815572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for AWD - -
*1 ENGINE OIL LEVEL SENSOR *2 NO. 1 OIL PAN BAFFLE PLATE
*3 OIL FILTER BRACKET SUB-ASSEMBLY *4 OIL FILTER CAP ASSEMBLY
*5 OIL PAN SUB-ASSEMBLY *6 OIL STRAINER SUB-ASSEMBLY
*7 OIL FILTER ELEMENT *8 OIL FILTER BRACKET GASKET
*9 GASKET *10 O-RING
*11 CLIP *12 STUD BOLT
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

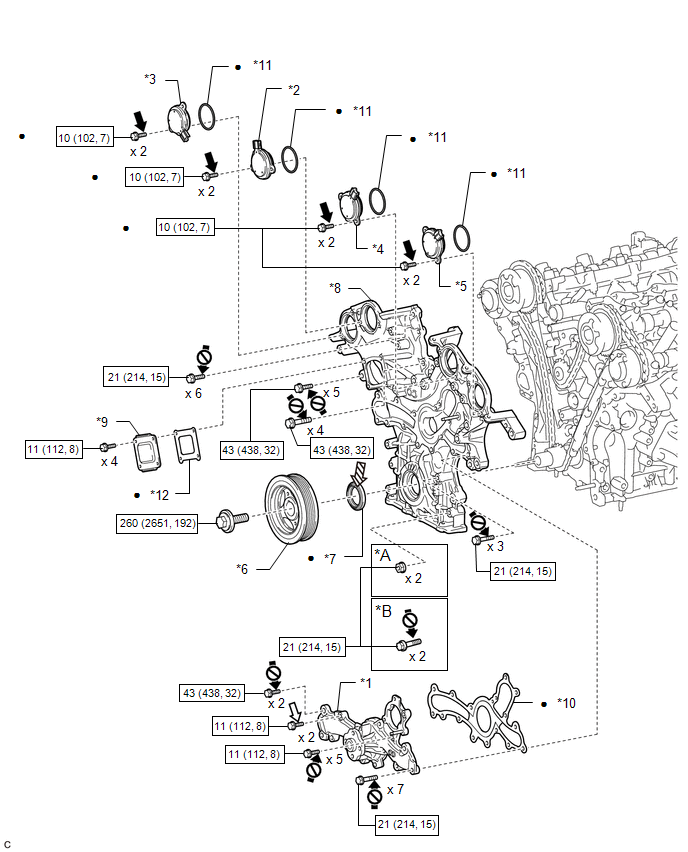

Fig 16: Engine Unit Replacement Components With Torque Specifications (16 Of 20)
GTY948790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Stud Bolt *B w/o Stud Bolt
*1 ENGINE WATER PUMP ASSEMBLY *2 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1)
*3 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) *4 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2)
*5 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) *6 CRANKSHAFT PULLEY
*7 TIMING CHAIN CASE OIL SEAL *8 TIMING CHAIN COVER ASSEMBLY
*9 TIMING CHAIN COVER PLATE *10 WATER PUMP GASKET
*11 O-RING *12 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Adhesive 1324 Adhesive 1344
MP grease * Precoated part
Do not apply lubricants to the threaded parts - -

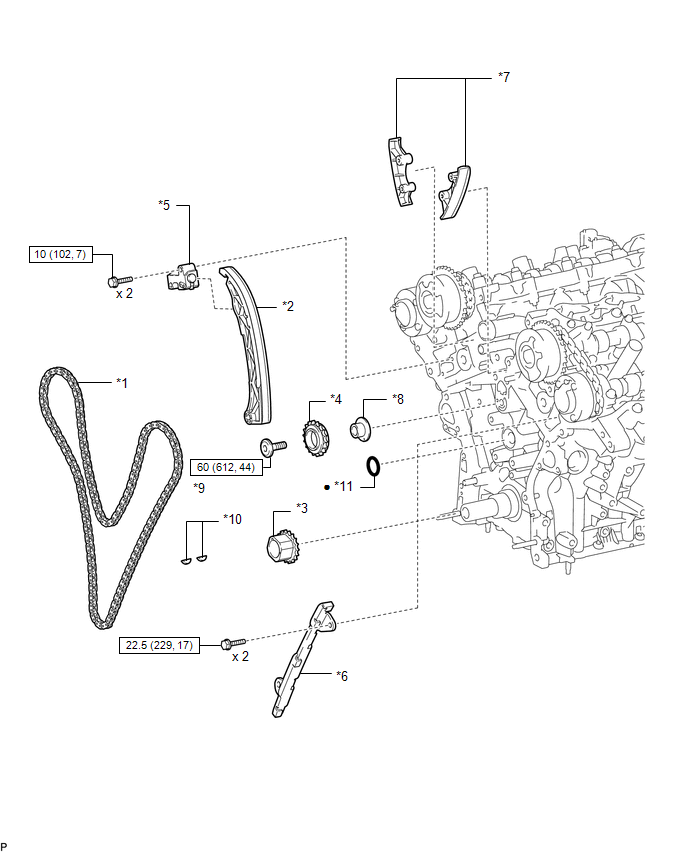

Fig 17: Engine Unit Replacement Components With Torque Specifications (17 Of 20)
GTY778874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CHAIN SUB-ASSEMBLY *2 CHAIN TENSIONER SLIPPER
*3 CRANKSHAFT TIMING GEAR OR SPROCKET *4 IDLE SPROCKET ASSEMBLY
*5 NO. 1 CHAIN TENSIONER ASSEMBLY *6 NO. 1 CHAIN VIBRATION DAMPER
*7 NO. 2 CHAIN VIBRATION DAMPER *8 NO. 1 IDLE GEAR SHAFT
*9 NO. 2 IDLE GEAR SHAFT *10 CRANKSHAFT TIMING GEAR SET KEY
*11 GASKET - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

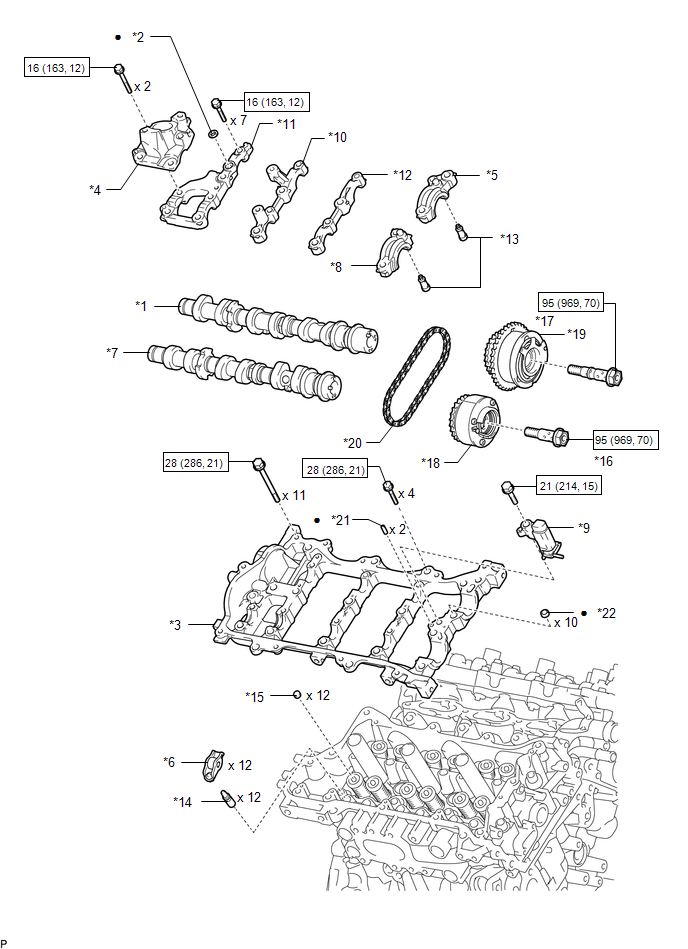

Fig 18: Engine Unit Replacement Components With Torque Specifications (18 Of 20)
GTY815351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT *2 CAMSHAFT BEARING CAP OIL HOLE GASKET RH
*3 CAMSHAFT HOUSING SUB-ASSEMBLY RH *4 FUEL PUMP LIFTER HOUSING
*5 NO. 1 CAMSHAFT BEARING CAP *6 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*7 NO. 2 CAMSHAFT *8 NO. 2 CAMSHAFT BEARING CAP
*9 NO. 2 CHAIN TENSIONER ASSEMBLY *10 NO. 5 CAMSHAFT BEARING CAP
*11 NO. 6 CAMSHAFT BEARING CAP *12 NO. 8 CAMSHAFT BEARING CAP
*13 OIL CONTROL VALVE FILTER *14 VALVE LASH ADJUSTER ASSEMBLY
*15 VALVE STEM CAP *16 CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1)
*17 CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1) *18 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY RH
*19 CAMSHAFT TIMING GEAR ASSEMBLY *20 NO. 2 CHAIN SUB-ASSEMBLY
*21 STRAIGHT PIN *22 CAMSHAFT BEARING CAP SETTING RING PIN
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

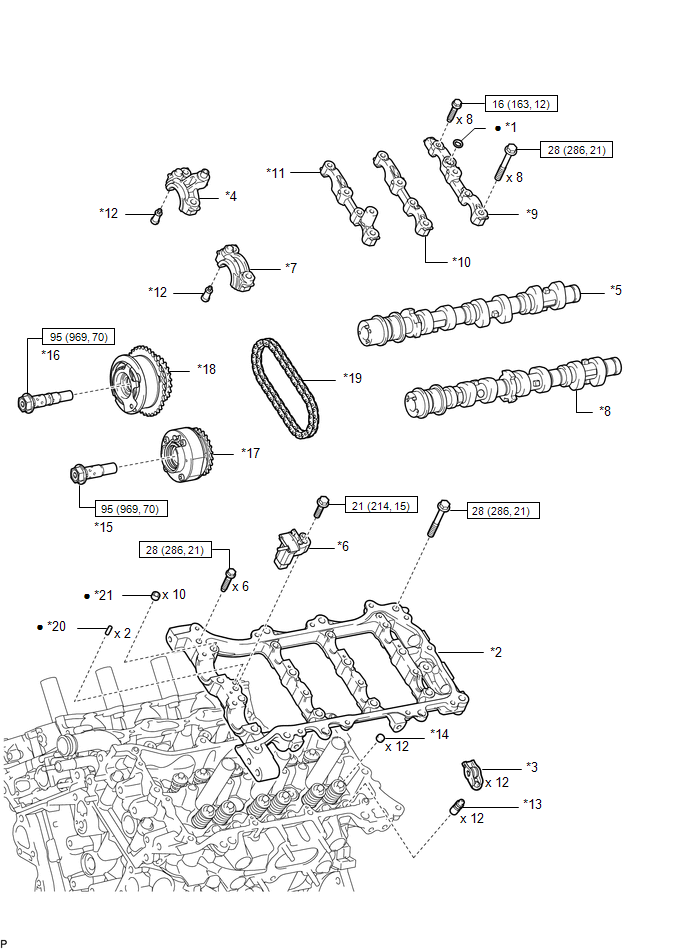

Fig 19: Engine Unit Replacement Components With Torque Specifications (19 Of 20)
GTY782548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT BEARING CAP OIL HOLE GASKET LH *2 CAMSHAFT HOUSING SUB-ASSEMBLY LH
*3 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY *4 NO. 3 CAMSHAFT BEARING CAP
*5 NO. 3 CAMSHAFT SUB-ASSEMBLY *6 NO. 3 CHAIN TENSIONER ASSEMBLY
*7 NO. 4 CAMSHAFT BEARING CAP *8 NO. 4 CAMSHAFT SUB-ASSEMBLY
*9 NO. 7 CAMSHAFT BEARING CAP *10 NO. 8 CAMSHAFT BEARING CAP
*11 NO. 9 CAMSHAFT BEARING CAP *12 OIL CONTROL VALVE FILTER
*13 VALVE LASH ADJUSTER ASSEMBLY *14 VALVE STEM CAP
*15 CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) *16 CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2)
*17 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY LH *18 CAMSHAFT TIMING GEAR ASSEMBLY
*19 NO. 2 CHAIN SUB-ASSEMBLY *20 STRAIGHT PIN
*21 CAMSHAFT BEARING CAP SETTING RING PIN - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

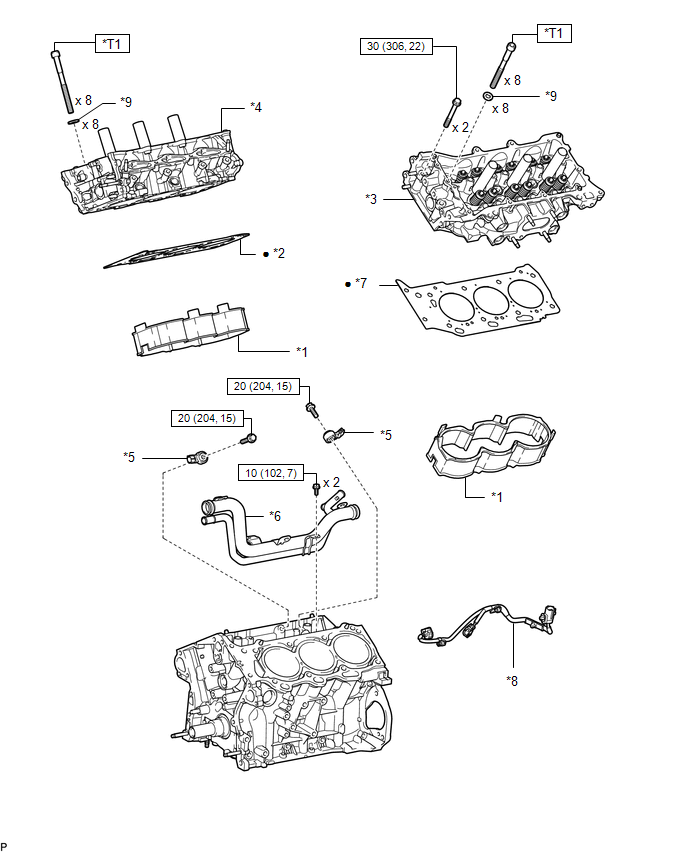

Fig 20: Engine Unit Replacement Components With Torque Specifications (20 Of 20)
GTY829301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CYLINDER BLOCK WATER JACKET SPACER *2 CYLINDER HEAD GASKET
*3 CYLINDER HEAD LH *4 CYLINDER HEAD SUB-ASSEMBLY
*5 KNOCK CONTROL SENSOR *6 NO. 1 WATER OUTLET PIPE
*7 NO. 2 CYLINDER HEAD GASKET *8 NO. 5 ENGINE WIRE
*9 PLATE WASHER - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
*T1 1st: 36 (367, 27)
2nd: Turn 90°
3rd: Turn 90°		 - -
scientia non olet · About LEMON Manuals
