Disassembly [11/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE VALVE

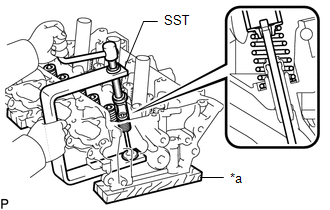

    1. Using SST and wooden blocks, compress the inner compression springs and remove the 6 valve spring retainer locks from the valve spring retainers.
      • SST: 09202-70020
        1. 09202-01010
        2. 09202-01020
      • SST: 09202-00021
      GTY828538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

    2. Remove the 6 valve spring retainers, 6 inner compression springs and 6 intake valves from the cylinder head LH.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

  2. REMOVE EXHAUST VALVE

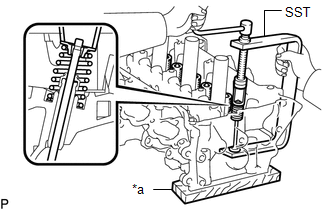

    1. Using SST and wooden blocks, compress the inner compression springs and remove the 6 valve spring retainer locks from the valve spring retainers.
      • SST: 09202-70020
        1. 09202-01010
        2. 09202-01020
      • SST: 09202-00021
      GTY781624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

    2. Remove the 6 valve spring retainers, 6 inner compression springs and 6 exhaust valves from the cylinder head LH.

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

  3. REMOVE INTAKE VALVE STEM OIL SEAL
    1. Using needle-nose pliers, remove the 6 intake valve stem oil seals from the intake valve guide bushes.
      GTY600604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE EXHAUST VALVE STEM OIL SEAL

    HINT:

    Use the same procedure as for the intake side.

  5. REMOVE VALVE SPRING SEAT
    1. Using compressed air and a Magnet Hand, remove the 12 valve spring seats by blowing air onto them from the cylinder head LH.
      GTY552613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Arrange the removed parts in such a way that they can be reinstalled to their original locations.

  6. REMOVE NO. 1 STRAIGHT SCREW PLUG
    NOTE:

    If coolant leaks from a No. 1 straight screw plug or a plug is corroded, replace it.

    1. Using a 10 mm hexagon socket wrench, remove the 4 No. 1 straight screw plugs and 4 water hole gaskets.
      GTY823626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Bank 1
      *B for Bank 2
  7. REMOVE NO. 2 STRAIGHT SCREW PLUG
    NOTE:

    If coolant leaks from a No. 2 straight screw plug or a plug is corroded, replace it.

    1. Using a 14 mm hexagon wrench, remove the 2 No. 2 straight screw plugs and 2 cylinder head screw plug gaskets.
      GTY777948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Bank 1
      *B for Bank 2
  8. REMOVE NO. 3 STRAIGHT SCREW PLUG
    NOTE:

    If coolant leaks from a No. 3 straight screw plug or a plug is corroded, replace it.

    1. Using a 10 mm hexagon socket wrench, remove the 8 No. 3 straight screw plugs and 8 cylinder head screw plug gaskets.
      GTY792449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Bank 1
      *B for Bank 2
  9. REMOVE UNION
    NOTE:

    It is not necessary to remove the union unless it is being replaced.

  10. REMOVE STUD BOLT
    NOTE:

    If the stud bolt is deformed or the threads are damaged, replace it.
