Replacement [11/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REPLACE STRAIGHT PIN
    NOTE:

    If a straight pin is deformed, replace it.

    1. Using a plastic hammer, tap in new straight pins to the cylinder block sub-assembly.
      GTY792534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front Side *b Rear Side
      *c Top Side *d Bottom Side
      *e 36 mm (1.417 in.) *f 22 mm (0.867 in.)
      *g 18 mm (0.709 in.) *h 10 mm (0.394 in.)
      *i 8 mm (0.315 in.) *j 12 mm (0.472 in.)
      *k 4 mm (0.157 in.) - -

      Standard Protrusion Height

      Item Specified Condition
      Pin (A) 22.5 to 23.5 mm (0.886 to 0.925 in.)
      Pin (B) 10.5 to 11.5 mm (0.413 to 0.453 in.)
      Pin (C) 8.5 to 9.5 mm (0.335 to 0.374 in.)
      Pin (D) 5.5 to 6.5 mm (0.217 to 0.256 in.)
  2. REPLACE STUD BOLT
    NOTE:

    If a stud bolt is deformed or its threads are damaged, replace it.

    1. Using an E8 "TORX" socket wrench, install the stud bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

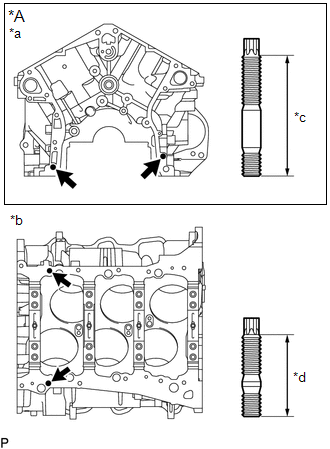

      GTY946748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stud Bolt
      *a Front Side
      *b Lower Side
      *c 52 mm (2.05 in.)
      *d 35 mm (1.38 in.)
