Components [11/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

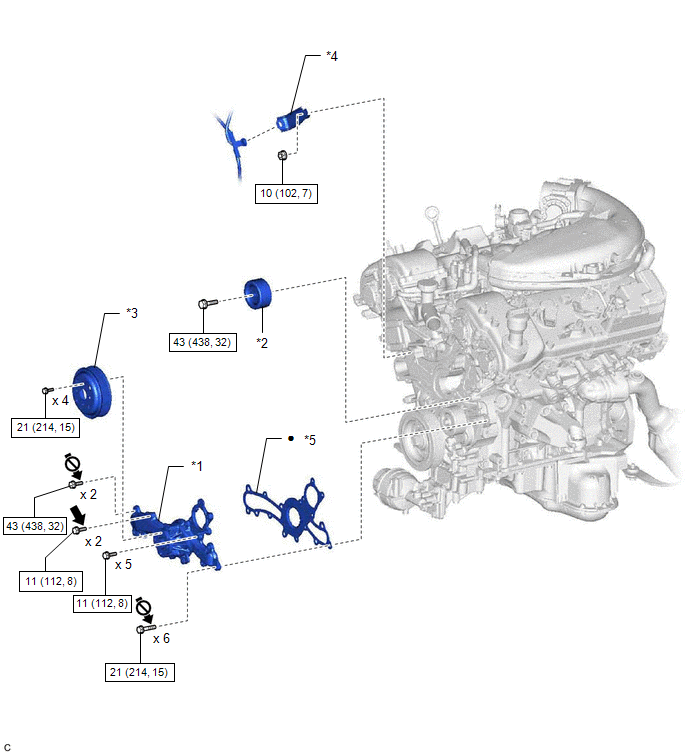

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE WATER PUMP ASSEMBLY | *2 | NO. 2 IDLER PULLEY SUB-ASSEMBLY |
| *3 | WATER PUMP PULLEY | *4 | WIRING HARNESS CLAMP BRACKET |
| *5 | WATER PUMP GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1344 | * | Precoated part | |
| Do not apply lubricants to the threaded parts | - | - |
