Removal [11/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 1 [11/2017 - 10/2018] , or refer to PROCEDURE - Step 1 [10/2018 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2 [11/2017 - 10/2018] , or refer to PROCEDURE - Step 2 [10/2018 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  4. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 19

  5. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 23

  6. DRAIN ENGINE COOLANT

    See step  2

  7. REMOVE NO. 1 RADIATOR HOSE

    See step  11

  8. DISCONNECT ENGINE ROOM MAIN WIRE

    See step  12

  9. REMOVE RADIATOR RESERVE TANK ASSEMBLY

    See step  13

  10. DISCONNECT NO. 2 RADIATOR HOSE SUB-ASSEMBLY

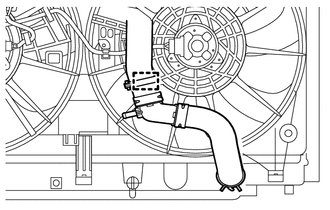

    1. Disengage the clamp to disconnect the No. 2 radiator hose sub-assembly from the radiator hose clamp.
      GTY776603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the radiator hose clamp from the fan shroud assembly.
  11. REMOVE ENGINE ROOM ECU OUTLET DUCT

    See step  17

  12. REMOVE FAN SHROUD ASSEMBLY
    1. Disengage the 3 claws.
      GTY505025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 guides to remove the fan shroud assembly from the radiator assembly.
      NOTE:

      Do not damage the radiator assembly when removing the fan shroud assembly.

  13. REMOVE COOLING FAN ECU
    1. Disconnect the cooling fan motor LH connector and cooling fan motor RH connector.
      GTY519151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 clamps to disconnect the wire harness.
    3. Remove the 2 screws and cooling fan ECU.
  14. REMOVE FAN LH
    1. Remove the nut and fan LH.
      GTY505024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE FAN RH
    1. Remove the nut and fan RH.
      GTY505023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE COOLING FAN MOTOR LH
    1. Remove the 3 screws and cooling fan motor LH.
      GTY505034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE COOLING FAN MOTOR RH
    GTY517831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 screws and cooling fan motor RH.
