Parts Location [09/2020 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

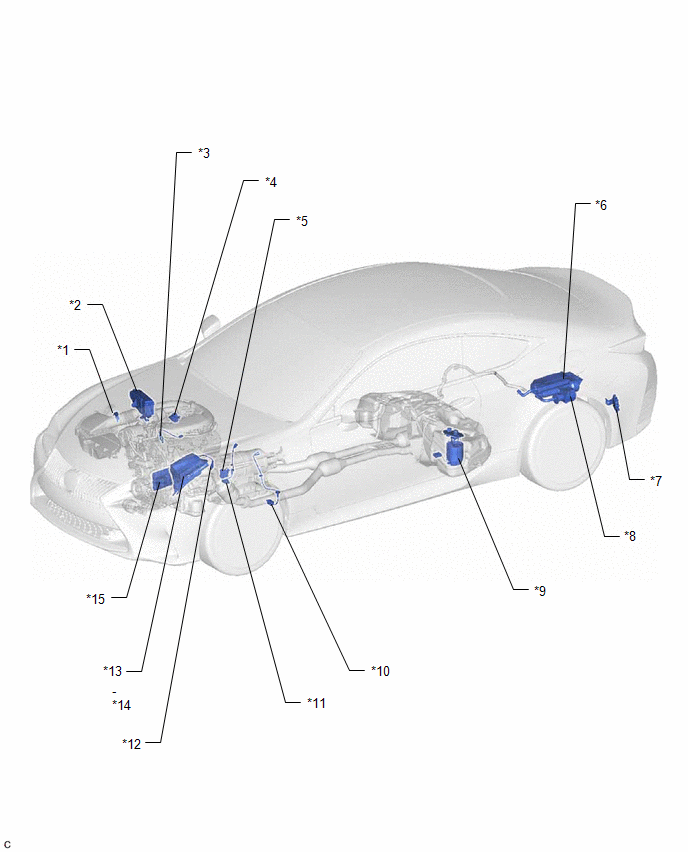

| *1 |
MASS AIR FLOW METER SUB-ASSEMBLY |
*2 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
| *3 |
AIR FUEL RATIO SENSOR (Bank 1 Sensor 1) |
*4 |
PURGE VSV |
| *5 |
PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
*6 |
CANISTER |
| *7 |
FUEL PUMP CONTROL ECU |
*8 |
CANISTER PUMP MODULE |
| *9 |
FUEL PUMP (for Low Pressure Side) |
*10 |
HEATED OXYGEN SENSOR (Bank 2 Sensor 2) |
| *11 |
HEATED OXYGEN SENSOR (Bank 1 Sensor 2) |
*12 |
AIR FUEL RATIO SENSOR (Bank 2 Sensor 1) |
| *13 |
NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY |
*14 |
SEMICONDUCTOR POWER INTEGRATION ECU |
| *15 |
ECM |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

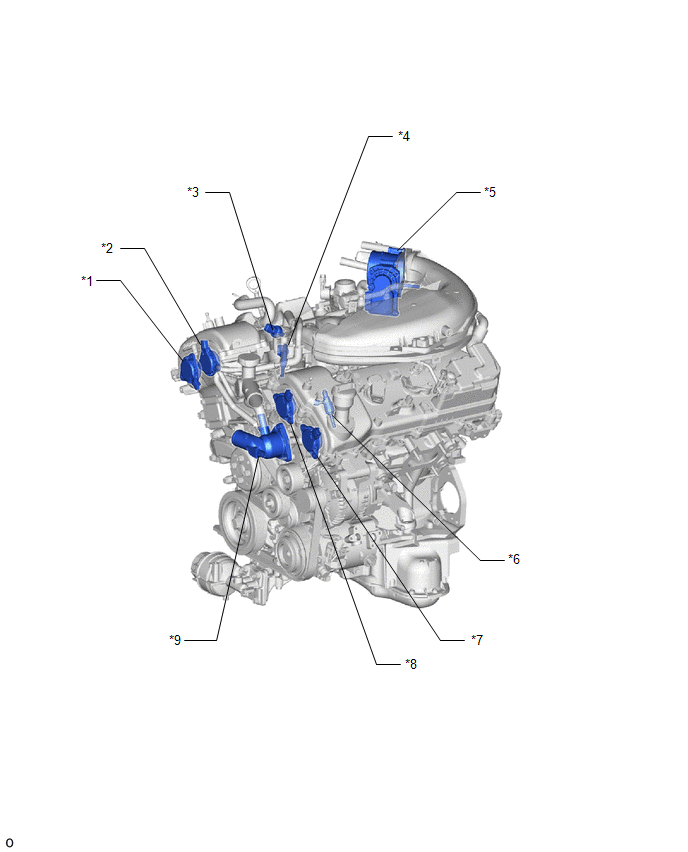

| *1 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Camshaft of Bank 1) |
*2 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Camshaft of Bank 1) |
| *3 |
FUEL PRESSURE SENSOR (for Low Pressure Side) |
*4 |
FUEL INJECTOR ASSEMBLY (for Port Injection) |
| *5 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
*6 |
FUEL INJECTOR ASSEMBLY (for Direct Injection) |
| *7 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Camshaft of Bank 2) |
*8 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Camshaft of Bank 2) |
| *9 |
WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

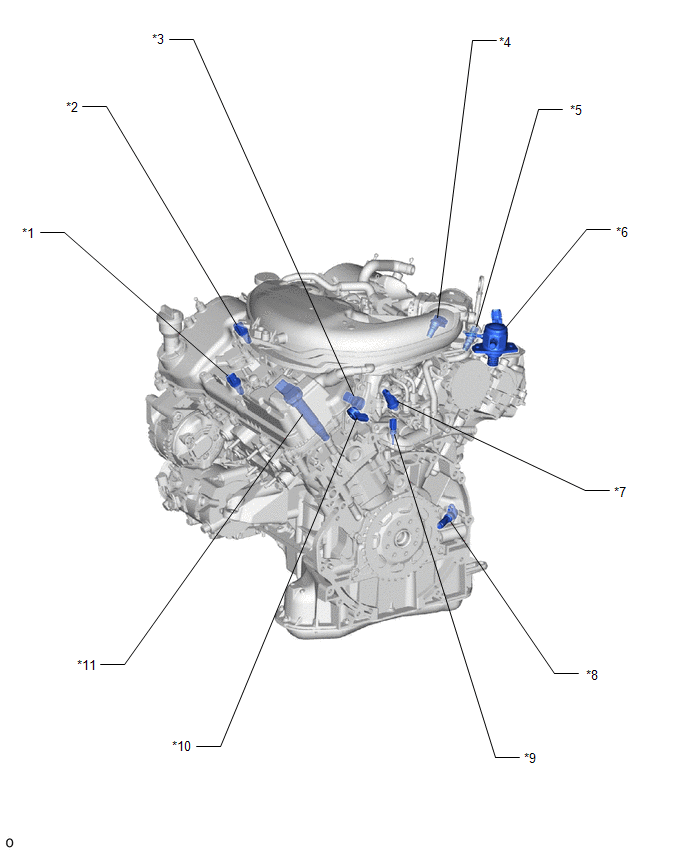

| *1 |
VVT SENSOR (for Exhaust Camshaft of Bank 2) |
*2 |
VVT SENSOR (for Intake Camshaft of Bank 2) |
| *3 |
KNOCK CONTROL SENSOR (Bank 1) |
*4 |
VVT SENSOR (for Intake Camshaft of Bank 1) |
| *5 |
VVT SENSOR (for Exhaust Camshaft of Bank 1) |
*6 |
FUEL PUMP ASSEMBLY (for High Pressure Side) |
| *7 |
FUEL PRESSURE SENSOR (for High Pressure Side) |
*8 |
CRANKSHAFT POSITION SENSOR |
| *9 |
ENGINE COOLANT TEMPERATURE SENSOR |
*10 |
KNOCK CONTROL SENSOR (Bank 2) |
| *11 |
IGNITION COIL ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

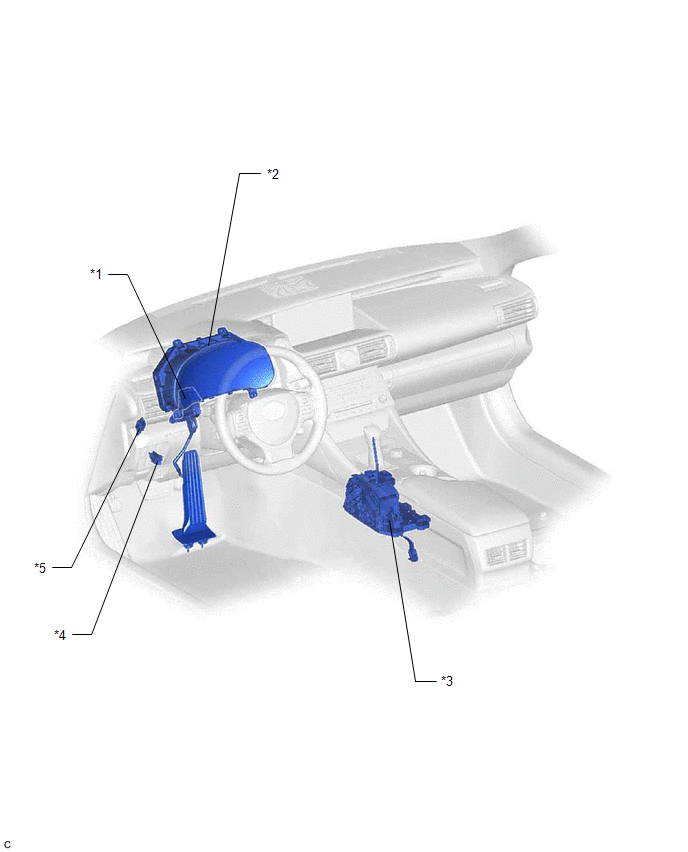

| *1 |
ACCELERATOR PEDAL SENSOR ASSEMBLY |
*2 |
COMBINATION METER ASSEMBLY |
| *3 |
TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY) |
*4 |
DLC3 |
| *5 |
STOP LIGHT SWITCH ASSEMBLY |
- |
- |
