Components [11/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

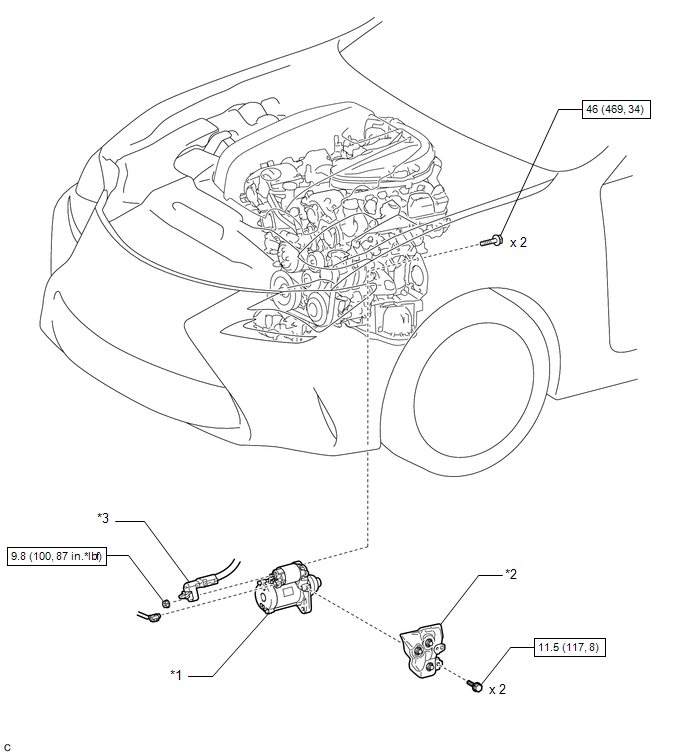

| Callout |
Description |
Callout |
Description |
| *1 |
STARTER ASSEMBLY |
*2 |
STARTER COVER |
| *3 |
TERMINAL CAP |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

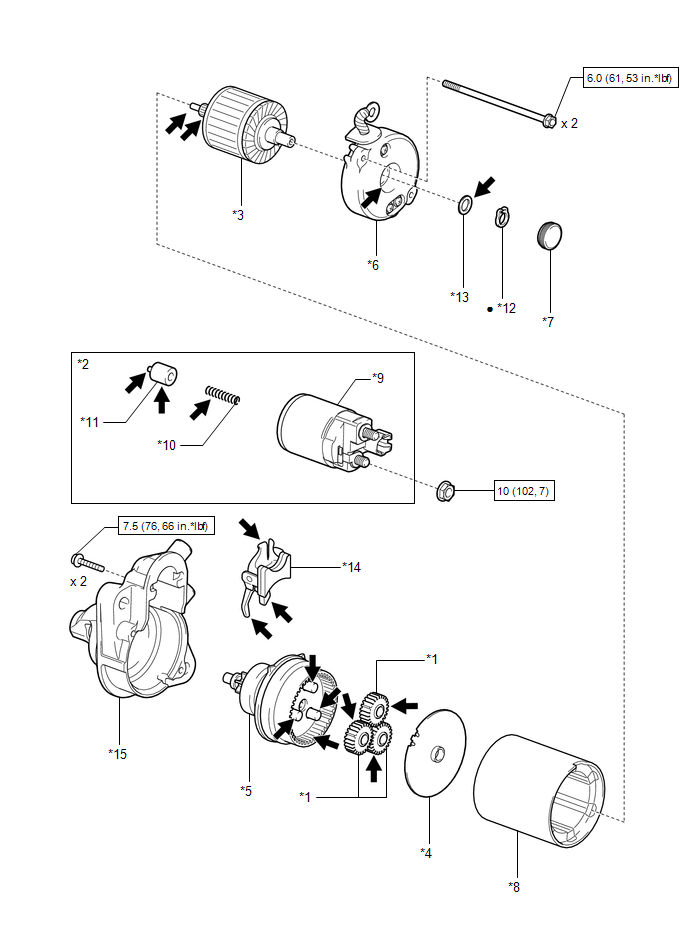

| Callout |
Description |
Callout |
Description |
| *1 |
PLANETARY GEAR |
*2 |
REPAIR SERVICE STARTER KIT |
| *3 |
STARTER ARMATURE ASSEMBLY |
*4 |
STARTER ARMATURE PLATE |
| *5 |
STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY |
*6 |
STARTER COMMUTATOR END FRAME ASSEMBLY |
| *7 |
STARTER COMMUTATOR END FRAME COVER |
*8 |
STARTER YOKE ASSEMBLY |
| *9 |
MAGNET SWITCH |
*10 |
RETURN SPRING |
| *11 |
PLUNGER |
*12 |
SNAP RING |
| *13 |
WASHER |
*14 |
DRIVE LEVER SET PIN |
| *15 |
STARTER DRIVE HOUSING ASSEMBLY |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
High-temperature Grease |
- |
- |
