Removal [11/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 2 [09/2014 - 10/2018] , or refer to PROCEDURE - Step 2 [10/2018 - ]
REMOVE FRONT NO. 1 CONSOLE BOX INSERT
Refer to PROCEDURE - Step 6 [09/2014 - 10/2018] , or refer to PROCEDURE - Step 6 [10/2018 - ]
REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 3
REMOVE FRONT DOOR OPENING TRIM COVER LH
Refer to PROCEDURE - Step 4
REMOVE ACCELERATOR PEDAL ASSEMBLY
- for 8AR-FTS:
  Refer to REMOVAL [10/2015 - ]
- for 2GR-FKS:
  Refer to REMOVAL [11/2017 - ]

REMOVE NO. 3 DASH PANEL INSULATOR PAD

Using a clip remover, remove the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

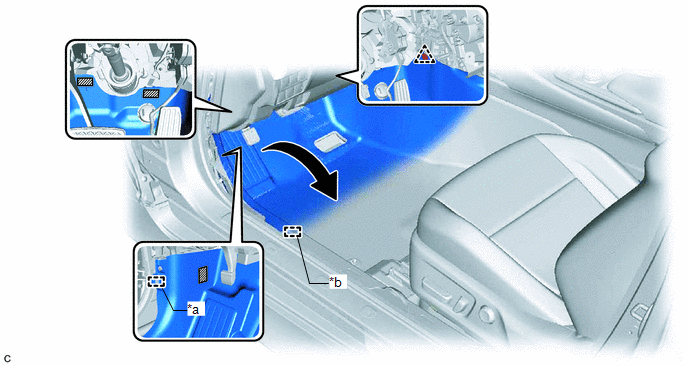

*a	Clamp	*b	Guide
	Fastener	-	-

Disengage the clamp.
Disengage the guide.
Disengage each fastener and turn back the front floor carpet assembly as shown in the illustration.

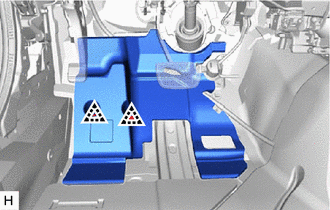

Remove the 2 clips and No. 3 dash panel insulator pad.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

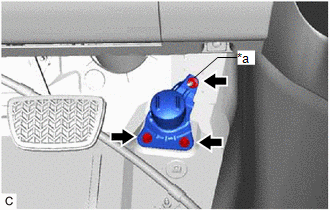

REMOVE KICK DOWN SWITCH ASSEMBLY

Disconnect the kick down switch assembly connector.

Disengage the clamp.

Remove the nut, 2 bolts and kick down switch assembly from the vehicle body.

Nut
