Installation [11/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL KICK DOWN SWITCH ASSEMBLY
1. Install the kick down switch assembly to the vehicle body with the nut and 2 bolts.
  Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)
2. Engage the clamp.
3. Connect the kick down switch assembly connector.

INSTALL NO. 3 DASH PANEL INSULATOR PAD

Install the No. 3 dash panel insulator pad with the 2 clips.

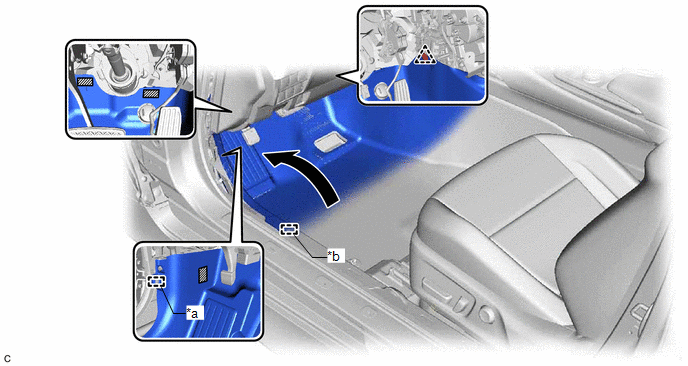

Return the front floor carpet assembly to its original position as shown in the illustration and engage each fastener.

*a	Clamp	*b	Guide
	Fastener	-	-

Engage the guide.
Engage the clamp.
Install the clip.

INSTALL ACCELERATOR PEDAL ASSEMBLY
- for 8AR-FTS:
  Refer to INSTALLATION [10/2015 - ]
- for 2GR-FKS:
  Refer to INSTALLATION [11/2017 - ]
INSTALL FRONT DOOR OPENING TRIM COVER LH
Refer to PROCEDURE - Step 36
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 37
INSTALL FRONT NO. 1 CONSOLE BOX INSERT
Refer to PROCEDURE - Step 7 [09/2014 - 10/2018] , or refer to PROCEDURE - Step 7 [10/2018 - ]
INSTALL INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 11 [09/2014 - 10/2018] , or refer to PROCEDURE - Step 11 [10/2018 - ]
