On-Vehicle Inspection [11/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT INTAKE SYSTEM

    HINT:

    Perform Inspection After Repair after repairing vacuum leaks in the intake system.

    Refer to INITIALIZATION [11/2017 - 10/2018] , or refer to INITIALIZATION [10/2018 - 09/2020] , or refer to INITIALIZATION [09/2020 - ]

    1. Check that there are no vacuum leaks at the points shown in the illustration.

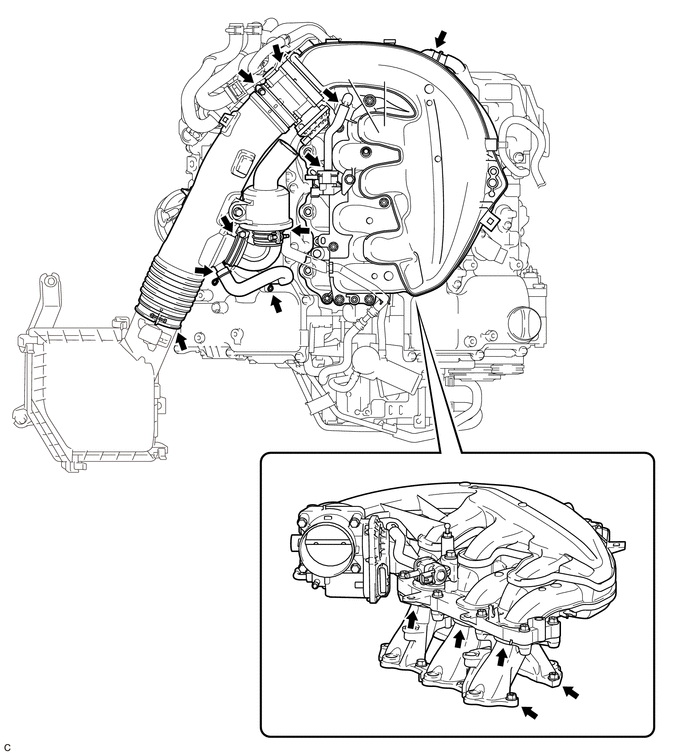

      1. for Intake Air Sound Creator:
        GTY782770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. for Intake Air Resonator:
        GTY783957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PERFORM INITIALIZATION
    1. Perform Inspection After Repair after repairing vacuum leaks in the intake system.

      Refer to INITIALIZATION [11/2017 - 10/2018] , or refer to INITIALIZATION [10/2018 - 09/2020] , or refer to INITIALIZATION [09/2020 - ]
