Components [11/2017 - ]

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

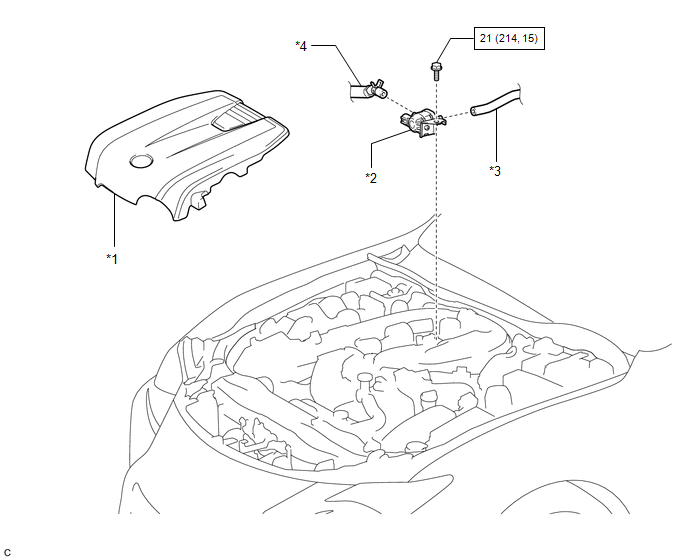

Fig 1: Purge Valve Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	V-BANK COVER SUB-ASSEMBLY	*2	PURGE VALVE (PURGE VSV)
*3	NO. 1 FUEL VAPOR FEED HOSE	*4	NO. 2 FUEL VAPOR FEED HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
