Components [11/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for Full Cover Type |
- |
- |
| *1 |
FRONT CENTER FLOOR COVER LH |
*2 |
FRONT CENTER FLOOR COVER RH |
| *3 |
FRONT CENTER FLOOR BRACE |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

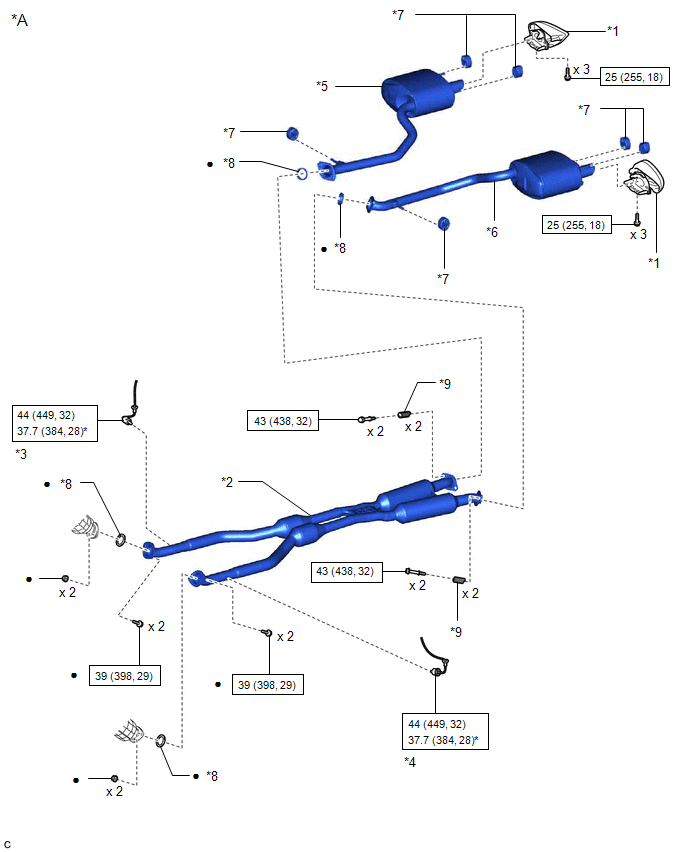

| Callout |
Description |
Callout |
Description |
| *A |
for 2WD |
- |
- |
| *1 |
TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY |
*2 |
FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
| *3 |
HEATED OXYGEN SENSOR (for Bank 1) |
*4 |
HEATED OXYGEN SENSOR (for Bank 2) |
| *5 |
TAIL EXHAUST PIPE ASSEMBLY |
*6 |
TAIL EXHAUST PIPE LH |
| *7 |
EXHAUST PIPE SUPPORT |
*8 |
GASKET |
| *9 |
COMPRESSION SPRING |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

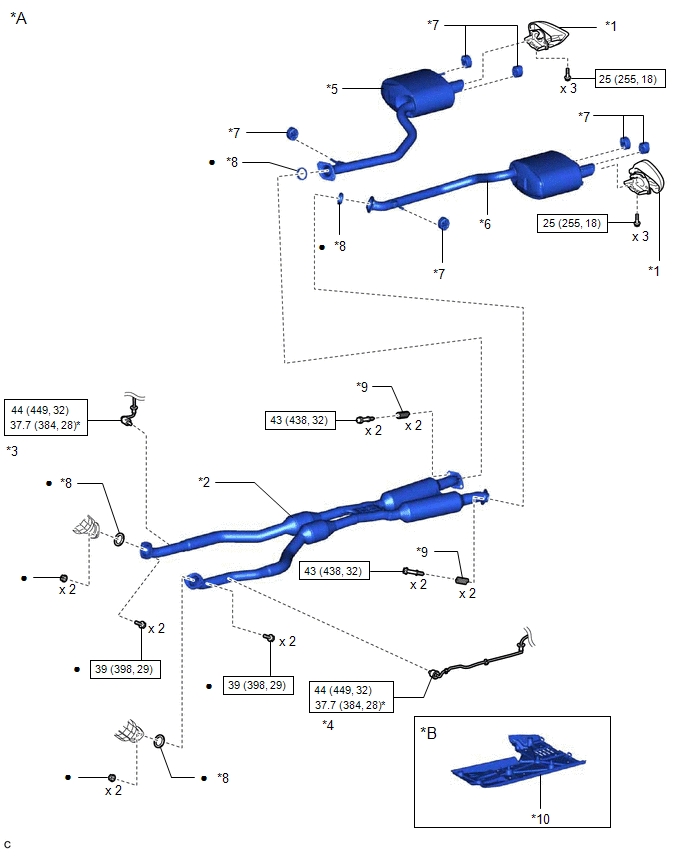

| Callout |
Description |
Callout |
Description |
| *A |
for AWD |
*B |
w/ Front Floor Cover LH |
| *1 |
TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY |
*2 |
FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
| *3 |
HEATED OXYGEN SENSOR (for Bank 1) |
*4 |
HEATED OXYGEN SENSOR (for Bank 2) |
| *5 |
TAIL EXHAUST PIPE ASSEMBLY |
*6 |
TAIL EXHAUST PIPE LH |
| *7 |
EXHAUST PIPE SUPPORT |
*8 |
GASKET |
| *9 |
COMPRESSION SPRING |
*10 |
FRONT FLOOR COVER LH |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
- |
- |
