Removal [11/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
- for 2WD:
  Refer to REMOVAL [11/2017 - ]
- for AWD:
  Refer to REMOVAL [11/2017 - 11/2021] , or refer to REMOVAL [11/2021 - ]

REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.
NOTE:
- Using height adjustment attachments and plate lift attachments, keep the engine assembly level.
- To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly.
- Using an engine sling device and engine lift, secure the engine assembly before servicing.

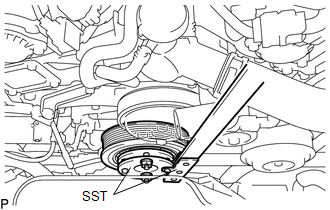

Using SST, hold the crankshaft pulley.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09213-70011
1. 09213-70020
SST: 09330-00021

Remove the 8 bolts, the rear drive plate spacer, the drive plate and ring gear sub-assembly and crank angle sensor plate.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR ENGINE OIL SEAL

Using a knife, cut through the rear engine oil seal.

*a	Cut Position
*b	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, pry out the rear engine oil seal.
NOTE:
Be careful not to damage the crankshaft.
