Components [11/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

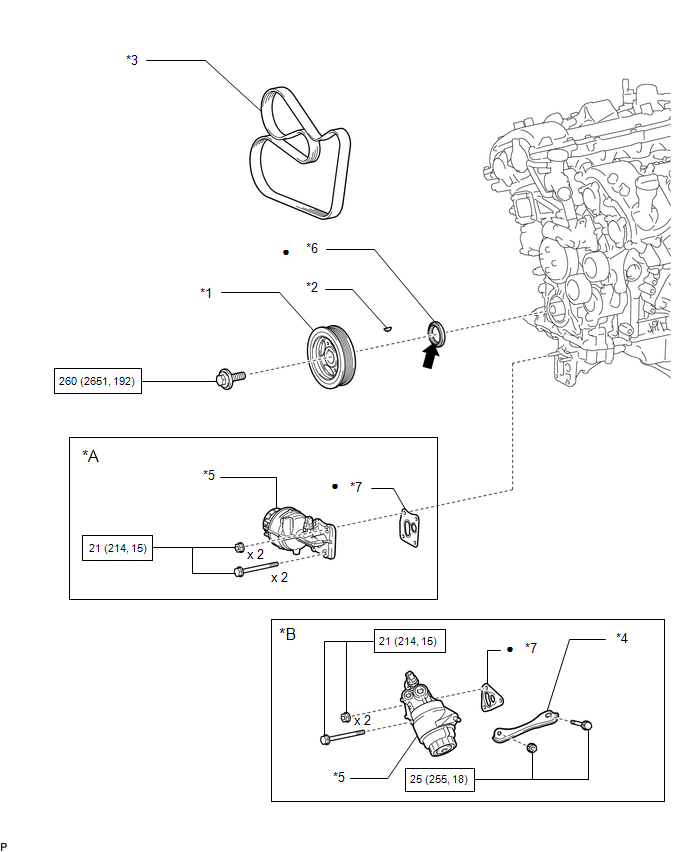

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | *B | for AWD |
| *1 | CRANKSHAFT PULLEY | *2 | CRANKSHAFT TIMING GEAR KEY |
| *3 | V-RIBBED BELT | *4 | OIL FILTER BRACKET |
| *5 | OIL FILTER BRACKET SUB-ASSEMBLY | *6 | TIMING CHAIN CASE OIL SEAL |
| *7 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
