Components [11/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

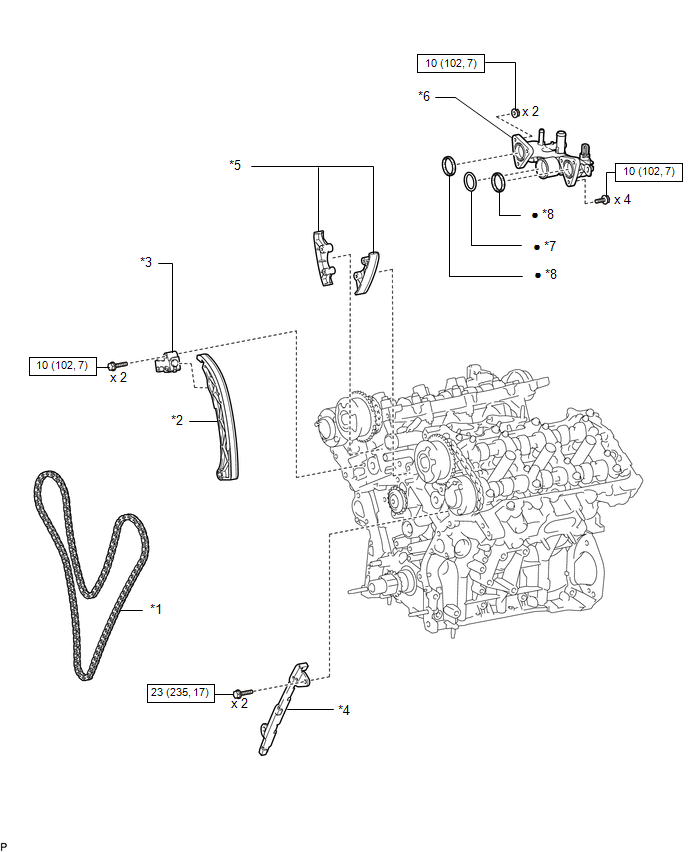

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CHAIN SUB-ASSEMBLY |
*2 |
CHAIN TENSIONER SLIPPER |
| *3 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
*4 |
NO. 1 CHAIN VIBRATION DAMPER |
| *5 |
NO. 2 CHAIN VIBRATION DAMPER |
*6 |
REAR WATER BY-PASS JOINT |
| *7 |
O-RING |
*8 |
WATER BY-PASS JOINT GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |

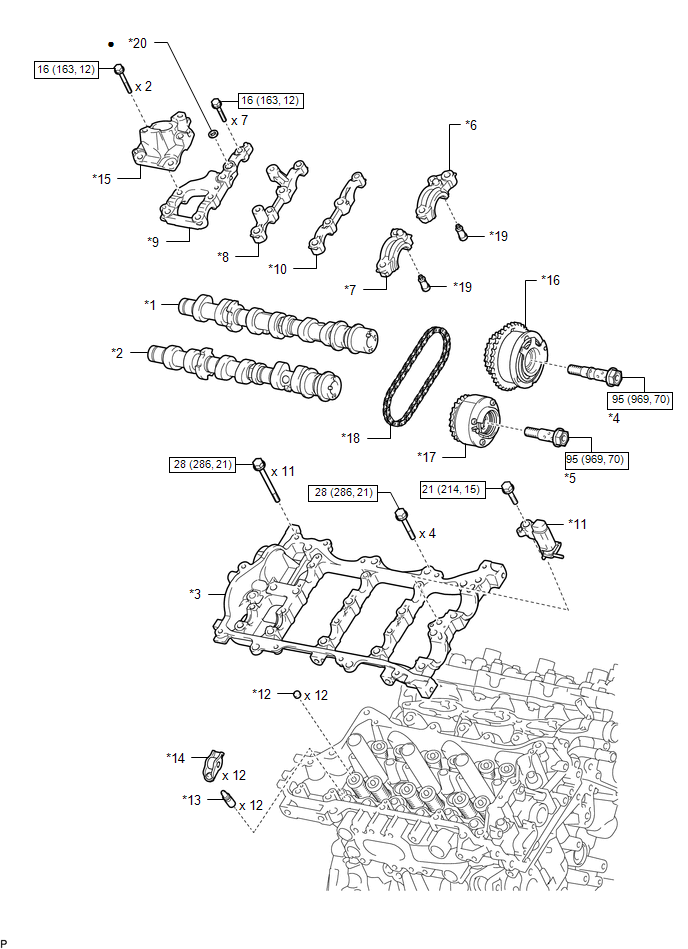

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT |
*2 |
NO. 2 CAMSHAFT |
| *3 |
CAMSHAFT HOUSING SUB-ASSEMBLY RH |
*4 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1) |
| *5 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1) |
*6 |
NO. 1 CAMSHAFT BEARING CAP |
| *7 |
NO. 2 CAMSHAFT BEARING CAP |
*8 |
NO. 5 CAMSHAFT BEARING CAP |
| *9 |
NO. 6 CAMSHAFT BEARING CAP |
*10 |
NO. 8 CAMSHAFT BEARING CAP |
| *11 |
NO. 2 CHAIN TENSIONER ASSEMBLY |
*12 |
VALVE STEM CAP |
| *13 |
VALVE LASH ADJUSTER ASSEMBLY |
*14 |
NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
| *15 |
FUEL PUMP LIFTER HOUSING |
*16 |
CAMSHAFT TIMING GEAR ASSEMBLY |
| *17 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY RH |
*18 |
NO. 2 CHAIN SUB-ASSEMBLY |
| *19 |
OIL CONTROL VALVE FILTER RH |
*20 |
GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |

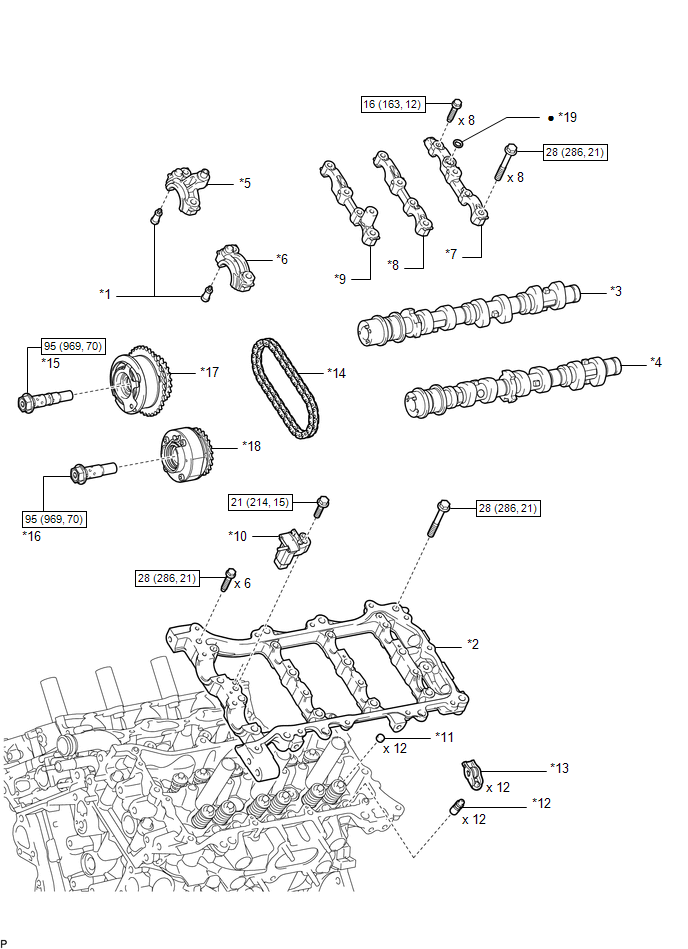

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
OIL CONTROL VALVE FILTER LH |
*2 |
CAMSHAFT HOUSING SUB-ASSEMBLY LH |
| *3 |
NO. 3 CAMSHAFT SUB-ASSEMBLY |
*4 |
NO. 4 CAMSHAFT SUB-ASSEMBLY |
| *5 |
NO. 3 CAMSHAFT BEARING CAP |
*6 |
NO. 4 CAMSHAFT BEARING CAP |
| *7 |
NO. 7 CAMSHAFT BEARING CAP |
*8 |
NO. 8 CAMSHAFT BEARING CAP |
| *9 |
NO. 9 CAMSHAFT BEARING CAP |
*10 |
NO. 3 CHAIN TENSIONER ASSEMBLY |
| *11 |
VALVE STEM CAP |
*12 |
VALVE LASH ADJUSTER ASSEMBLY |
| *13 |
NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
*14 |
NO. 2 CHAIN SUB-ASSEMBLY |
| *15 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) |
*16 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) |
| *17 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*18 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY LH |
| *19 |
GASKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |

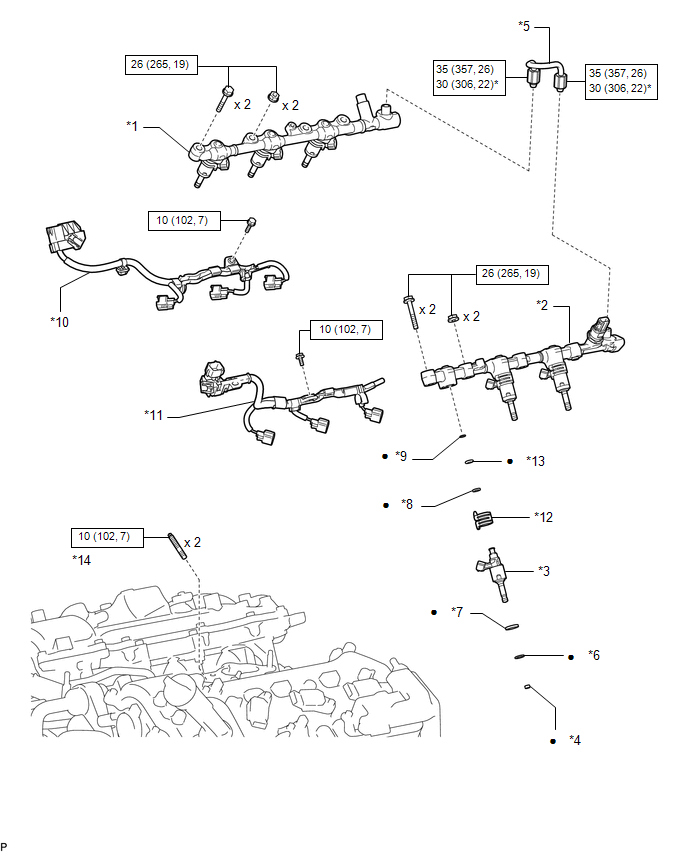

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FUEL DELIVERY PIPE RH |
*2 |
FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH |
| *3 |
FUEL INJECTOR ASSEMBLY |
*4 |
FUEL INJECTOR SEAL |
| *5 |
NO. 2 FUEL PIPE SUB-ASSEMBLY |
*6 |
C-RING |
| *7 |
INJECTOR VIBRATION INSULATOR |
*8 |
NO. 1 FUEL INJECTOR BACK-UP RING |
| *9 |
NO. 3 FUEL INJECTOR BACK-UP RING |
*10 |
NO. 6 ENGINE WIRE |
| *11 |
NO. 7 ENGINE WIRE |
*12 |
NOZZLE HOLDER CLAMP |
| *13 |
O-RING |
*14 |
STUD BOLT |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with union nut wrench |
| • |
Non-reusable part |
- |
- |

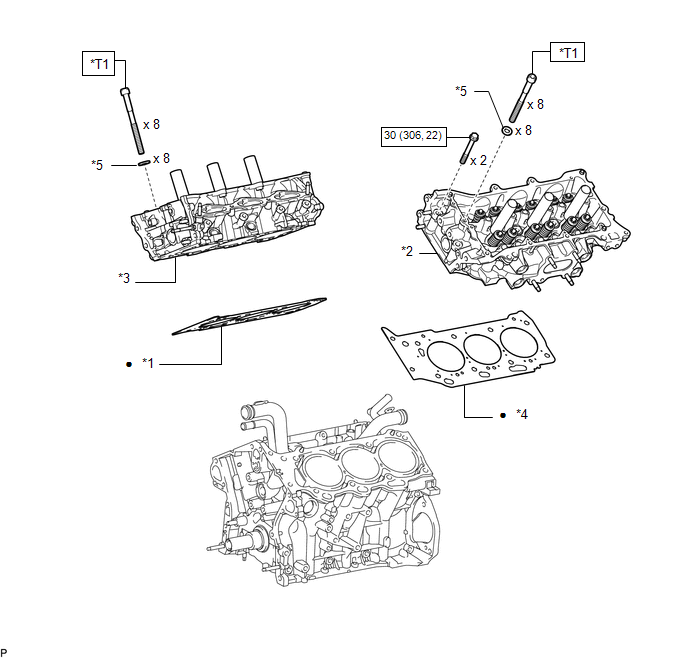

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CYLINDER HEAD GASKET |
*2 |
CYLINDER HEAD LH |
| *3 |
CYLINDER HEAD SUB-ASSEMBLY |
*4 |
NO. 2 CYLINDER HEAD GASKET |
| *5 |
CYLINDER HEAD PLATE WASHER |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
| *T1 |
1st: 36 (367, 27)
2nd: Turn 90°
3rd: Turn 90° |
- |
- |
