Components [11/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

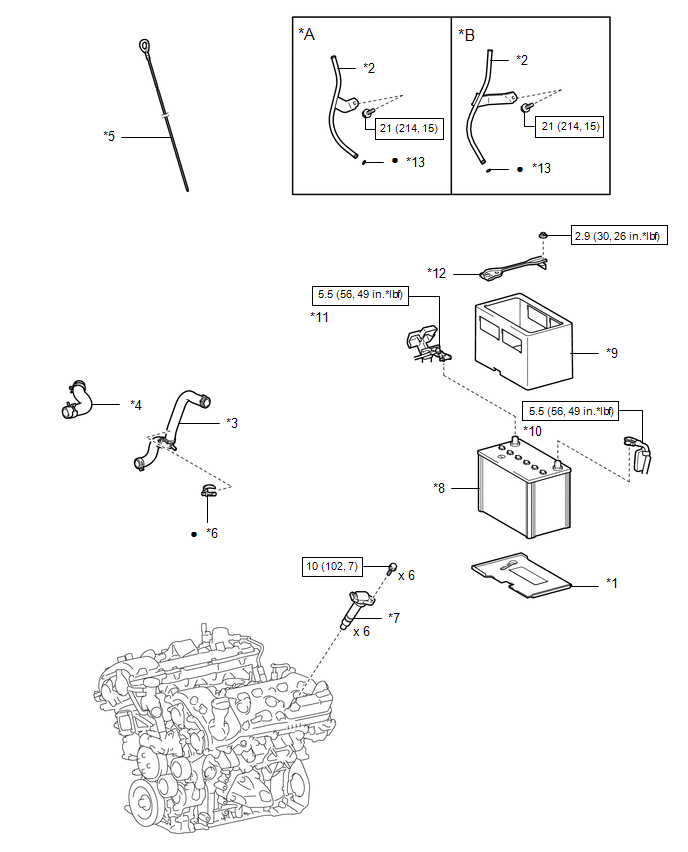

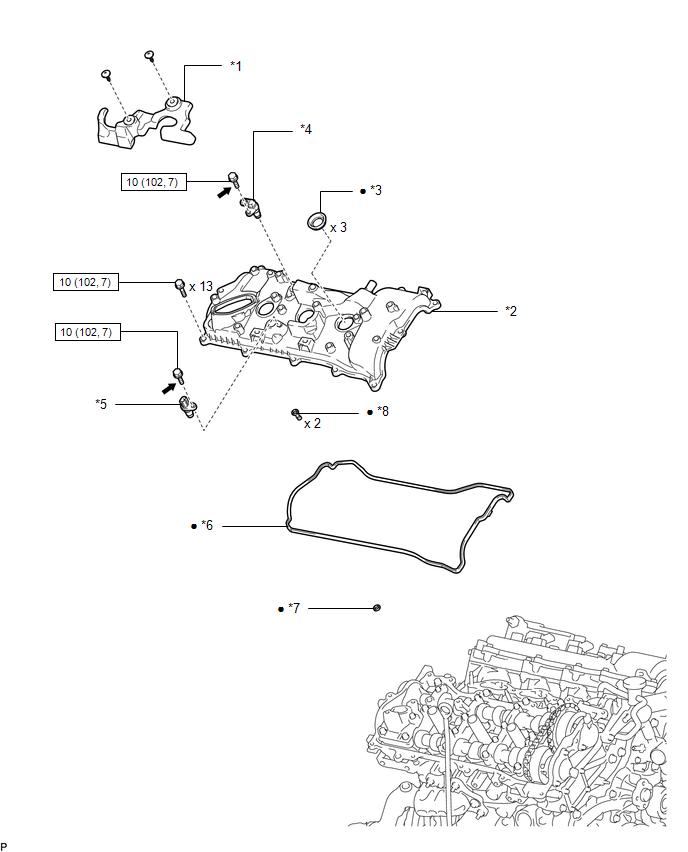

| Callout |
Description |
Callout |
Description |
| *A |
for 2WD |
*B |
for AWD |
| *1 |
NO. 1 BATTERY TRAY SUPPORT |
*2 |
NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE |
| *3 |
NO. 2 RADIATOR HOSE SUB-ASSEMBLY |
*4 |
NO. 1 RADIATOR HOSE |
| *5 |
ENGINE OIL LEVEL DIPSTICK |
*6 |
RADIATOR HOSE CLAMP |
| *7 |
IGNITION COIL ASSEMBLY |
*8 |
BATTERY |
| *9 |
BATTERY INSULATOR |
*10 |
NEGATIVE BATTERY CABLE |
| *11 |
POSITIVE BATTERY CABLE |
*12 |
BATTERY CLAMP |
| *13 |
O-RING |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

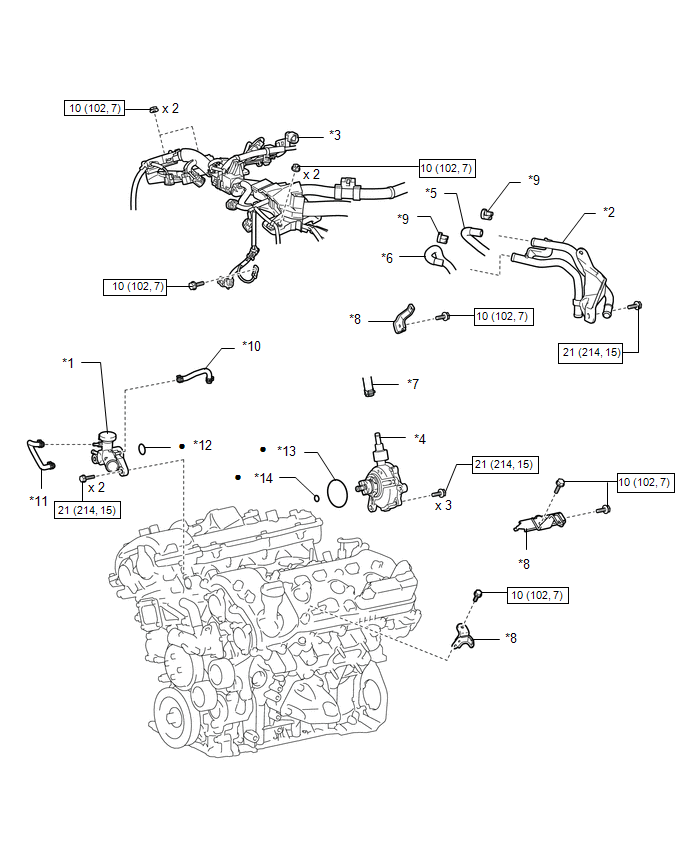

| Callout |
Description |
Callout |
Description |
| *1 |
WATER OUTLET SUB-ASSEMBLY |
*2 |
NO. 2 WATER BY-PASS PIPE |
| *3 |
WIRE HARNESS |
*4 |
VACUUM PUMP ASSEMBLY |
| *5 |
OUTLET HEATER WATER HOSE A |
*6 |
INLET HEATER WATER HOSE A |
| *7 |
UNION TO CONNECTOR TUBE HOSE |
*8 |
WIRE HARNESS CLAMP BRACKET |
| *9 |
WATER HOSE SET |
*10 |
NO. 2 WATER BY-PASS HOSE |
| *11 |
NO. 6 WATER BY-PASS HOSE |
*12 |
O-RING |
| *13 |
NO. 2 O-RING |
*14 |
NO. 3 O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

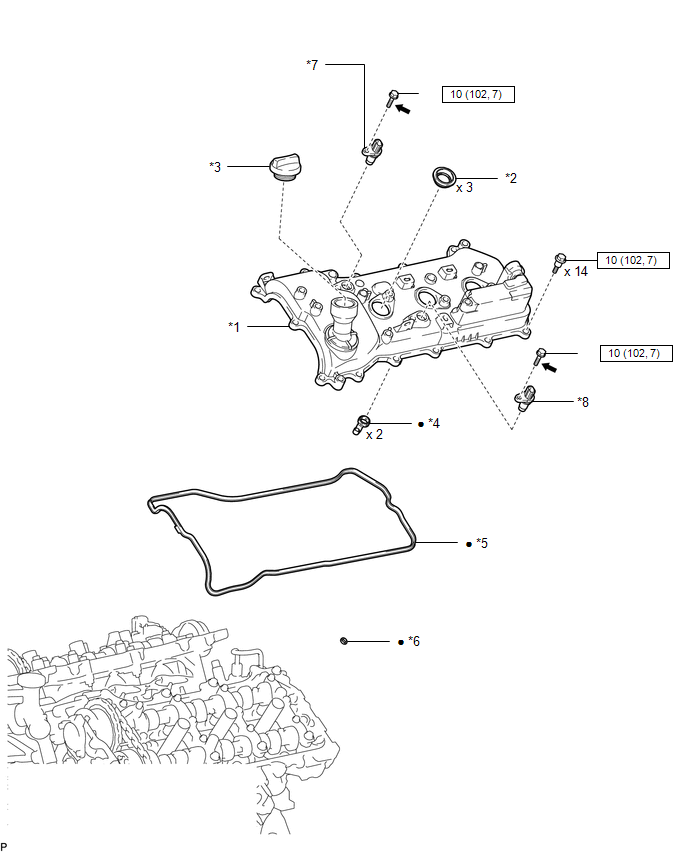

| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*2 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
| *3 |
SPARK PLUG TUBE GASKET |
*4 |
VVT SENSOR (for Intake Side of Bank 1) |
| *5 |
VVT SENSOR (for Exhaust Side of Bank 1) |
*6 |
CYLINDER HEAD COVER GASKET |
| *7 |
CAMSHAFT BEARING CAP OIL HOLE GASKET RH |
*8 |
GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CYLINDER HEAD COVER SUB-ASSEMBLY LH |
*2 |
SPARK PLUG TUBE GASKET |
| *3 |
OIL FILLER CAP SUB-ASSEMBLY |
*4 |
GASKET |
| *5 |
CYLINDER HEAD COVER GASKET |
*6 |
CAMSHAFT BEARING CAP OIL HOLE GASKET LH |
| *7 |
VVT SENSOR (for Intake Side of Bank 2) |
*8 |
VVT SENSOR (for Exhaust Side of Bank 2) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

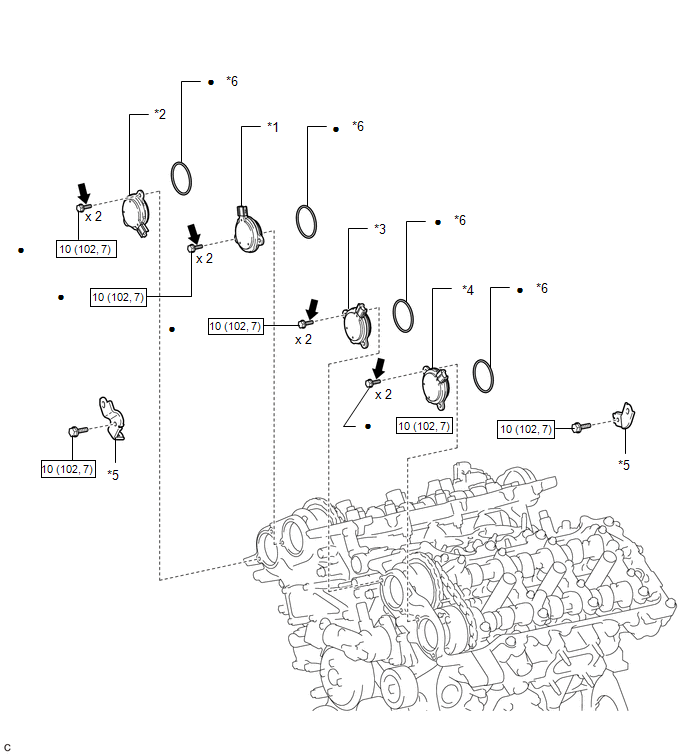

| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) |
| *3 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) |
*4 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) |
| *5 |
WIRE HARNESS CLAMP BRACKET |
*6 |
O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

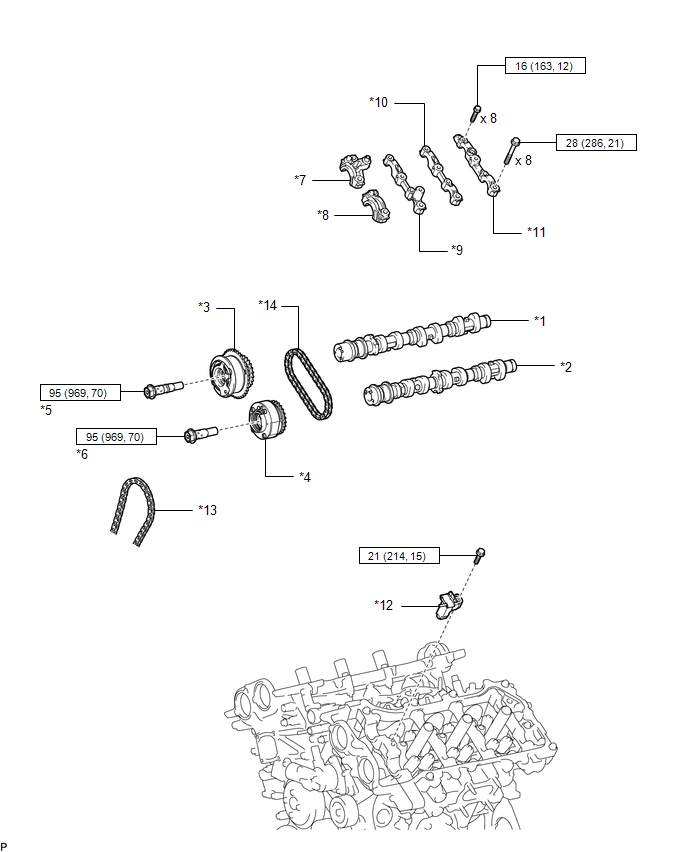

| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT |
*2 |
NO. 2 CAMSHAFT |
| *3 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*4 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY RH |
| *5 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1) |
*6 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1) |
| *7 |
NO. 1 CAMSHAFT BEARING CAP |
*8 |
NO. 2 CAMSHAFT BEARING CAP |
| *9 |
NO. 5 CAMSHAFT BEARING CAP |
*10 |
NO. 6 CAMSHAFT BEARING CAP |
| *11 |
NO. 8 CAMSHAFT BEARING CAP |
*12 |
TIMING CHAIN COVER PLATE |
| *13 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
*14 |
NO. 2 CHAIN TENSIONER ASSEMBLY |
| *15 |
CHAIN SUB-ASSEMBLY |
*16 |
FUEL PUMP LIFTER HOUSING |
| *17 |
TIMING GEAR OR CHAIN COVER GASKET |
*18 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 1) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

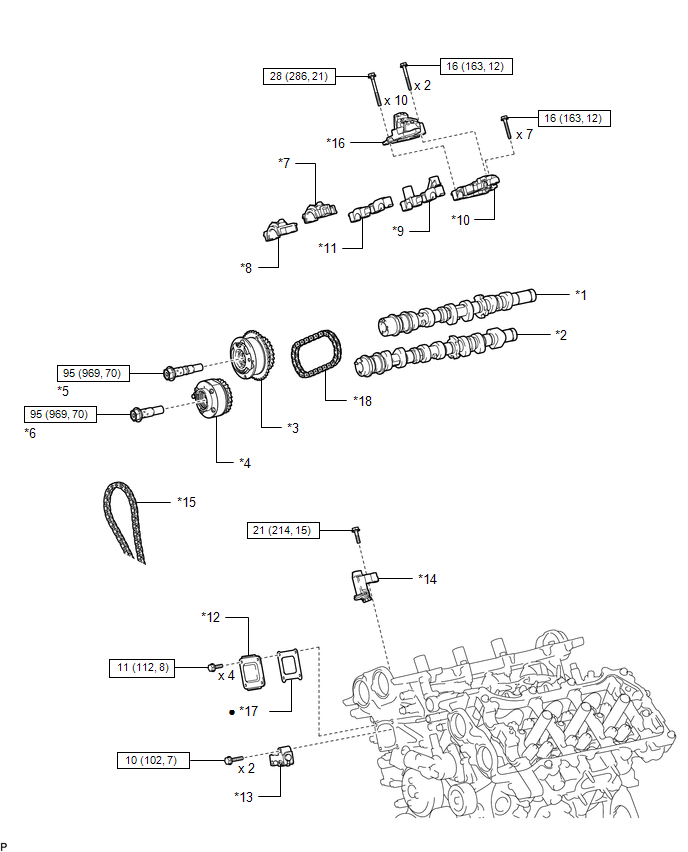

| Callout |
Description |
Callout |
Description |
| *1 |
NO. 3 CAMSHAFT SUB-ASSEMBLY |
*2 |
NO. 4 CAMSHAFT SUB-ASSEMBLY |
| *3 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*4 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY LH |
| *5 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) |
*6 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) |
| *7 |
NO. 3 CAMSHAFT BEARING CAP |
*8 |
NO. 4 CAMSHAFT BEARING CAP |
| *9 |
NO. 7 CAMSHAFT BEARING CAP |
*10 |
NO. 8 CAMSHAFT BEARING CAP |
| *11 |
NO. 9 CAMSHAFT BEARING CAP |
*12 |
NO. 3 CHAIN TENSIONER ASSEMBLY |
| *13 |
CHAIN SUB-ASSEMBLY |
*14 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
